Adjusting ring 849982

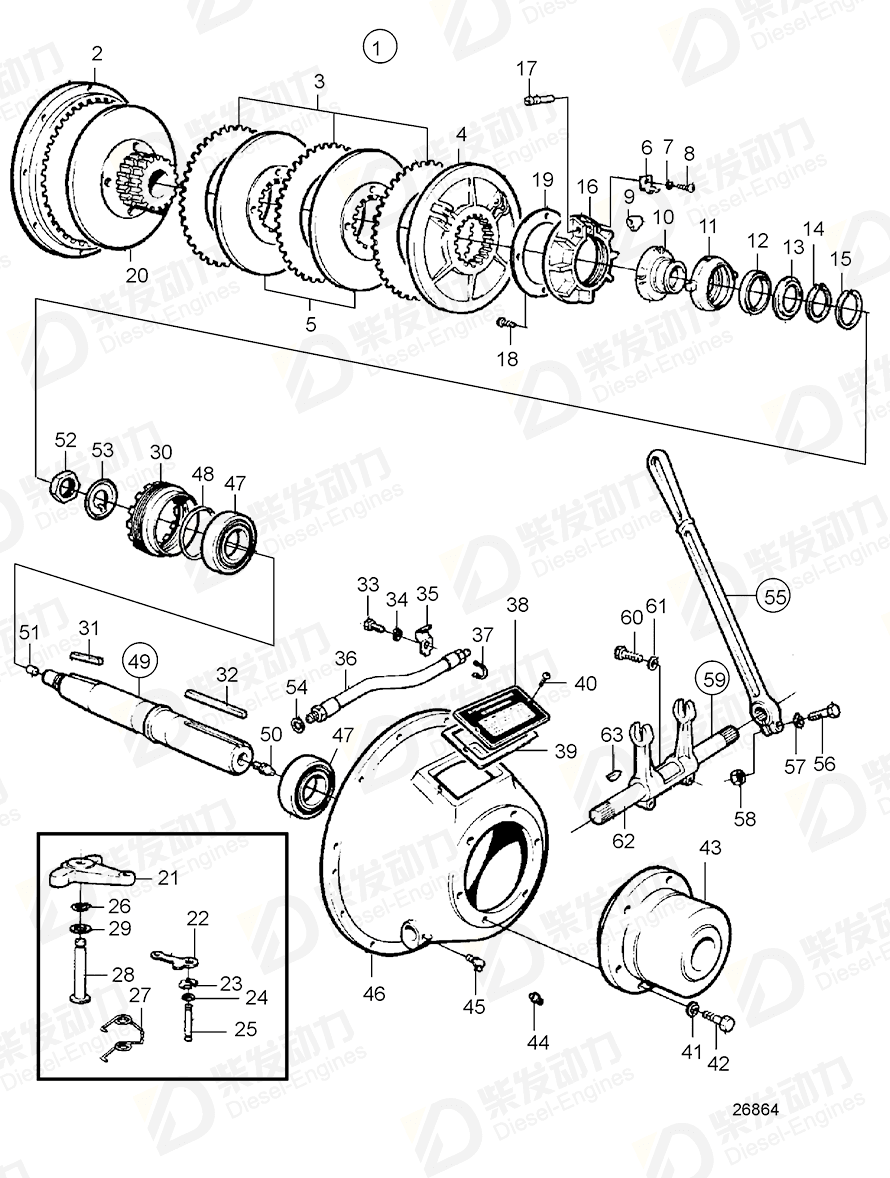

| No. | Part Name | Part Number | Qty | Description |
| 1 | Power take-off | 3841933 | 1 | Replaced by PT143 no 3841933., AP314, ratio 1:1 |
| 2 | Drive ring | 847729 | 1 | |
| 3 | Disc | 862582 | 3 | |
| 4 | Pressure plate | 846531 | 1 | |
| 5 | Spacer | 846560 | 2 | |
| 6 | Lock spring | 846525 | 1 | |
| 7 | Spring washer | 846528 | 1 | |
| 8 | Screw | 846527 | 1 | |
| 10 | Sleeve | 847725 | 1 | |
| 11 | Bearing housing | 847724 | 1 | |
| 12 | Bearing | 847723 | 1 | |
| 13 | Retainer | 847726 | 1 | |
| 14 | Striker plate | 847727 | 1 | |
| 15 | Striker plate | 847728 | 1 | |
| 16 | Adjusting ring | 849982 | 1 | |
| 17 | Lock screw | 846506 | 1 | |
| 18 | Screw | 846530 | 3 | |
| 19 | Adjusting plate | 846529 | 2 | |
| 20 | Drive plate | 846561 | 1 | |
| 21 | Release arm | 846532 | 4 | |
| 22 | Link | 846537 | 8 | |
| 23 | Striker plate | 846501 | 16 | |
| 24 | Washer | 846502 | 16 | |
| 25 | Pin | 846538 | 8 | |
| 27 | Spring | 846536 | 4 | |
| 28 | Pin | 846533 | 4 | |
| 29 | Washer | 846534 | 8 | |
| 30 | Retainer | 846553 | 1 | |
| 31 | Key | 847735 | 1 | |
| 32 | Key | 863021 | 1 | |
| 33 | Screw | 847737 | 1 | |
| 34 | Spring washer | 941907 | 1 | |
| 35 | Striker plate | 846487 | 1 | |
| 36 | Lubricating hose | 846488 | 1 | |
| 37 | Lock ring | 846493 | 1 | |
| 42 | Screw | 847730 | 6 | |
| 43 | Bearing housing | 847731 | 1 | |
| 45 | Lubricating nipple | 846497 | 2 | |
| 47 | Roller bearing, compl. | 183704 | 2 | |
| 48 | Lock ring | 847736 | 1 | |
| 49 | Shaft | 863015 | 1 | |
| 52 | Nut | 847733 | 1 | |
| 53 | Lock washer | 847734 | 1 | |
| 54 | Lock washer | 846557 | 1 | |
| 55 | Hand lever | 846508 | 1 | |
| 58 | Nut | 846510 | 1 | |
| 59 | Fork | 847916 | 1 | |
| 62 | Shaft | 6603896 | 1 | |
| 63 | Key | 6603893 | 2 |
| Item | Part Name | Part No. |
| 16 | Adjusting ring 849982 | 849982 |
| Details | |
| Engine model | TAD1030P TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD1630V, TWD1630V TAD1641VE, TAD1642VE, TAD1643VE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TD121G-87, TWD1210V, TWD1211V TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121GP-87, TWD1210P, TWD1211P TWD1030ME TWD1240VE, TAD1241VE, TAD1242VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE |
| Application | CLUTCH Clutch AP314, Components Clutch: 842520 Clutch: 846730 Clutch: 862733 Clutch: 862734 Friction Clutch AP214 |
