Clutch half 820594

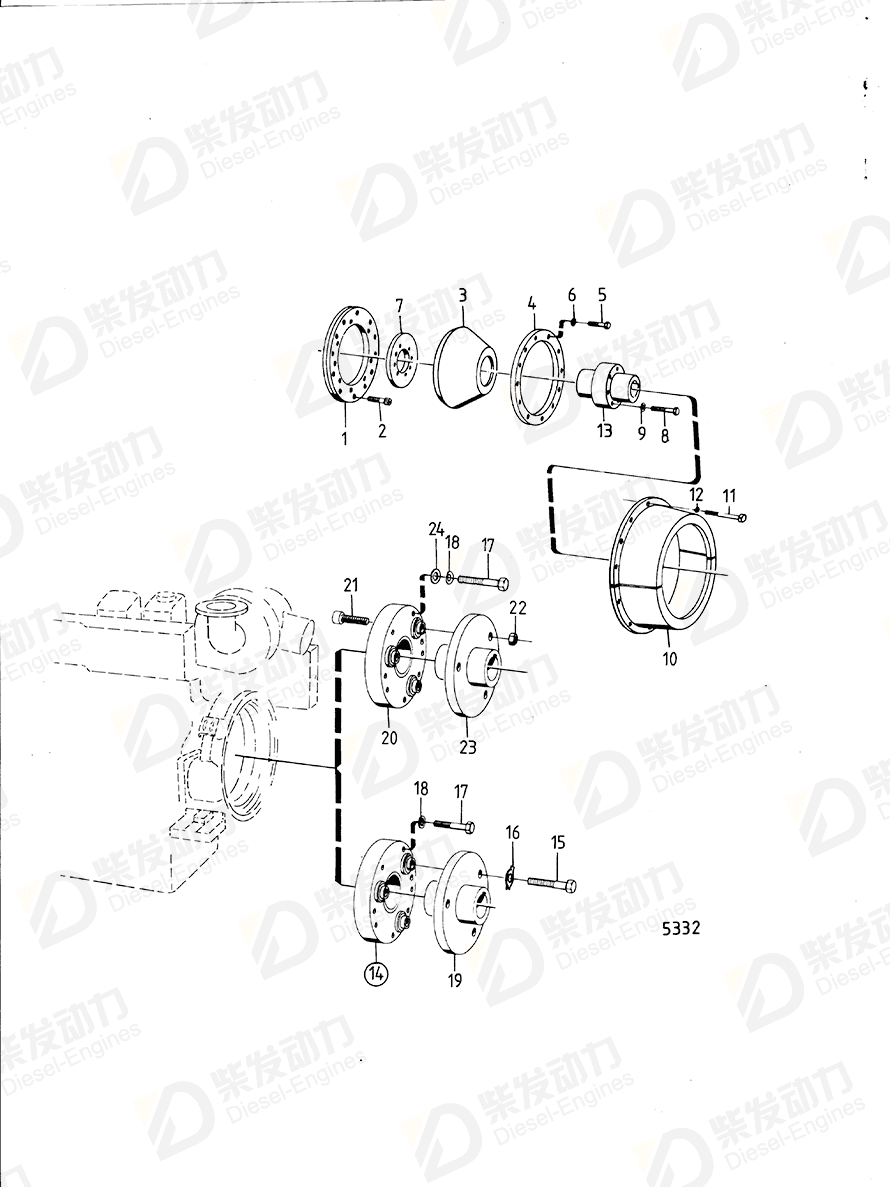

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Attaching plate |
820678 |
1 |
|
| 2 |
Hex. socket screw |
956587 |
8 |
|
| 3 |
Companion flange |
807987 |
1 |
|
| 4 |
Clamping ring |
801711 |
1 |
|
| 5 |
Hexagon screw |
940162 |
12 |
MO-XXXXX/105194 |
| 6 |
Spring washer |
942336 |
12 |
|
| 7 |
Clamping ring |
802180 |
1 |
|
| 8 |
Hexagon screw |
955368 |
8 |
|
| 9 |
Spring washer |
941912 |
8 |
|
| 10 |
Protecting casing |
898426 |
2 |
|
| 11 |
Hexagon screw |
955540 |
12 |
MOXXXXX/105195- |
| 12 |
Spring washer |
942336 |
12 |
|
| 13 |
Blank |
802962 |
1 |
PRE-DRILLED 38 MM |
| 15 |
Screw |
899675 |
3 |
MD1B spec 867001, 867002, 867140, 867141. MD2B spec 867007, 867007, 867008, 867120, 867143, 867144. MD3B spec 9981., Early type |
| 16 |
Lock washer |
899676 |
3 |
MD1B spec 867001, 867002, 867140, 867141. MD2B spec 867007, 867007, 867008, 867120, 867143, 867144. MD3B spec 9981., Early type |
| 17 |
Hexagon screw |
955541 |
8 |
|
| 18 |
Spring washer |
942336 |
8 |
|
| 19 |
Clutch half |
820590 |
1 |
MD3B spec 867146., Early type spec.9929 |
| 19 |
Clutch half |
820594 |
1 |
Pre-drilled 38mm., Early type |
| 20 |
Clutch |
823358 |
1 |
Is not included in clutch 849716 complete, 11 1/2''- Borg & Beck BB211, THD SER.62531., Late type |
| 21 |
Screw |
824471 |
3 |
Is not included in clutch 849716 complete, Late type |
| 22 |
Lock nut |
824472 |
3 |
Is not included in clutch 849716 complete, Late type |
| 23 |
Clutch half |
823382 |
1 |
Is not included in clutch 849716 complete |
| 24 |
Washer |
940097 |
6 |
|
| Item |
Part Name |
Part No. |
| 19 |
Clutch half 820594 |
820594 |
| Details |
| Engine model |
D70B |
| Application |
Flexible Coupling and Installation Components: A |
| Specification |
| Descriptions |
Pre-drilled 38mm., Early type |
Tags:
Clutch half,
Volvo Penta,
820594
