Flange screw 946472

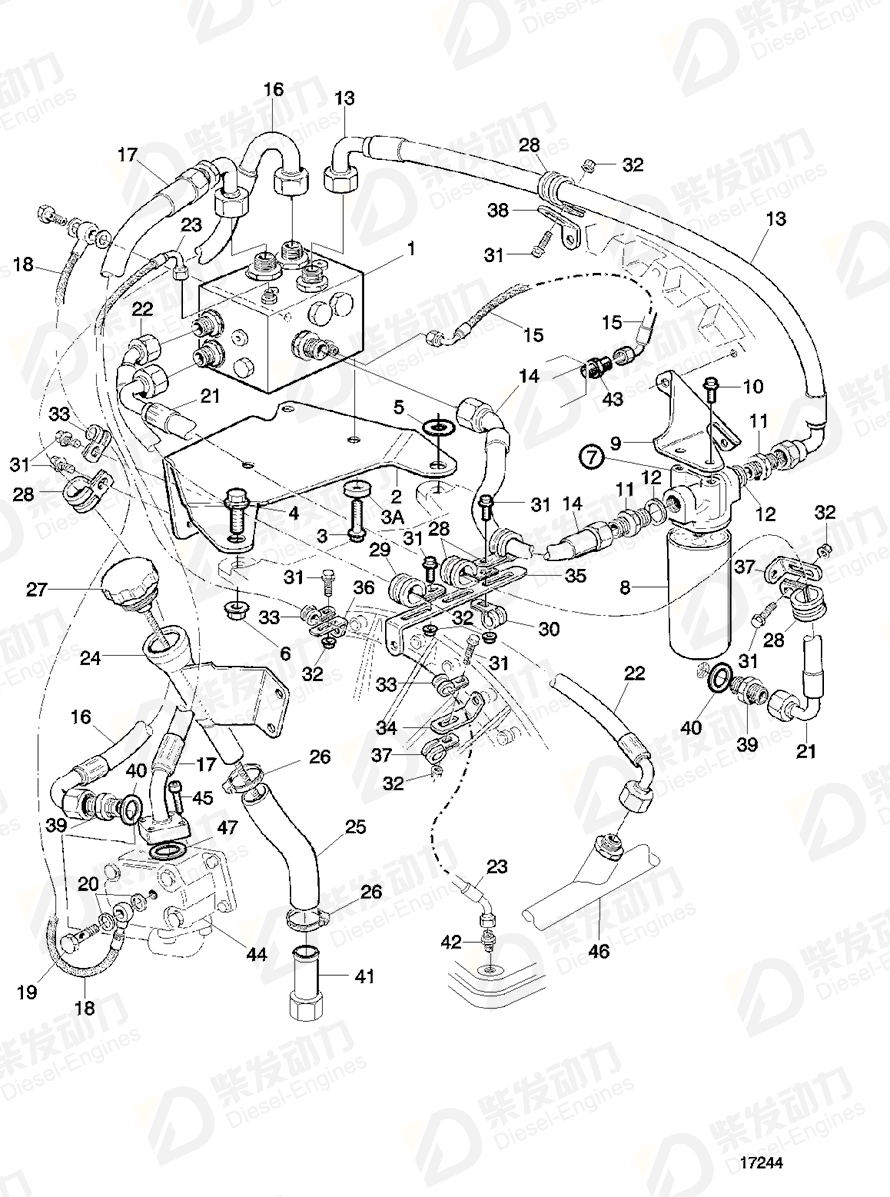

| No. | Part Name | Part Number | Qty | Description |
| 1 | Valve body | 3828248 | 1 | |
| 2 | Bracket | 3827990 | 1 | |
| 3 | Flange screw | 946472 | 3 | |
| 4 | Flange screw | 966358 | 2 | |
| 5 | Washer | 955899 | 1 | |
| 6 | Flange lock nut | 971100 | 2 | |
| 7 | Hydraulic fluid filt | 4823936 | 1 | |
| 8 | Return filter | 6211489 | 1 | |
| 9 | Bracket | 3827953 | 1 | |
| 10 | Flange screw | 946329 | 2 | |
| 11 | Nipple | 968212 | 2 | |
| 12 | Gasket | 957193 | 2 | |
| 13 | Hose | 3827929 | 1 | |
| 14 | Hose | 3827930 | 1 | |
| 15 | Hose | 3827931 | 1 | |
| 16 | Hose | 3827932 | 1 | |
| 17 | Hose | 3827933 | 1 | |
| 18 | Hose | 3827934 | 1 | |
| 19 | Hollow screw | 981874 | 1 | |
| 20 | Gasket | 943907 | 2 | |
| 21 | Hose | 3827935 | 1 | |
| 22 | Hose | 3827936 | 1 | |
| 23 | Hose | 3827937 | 1 | |
| 24 | Bracket | 3827148 | 1 | |
| 25 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 26 | Hose clamp | 994559 | 2 | |
| 27 | Dipstick | 3827671 | 1 | |
| 28 | Clamp | 952642 | 5 | |
| 29 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 30 | Clamp | 952626 | 2 | |
| 31 | Flange screw | 946544 | 8 | For THD102KB and THD102KD. |
| 32 | Flange nut | 945407 | 6 | For THD102KB and THD102KD. |
| 33 | Clamp | 952625 | 3 | |
| 34 | Bracket | 965536 | 1 | |
| 35 | Bracket | 965569 | 1 | |
| 36 | Bracket | 965557 | 1 | |
| 37 | Bracket | 965552 | 1 | |
| 38 | Bracket | 965571 | 1 | |
| 39 | Adapter | 3827950 | 2 | |
| 3A | Spacer sleeve | 1586847 | 3 | |
| 40 | Gasket | 944250 | 1 | |
| 47 | Gasket | 944250 | 1 |
| Item | Part Name | Part No. |
| 3 | Flange screw 946472 | 946472 |
| Details | |
| Engine model | DH10A TAD1030G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE, TAD1031G TAD1030P TAD1030V TAD1031GE TAD1031GE, TAD1032GE TAD1230G, TAD1231GE, TAD1232GE TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1230V TAD1240GE, TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1354GE, TAD1355GE TAD1350VE TAD1354GE, TAD1355GE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TAD1640GE, TAD1641GE, TAD1642GE TAD1641VE, TAD1642VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1660VE, TAD1661VE, TAD1662VE TAD1650GE, TAD1651GE TAD1650VE TAD1660VE, TAD1661VE, TAD1662VE TAD730G TAD730P TAD730V TAD740GE, TAD741GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD1030VE, TWD1031VE TD1210G, TWD1210G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121G-87, TWD1231VE TD121GG-86, TD121GG-87 TD121GP-87, TWD1210P TD164KAE TD31ACE TD610G, TWD610G TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD610V, TWD610V, TWD630VE TD61AP, TD71AP, TID71AP TD630ME TD630VE TD640VE TD710G TD710G, TWD710G TD71A TD71A, TD71AW, TD71ACE TD71A, TID71A, TWD710V, TAD730V TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD71ACE TD71AG TD71AG, TD71AP TD71AP TD71AW TID121KG TID121LG TID71A TID71AG TID71AP TWD1031VE TWD1210V, TWD1211V TWD1211G TWD1211P, TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD1240VE TWD1240VE, TAD1241VE, TAD1242VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD610P TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P TWD610V TWD710G TWD710P TWD710P, TAD730P TWD740GE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Air Filter Air Filter and Installation Components, Medium Duty Air Filter with Installation Components, Heavy Duty Air Filter with Installation Components, High Mounted Alternator Battery Box Battery Box and Installation Components Belt Transmission and Belt Tensioner Device RC Clutch PT142 Cooling Water Pump and Thermostat Housing Crankhouse Ventilation and Air Filter Cylinder Block Expansion Tank with Installation Components, SN-2016079647 Fan Fan and Installation Components: A Fan and Installation Components: D Fan and Installation Components: TD71AGP Fan and Installation Components: TID71AGP Fan SN 2071145378- Fan SN-2071145377 Flywheel Fuel Filter Fuel Filter and Water Separator Fuel Filter and Water Separator: A Fuel Filter and Water Separator: B Fuel Filter, Twin Fuel Filter: A Fuel Filter: B Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter. Standard Fuel System: C Fuel System Fuel System: A Fuel System: B Fuel System: C Fuel System: D Fuel System: TD71AGP Fuel System: TD71APB Fuel System: TID71AGP Fuel System: TID71APB Heat Shield for Exhaust Manifold Heat Shield for Turbo Injection Pump, Fuel Filter and Shut-off Valve Lubricating System Lubricating System with Deep Oil Sump Oil Filter Housing Oil Sump With Oil Filling. Aluminum Pre Heating Radiator and Charge Air Cooler, SN-2016079647 Radiator and Charge Air Cooler,Pushing,SN2016027048-2016079647 Radiator and Fan Radiator and Fan with Installation Components Radiator and Fan with Installation Components: A Radiator and Fan with Installation Components: B Radiator and Fan, Earlier Prod. Radiator and Fan, Later Prod.: A Radiator and Fan, Later Prod.: senare utförande Radiator and Fan, Mobile Application Radiator and Fan, SN2120211550- Radiator and Fan, SN2120211550-: A Radiator and Fan, SN2120211550-: B Radiator and Fan: A Radiator and Fan: B Radiator and Fan: C Radiator and Pushing Fan. SN-2016028724 Radiator and Sunktion Fan. SN-2016079647 Radiator, Expansion Tank and Fan Secondary Lubrication of Gearbox Powertronic Silencer, Engine Mounted Stop Solenoid *earlier Production: A Stop Solenoid *earlier Production: B Thermostat and Water Pump Timing Gear Casing and Gears Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B |
| Specification | |
| Descriptions | For 3826978 For 849060, 476977 For 849932 For fan with D=680mm. For metal fan. L=30mm M10x30mm M10x40mm |
