Bracket 862162

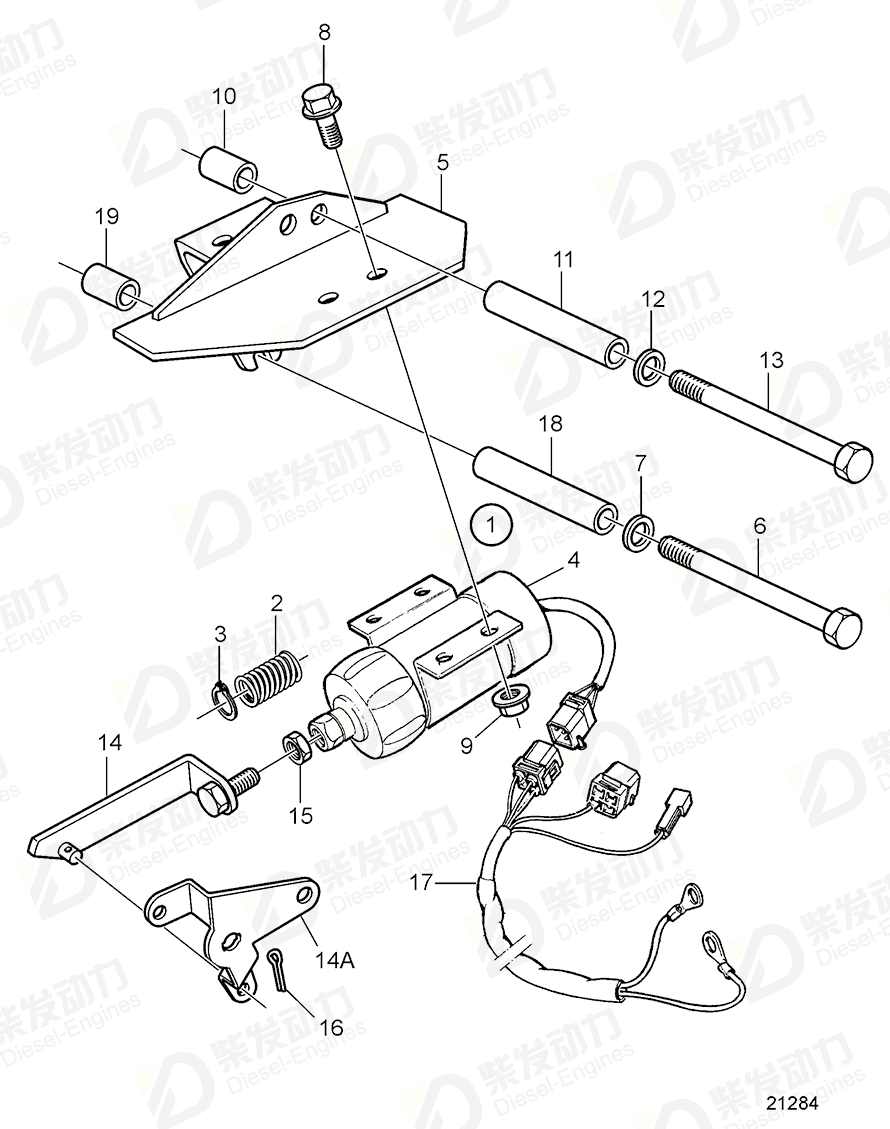

| No. | Part Name | Part Number | Qty | Description |
| 1 | Actuator solenoid | 888468 | 1 | |
| 1 | Actuator solenoid | 3826742 | 1 | 24V |
| 2 | Return spring | 847009 | 1 | |
| 3 | Retaining ring | 914456 | 1 | |
| 5 | Bracket | 862162 | 1 | |
| 6 | Hexagon screw | 955544 | 1 | |
| 7 | Spring washer | 942336 | 1 | |
| 8 | Flange screw | 946440 | 4 | |
| 9 | Flange nut | 945408 | 4 | |
| 10 | Spacer sleeve | 822255 | 1 | Replaced by 1pc 1578938., L=24mm |
| 11 | Spacer sleeve | 822791 | 1 | Replaced by 1pc 1578938., L=55mm |
| 12 | Spring washer | 942336 | 1 | |
| 13 | Hexagon screw | 955544 | 1 | |
| 14 | Pull rod | 862010 | 1 | |
| 15 | Hexagon nut | 955782 | 1 | |
| 16 | Split pin | 907824 | 1 | |
| 17 | Cable kit | 873638 | 1 | |
| 18 | Spacer sleeve | 470467 | 1 | |
| 19 | Spacer sleeve | 821540 | 1 | Replaced by 1pc 1578938., L=22mm |
| 14A | Intermediate lever | 848677 | 1 | (821134) |
| Item | Part Name | Part No. |
| 5 | Bracket 862162 | 862162 |
| Details | |
| Engine model | TD100G-87 TD1210G TD121G-87 TD121GG-87, TD121GP-87, TID121KP-87, TID121LP-87 TD121GGP-87 TD121GP-87 TD121GP-87, TWD1210P, TWD1211P TID100KGP-87 TWD1210V, TWD1211V |
| Application | Stop Solenoid 24V, Energized to Run Stop Solenoid 24V, Energized to Run. Earlier Prod Stop Solenoid 24V, Energized to Run. Later Prod. Stop Solenoid 24V, Energized to Stop. Stop Solenoid 24V, Energized to Stop. Earlier Prod Stop Solenoid 24V, Energized to Stop. Later Prod Stop Solenoid 24V: A Stop Solenoid 24V: B Stop Solenoid with Installation Components |
