Spacer sleeve 821542

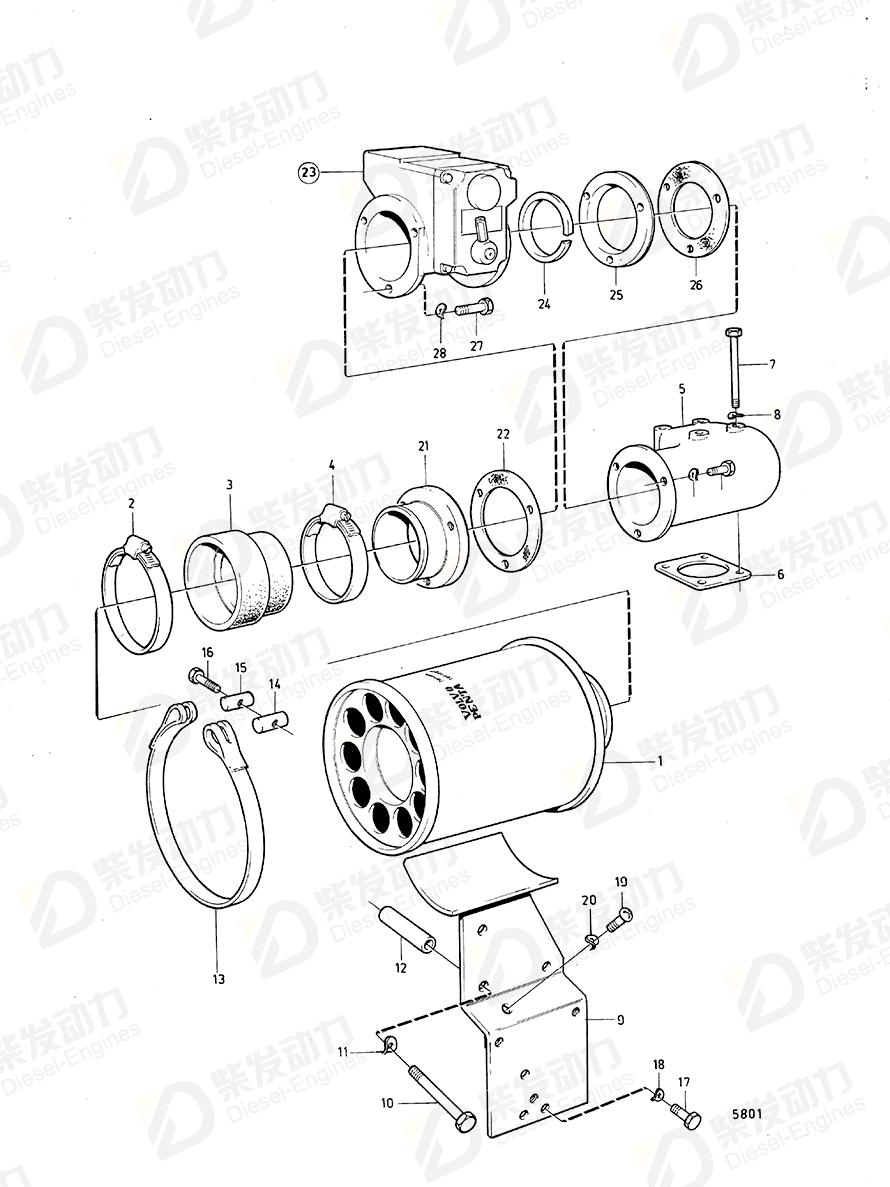

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air filter | 842280 | 1 | |
| 2 | Hose clamp | 943484 | 1 | (951801) |
| 3 | Fitting | 843409 | 1 | |
| 4 | Hose clamp | 943483 | 1 | (951800) |
| 5 | Connecting pipe | 845637 | 1 | |
| 6 | Gasket | 424619 | 1 | |
| 7 | Hexagon screw | 955532 | 2 | Only for thermoswitch control 837500,837501., L=95mm |
| 7 | Hexagon screw | 959793 | 2 | |
| 8 | Spring washer | 941907 | 4 | |
| 9 | Bracket | 845648 | 1 | |
| 10 | Hexagon screw | 955532 | 3 | Only for thermoswitch control 837500,837501., L=95mm |
| 11 | Spring washer | 941907 | 3 | |
| 12 | Spacer sleeve | 821541 | 1 | L=37mm, spec 9757 |
| 12 | Spacer sleeve | 821542 | 2 | L=51mm |
| 13 | Tensioning band | 821028 | 1 | |
| 14 | Pin | 31405 | 1 | |
| 15 | Clevis pin, threaded | 31404 | 1 | |
| 16 | Hexagon screw | 31406 | 1 | |
| 17 | Hexagon screw | 940135 | 3 | |
| 18 | Spring washer | 941907 | 3 | |
| 19 | Cross recessed screw | 956091 | 1 | |
| 20 | Spring washer | 941906 | 1 | |
| 21 | Connecting pipe | 843717 | 1 | ÅKERMAN |
| 22 | Gasket | 862590 | 1 | (843718) |
| 24 | Clamping ring | 843703 | 1 | ÅKERMAN. |
| 25 | Attaching ring | 843704 | 1 | ÅKERMAN. |
| 26 | Gasket | 862590 | 1 | (843718) |
| 27 | Hex. socket screw | 959223 | 1 | L = 30 MM |
| 27 | Hex. socket screw | 959224 | 1 | When emergency stop is mounted., L=35mm |
| 27 | Hex. socket screw | 959233 | 1 | When emergency stop is mounted., L=80mm |
| 28 | Spring washer | 941907 | 3 |
| Item | Part Name | Part No. |
| 12 | Spacer sleeve 821542 | 821542 |
| Details | |
| Engine model | D70CHC, D70CRC TAD720GE TD164KAE TD60B TD60D TD60D-83, TID60DG TD610G TD610M, TD630ME TD610V, TD630VE, TD640VE TD61A TD61AG TD61AP TD70G-83 TD720GE, TAD720GE TID70G TWD1630G |
| Application | Air Filter Air Filter and Installation Components Air Filter and Installation Components: A Air Filter and Installation Components: B Air Filter and Installation Components: TD61APB Oil Bilge Pump, Motor Specification Number: 869335, 869336, 869337, 869338 Oil Sump Pump and Installation Components OIL SUMP PUMP AND INSTALLATION COMPONENTS, ALT Stop Solenoid 24V, Energized to Stop. Stop Solenoid and Installation Components Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B |
| Specification | |
| Descriptions | L=51mm |
Related Products
Tags: Spacer sleeve, Volvo Penta, 821542
