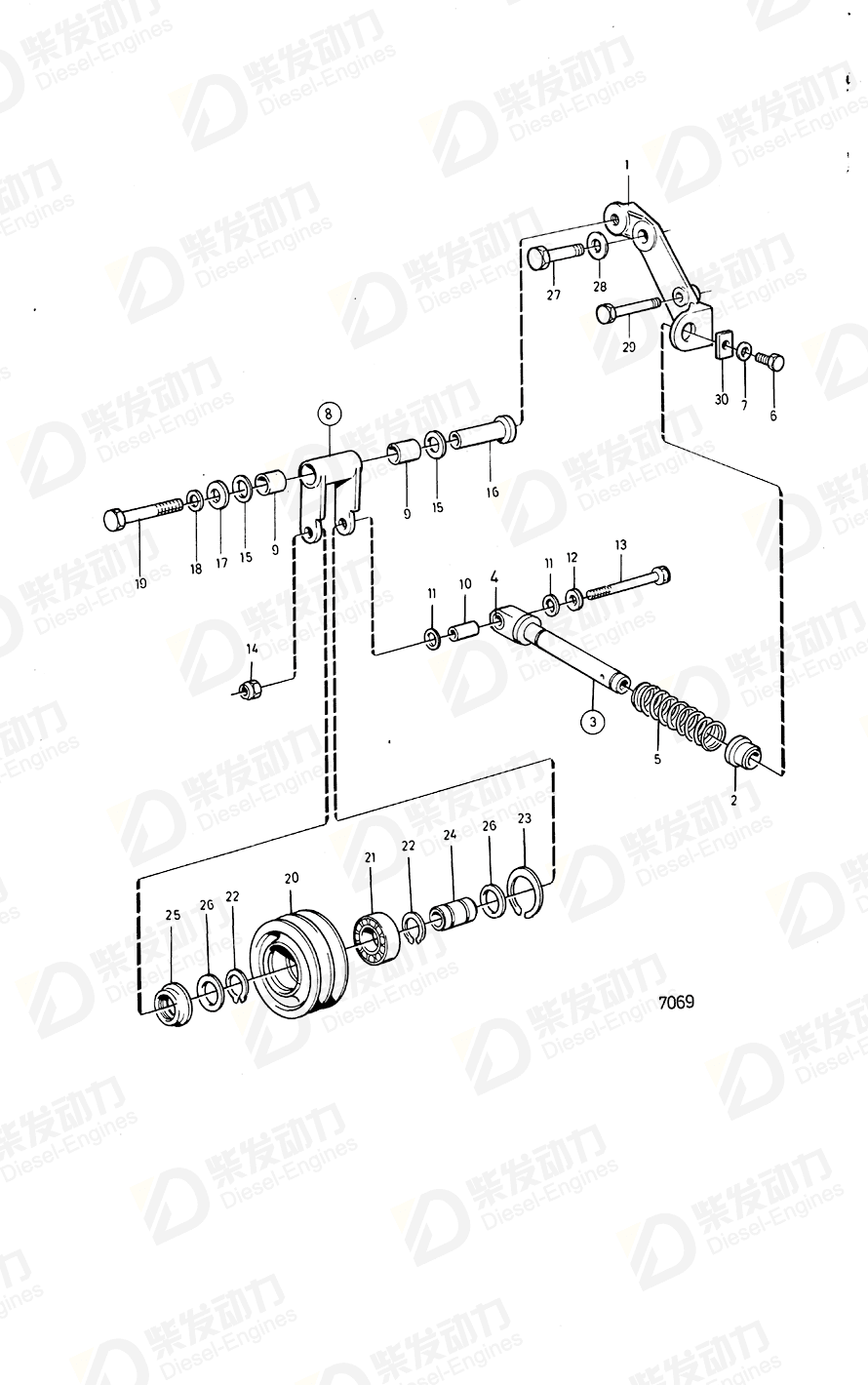

Bracket 846984
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Bracket |
846984 |
1 |
|
| 2 |
Bushing |
843914 |
1 |
|
| 3 |
Spring guide |
843915 |
1 |
|
| 4 |
Bearing bushing |
943959 |
1 |
|
| 5 |
Compression spring |
843919 |
1 |
|
| 6 |
Hexagon screw |
955269 |
1 |
For 1570594 |
| 7 |
Spring washer |
941906 |
1 |
|
| 8 |
Link arm |
847034 |
1 |
|
| 9 |
Bearing bushing |
946176 |
2 |
|
| 10 |
Pivot pin |
843923 |
1 |
|
| 11 |
Wear washer |
843924 |
2 |
|
| 12 |
Washer |
960143 |
1 |
|
| 13 |
Hexagon screw |
955329 |
1 |
|
| 14 |
Lock nut |
963107 |
1 |
|
| 15 |
Wear washer |
843927 |
2 |
|
| 16 |
Spindle |
843926 |
1 |
|
| 17 |
Washer |
18702 |
1 |
|
| 17 |
Washer |
190878 |
1 |
|
| 18 |
Spring washer |
941911 |
1 |
|
| 19 |
Hexagon screw |
962914 |
1 |
|
| 20 |
Pulley |
845133 |
1 |
|
| 21 |
Ball bearing |
1544092 |
1 |
(181430) |
| 22 |
Retaining ring |
914462 |
2 |
|
| 23 |
Retaining ring |
914533 |
1 |
|
| 24 |
Spindle |
843925 |
1 |
|
| 25 |
Protecting plate |
844049 |
2 |
|
| 26 |
Sealing ring |
965862 |
2 |
|
| 27 |
Hexagon screw |
955578 |
1 |
|
| 28 |
Spring washer |
941911 |
1 |
|
| 29 |
Hexagon screw |
955527 |
1 |
|
| 30 |
Washer |
843920 |
1 |
|
| Item |
Part Name |
Part No. |
| 1 |
Bracket 846984 |
846984 |
| Details |
| Engine model |
TD70G-83, TID70G |
| Application |
Automatic Belt Tensioner and Installation Components |
