Bracket 3830047

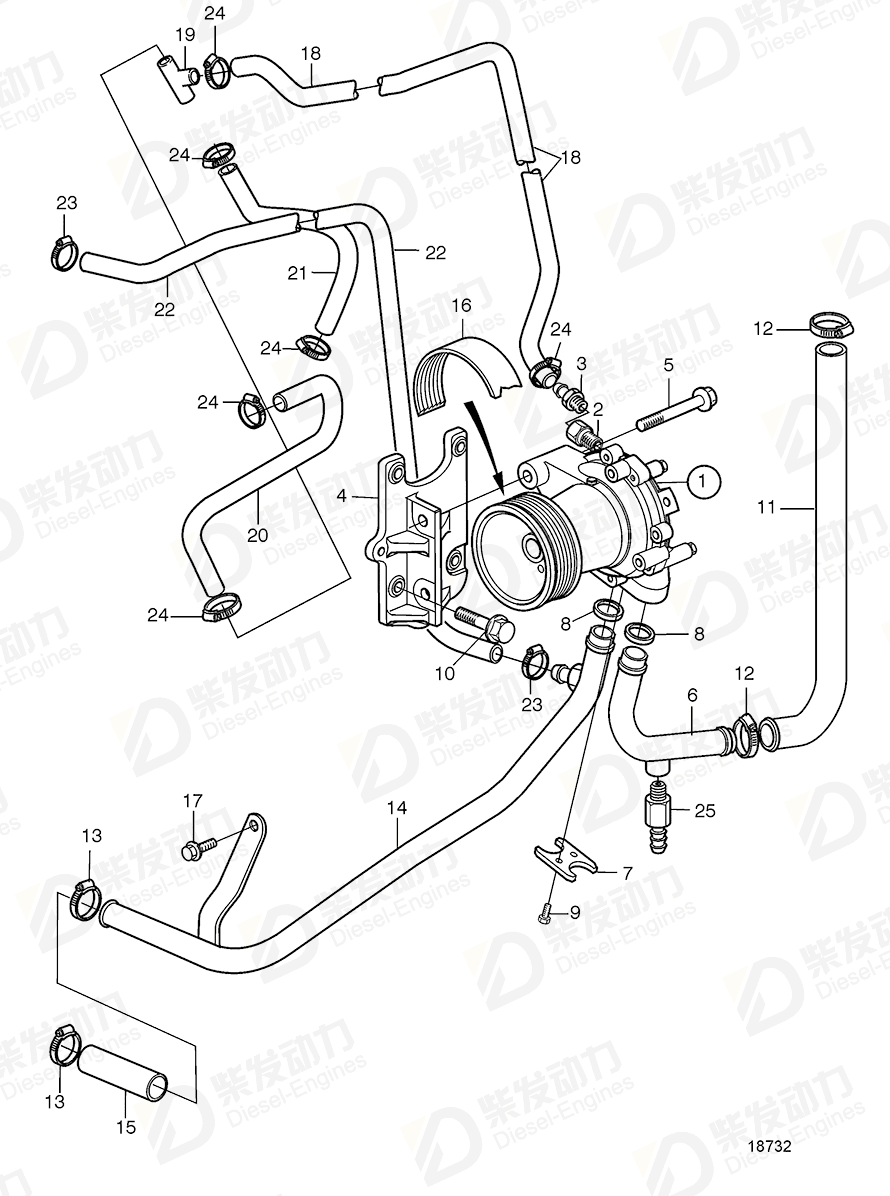

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Water pump |
3830046 |
1 |
|
| 2 |
Nipple |
862109 |
1 |
|
| 3 |
Nipple |
942722 |
1 |
|
| 4 |
Bracket |
3830047 |
1 |
|
| 5 |
Flange screw |
965194 |
2 |
|
| 6 |
Coolant pipe |
3835916 |
1 |
|
| 7 |
Lock washer |
11030747 |
1 |
|
| 8 |
Sealing ring |
11030751 |
2 |
|
| 9 |
Flange screw |
946934 |
2 |
|
| 10 |
Flange screw |
975199 |
4 |
|
| 11 |
Rubber hose |
944386 |
1 |
|
| 12 |
Hose clamp |
994560 |
2 |
|
| 13 |
Hose clamp |
994561 |
2 |
|
| 14 |
Coolant pipe, radiator |
877745 |
1 |
|
| 15 |
Hose |
952973 |
1 |
L = 110 MM |
| 16 |
V-ribbed belt |
977832 |
1 |
|
| 17 |
Flange screw |
946440 |
1 |
|
| 18 |
Rubber hose |
943367 |
1 |
L=1700mm |
| 19 |
Connector |
419446 |
1 |
Spec. 867131. |
| 20 |
Rubber hose |
943367 |
1 |
L=1700mm |
| 21 |
Rubber hose |
943367 |
1 |
L=1700mm |
| 22 |
Hose |
952969 |
1 |
(943368) L=600mm |
| 23 |
Hose clamp |
943472 |
2 |
|
| 24 |
Hose clamp |
994556 |
6 |
|
| 25 |
Shut-off cock |
949918 |
1 |
(82745) |
| Item |
Part Name |
Part No. |
| 4 |
Bracket 3830047 |
3830047 |
| Details |
| Engine model |
TWD1240VE |
| Application |
Water Pump for Aftercooler, High Mounting |
