Bracket 3829953

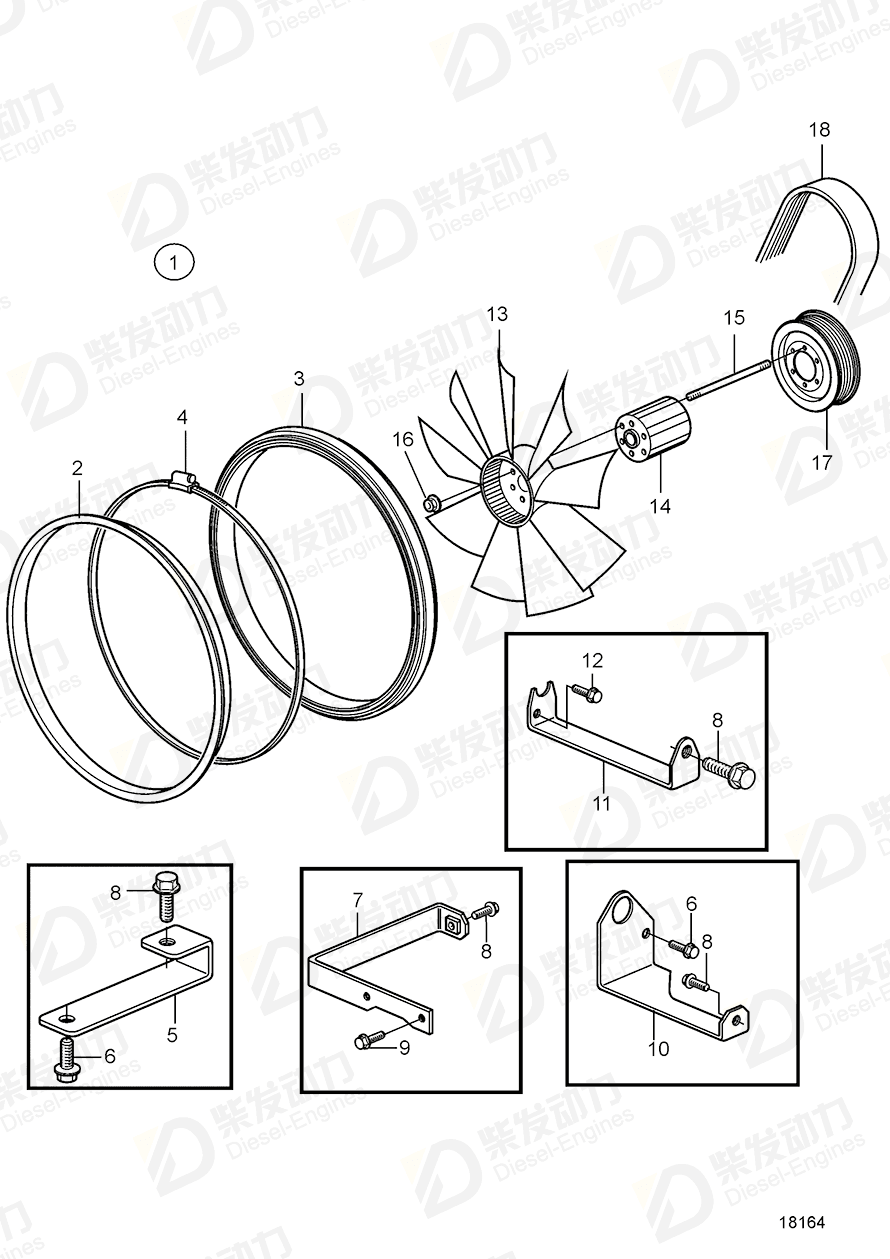

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Fan ring |
1664910 |
1 |
|
| 2 |
Sealing strip |
476612 |
1 |
|
| 3 |
Fan ring |
1664483 |
1 |
|
| 4 |
Hose clamp |
1544650 |
1 |
|
| 5 |
Bracket |
3830472 |
1 |
|
| 6 |
Flange screw |
945444 |
2 |
|
| 7 |
Bracket |
3829953 |
1 |
|
| 8 |
Flange screw |
946440 |
4 |
|
| 9 |
Flange screw |
946671 |
1 |
|
| 10 |
Bracket |
3829952 |
1 |
|
| 11 |
Bracket |
3835720 |
1 |
|
| 12 |
Flange screw |
965181 |
1 |
|
| 13 |
Fan |
3827491 |
1 |
Suction type |
| 13 |
Fan |
3827492 |
1 |
Pusher type. |
| 14 |
Fan hub |
3829538 |
1 |
|
| 15 |
Stud |
953000 |
6 |
L=115mm |
| 16 |
Flange lock nut |
971098 |
6 |
|
| 17 |
Pulley |
3829957 |
1 |
Ratio 0.93:1 |
| 17 |
Pulley |
3829958 |
1 |
Ratio 1:0,99 |
| 18 |
V-ribbed belt |
3830066 |
1 |
For 3829958 |
| 18 |
V-ribbed belt |
3830067 |
1 |
For 3829957 |
| Item |
Part Name |
Part No. |
| 7 |
Bracket 3829953 |
3829953 |
| Details |
| Engine model |
TWD1240VE |
| Application |
Fan and Fanring |
