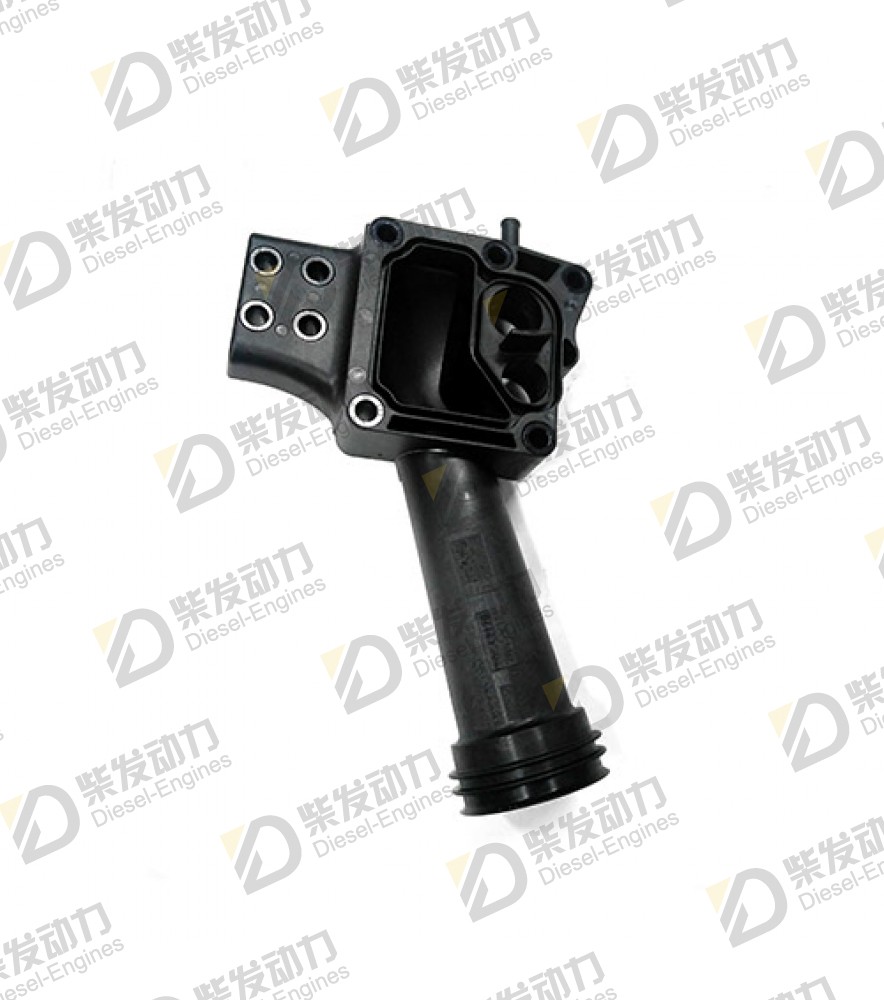

Connecting pipe 3829856

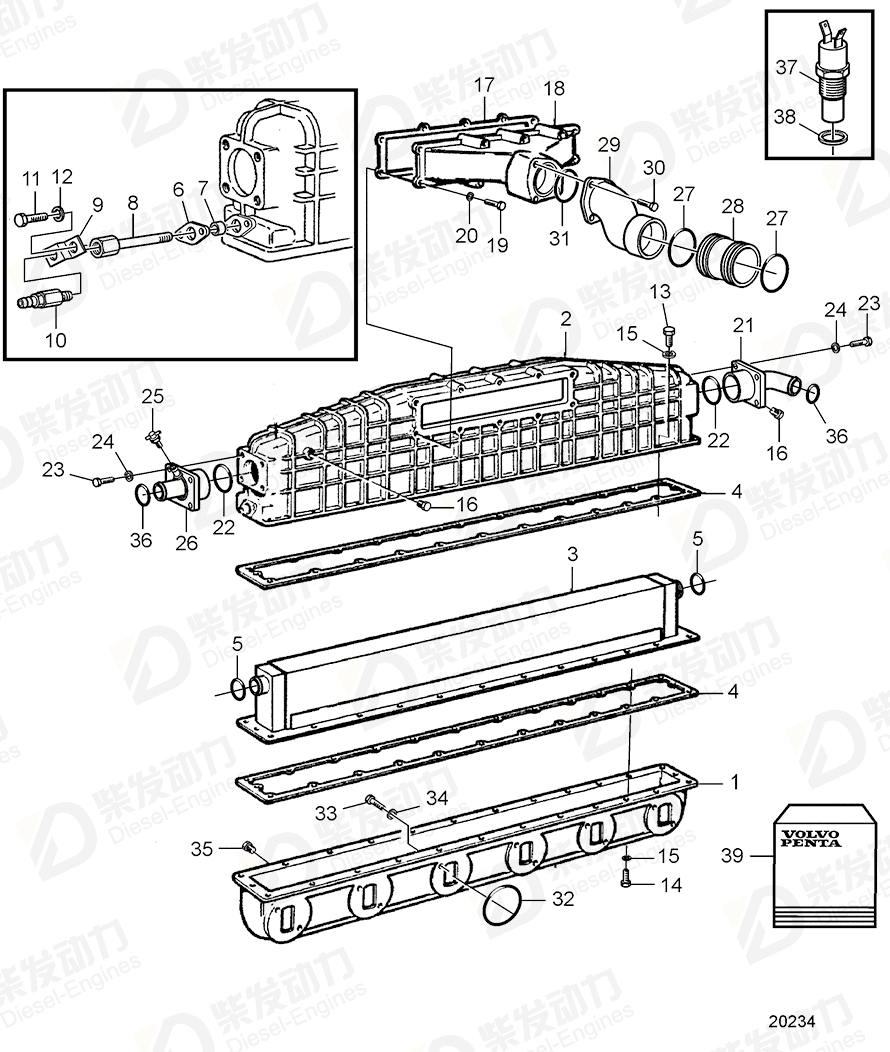

| No. |
Part Name |
Part Number |
Qty |
Description |
| 2 |
Inlet pipe |
11158215 |
1 |
Replaced by 1 inlet pipe 11032230, 1 plug 479977, 4 screw 980103, (3826828) |
| 3 |
Charge air cooler |
866457 |
1 |
|
| 4 |
Gasket |
3979052 |
2 |
|
| 5 |
O-ring |
425695 |
2 |
|
| 6 |
Flange |
3825050 |
1 |
|
| 7 |
Sealing ring |
3825051 |
1 |
|
| 8 |
Shut-off cock |
3825067 |
1 |
|
| 9 |
Lock plate |
11031112 |
1 |
|
| 10 |
Shut-off cock |
947893 |
1 |
|
| 11 |
Hexagon screw |
955514 |
2 |
L = 25 MM |
| 12 |
Spring washer |
949607 |
2 |
|
| 13 |
Hex. socket screw |
956572 |
10 |
SEE GROUP 2B |
| 14 |
Hexagon screw |
940186 |
16 |
|
| 15 |
Washer |
955894 |
26 |
|
| 16 |
Plug |
479979 |
1 |
|
| 17 |
Gasket |
469662 |
1 |
|
| 18 |
Connecting pipe |
849140 |
1 |
|
| 19 |
Hexagon screw |
940161 |
10 |
For engine with 40° angle of inclination, L=45mm |
| 20 |
Spring washer |
941907 |
10 |
|
| 21 |
Connecting pipe |
11031574 |
1 |
|
| 22 |
O-ring |
949332 |
2 |
|
| 23 |
Hexagon screw |
955525 |
8 |
|
| 24 |
Spring washer |
941907 |
8 |
|
| 25 |
Shut-off cock |
82744 |
1 |
|
| 26 |
Flange |
3829737 |
1 |
|
| 27 |
Sealing ring |
3825197 |
1 |
|
| 28 |
Intermediate pipe |
3829857 |
1 |
|
| 29 |
Connecting pipe |
3829856 |
1 |
|
| 30 |
Hexagon screw |
940142 |
1 |
ÅKERMAN. |
| 31 |
O-ring |
945512 |
1 |
|
| 32 |
Sealing ring |
1543172 |
6 |
|
| 33 |
Hexagon screw |
955310 |
8 |
L=130mm |
| 33 |
Hexagon screw |
955313 |
4 |
|
| 34 |
Washer |
955894 |
12 |
|
| 35 |
Plug |
479979 |
1 |
|
| 36 |
O-ring |
425695 |
2 |
|
| 37 |
Contact |
822859 |
1 |
86°C,alt |
| 38 |
Locking fluid |
1161053 |
1 |
|
| 39 |
Intake gasket kit, induction manifold |
876171 |
1 |
See group 99 |
| Item |
Part Name |
Part No. |
| 29 |
Connecting pipe 3829856 |
3829856 |
| Details |
| Engine model |
TAD1631G, TAD1631GE |
| Application |
External Cooling System, Induction Manifold and Intercooler |
