Hose 3825076

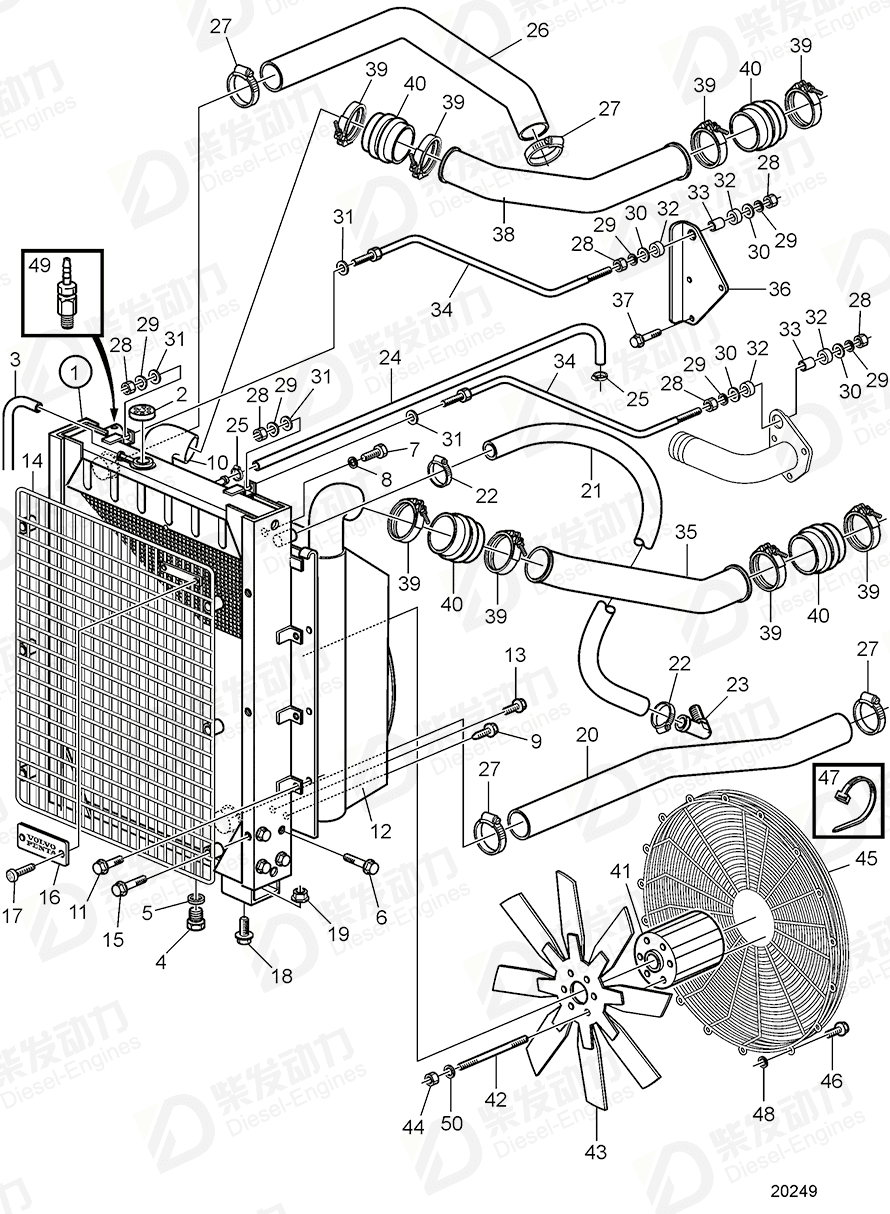

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 3835599 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Hose | 192618 | 1 | L=1400mm |
| 6 | Flange screw | 946441 | 4 | |
| 7 | Plug | 947660 | 1 | (836268) |
| 8 | Gasket | 11994 | 1 | |
| 9 | Flange screw | 966862 | 2 | |
| 10 | Charge air cooler | 3838870 | 1 | |
| 11 | Flange screw | 946173 | 6 | |
| 12 | Fan shroud | 3827775 | 1 | |
| 13 | Flange screw | 946544 | 4 | For THD102KB and THD102KD. |
| 14 | Radiator protector | 862959 | 1 | |
| 15 | Flange screw | 947760 | 6 | M8x40mm |
| 16 | Emblem | 846118 | 1 | |
| 17 | Screw | 941651 | 2 | |
| 18 | Flange screw | 946817 | 2 | |
| 19 | Flange lock nut | 971099 | 2 | |
| 20 | Hose | 3825077 | 1 | |
| 21 | Rubber hose | 944386 | 1 | |
| 22 | Hose clamp | 994560 | 2 | |
| 23 | Elbow nipple | 942649 | 1 | |
| 24 | Rubber hose | 943367 | 1 | L=1700mm |
| 25 | Hose clamp | 994556 | 2 | |
| 26 | Hose | 3825076 | 1 | |
| 27 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 28 | Hexagon nut | 955793 | 6 | |
| 29 | Spring washer | 941912 | 6 | |
| 30 | Washer | 191940 | 4 | |
| 31 | Washer | 948556 | 4 | |
| 32 | Rubber bushing | 866857 | 4 | |
| 33 | Spacer sleeve | 252202 | 2 | |
| 34 | Stay | 3830881 | 2 | |
| 35 | Tube | 3830924 | 1 | |
| 36 | Bracket | 3830866 | 1 | |
| 37 | Flange screw | 948217 | 3 | |
| 38 | Tube | 3830929 | 1 | |
| 39 | Hose clamp | 865575 | 8 | |
| 40 | Charge air hose | 865127 | 4 | |
| 41 | Fan hub | 3828710 | 1 | For thrust fan., L=185mm, (3827609) |
| 42 | Stud | 130204 | 6 | |
| 43 | Fan | 3828964 | 1 | |
| 44 | Flange nut | 971095 | 6 | Alt |
| 45 | Fan guard | 3825490 | 2 | |
| 46 | Flange screw | 966807 | 12 | |
| 47 | Cable tie | 948211 | 8 | |
| 48 | Washer | 191172 | 12 | Spec.867054, 867221. |
| 49 | Shut-off cock | 949918 | 1 | (82745) |
| 50 | Washer | 190509 | 6 |
| Item | Part Name | Part No. |
| 26 | Hose 3825076 | 3825076 |
| Details | |
| Engine model | TAD1631G, TAD1631GE |
| Application | Radiator and Metal Fan Radiator and Plastic Fan, SN-2160048211 Radiator and Plastic Fan, SN2160048211- |
