Flange screw 965246

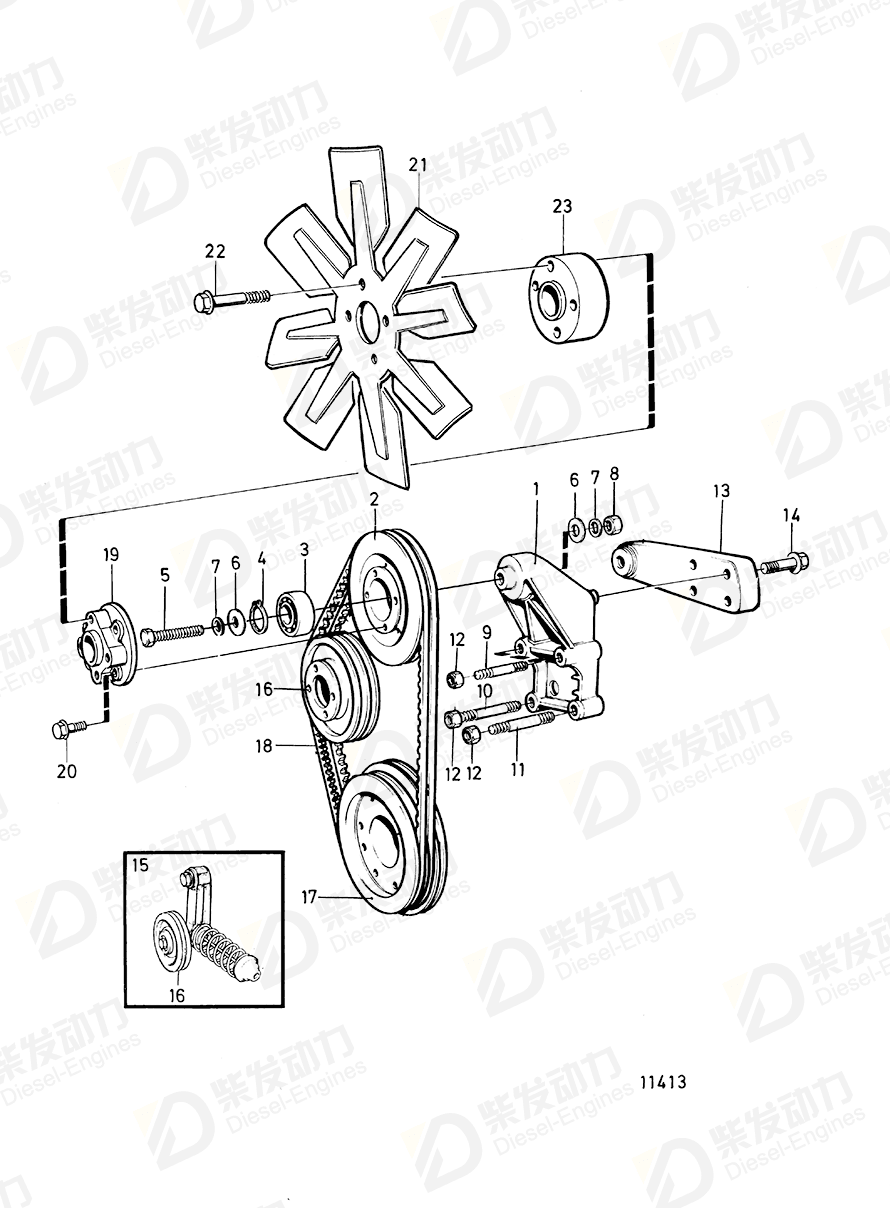

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Bracket |
11030668 |
1 |
(4772126) |
| 3 |
Ball bearing |
1660115 |
1 |
|
| 4 |
Snap ring |
914532 |
1 |
|
| 5 |
Hexagon screw |
970959 |
1 |
|
| 6 |
Washer |
4772122 |
2 |
|
| 7 |
Washer |
947541 |
2 |
|
| 8 |
Hexagon nut |
971071 |
1 |
|
| 9 |
Stud |
17378 |
2 |
L=170mm |
| 10 |
Stud |
479971 |
1 |
|
| 11 |
Stud |
479973 |
1 |
|
| 12 |
Flange nut |
971095 |
4 |
Alt |
| 13 |
Anchorage |
4772116 |
1 |
|
| 14 |
Flange screw |
965246 |
4 |
|
| 18 |
V-belt |
966847 |
1 |
L=2x1175mm |
| 19 |
Hub |
848194 |
1 |
L=43mm |
| 20 |
Flange screw |
946173 |
4 |
|
| 21 |
Fan |
843517 |
1 |
Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 21 |
Fan |
843563 |
1 |
Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 22 |
Flange screw |
965182 |
4 |
|
| 23 |
Spacer ring |
848379 |
1 |
|
| Item |
Part Name |
Part No. |
| 14 |
Flange screw 965246 |
965246 |
| Details |
| Engine model |
TWD610P, TWD710P |
| Application |
Fan |
