Fan belt 3594804

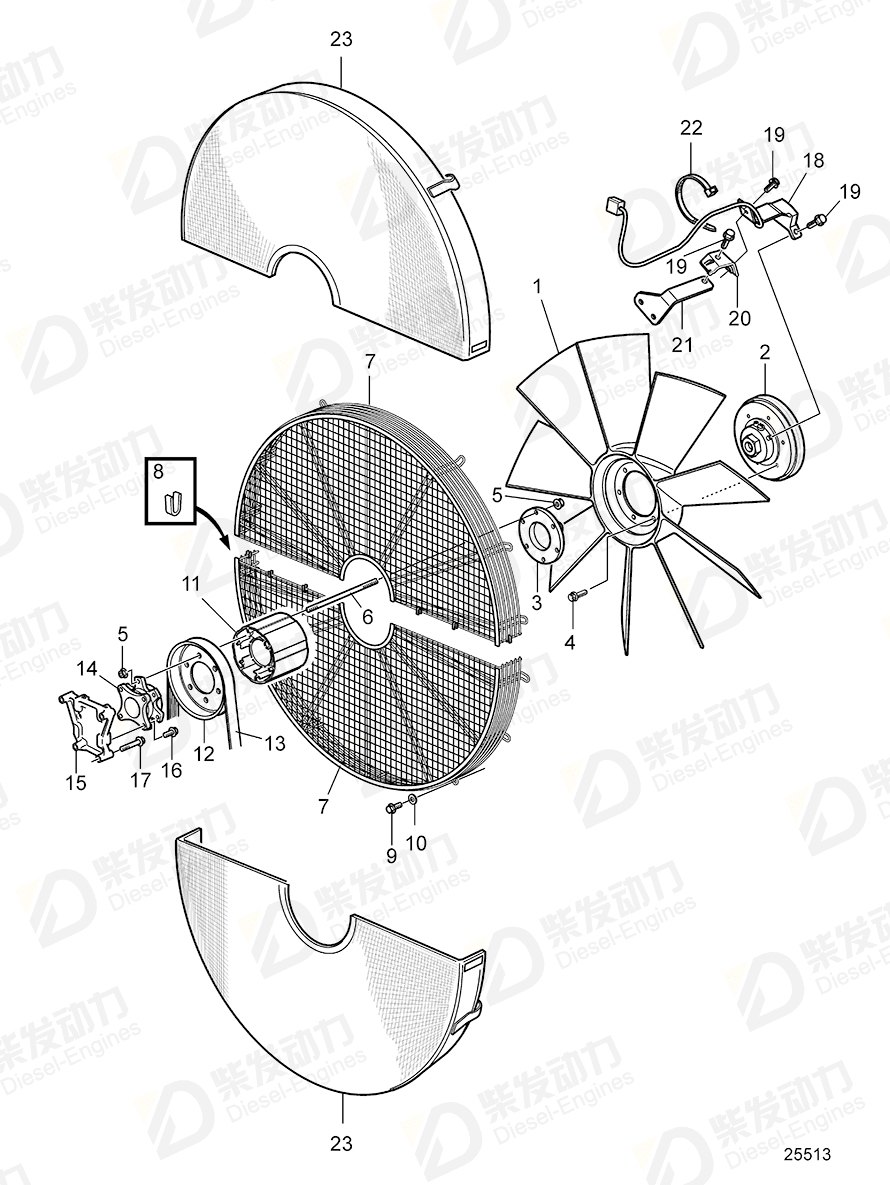

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 3595217 | 1 | Pushing fan |
| 1 | Fan | 21210284 | 1 | Suction fan |
| 2 | Clutch | 21968941 | 1 | |
| 3 | Adapter | 21305942 | 1 | |
| 4 | Six point screw | 21318856 | 6 | |
| 5 | Flange nut | 990941 | 12 | |
| 6 | Stud | 953007 | 6 | |
| 7 | Fan guard | 21784986 | 2 | |
| 9 | Flange screw | 984734 | 12 | |
| 10 | Washer | 976944 | 12 | |
| 11 | Fan hub | 21314136 | 1 | |
| 12 | Pulley | 3586365 | 1 | Ratio 1:1,14 |
| 12 | Pulley | 3807446 | 1 | Ratio 1:1,07 |
| 12 | Pulley | 3828043 | 1 | Ratio 1:0,84, Not for TAD1374VE, TAD1375VE |
| 12 | Pulley | 3829958 | 1 | Ratio 1:0,99 |
| 13 | Fan belt | 3594804 | 1 | For pulley 3828043 |
| 13 | Fan belt | 3595371 | 1 | For pulley 3807446 |
| 13 | Fan belt | 3886349 | 1 | For pulley 3829958 |
| 13 | V-ribbed belt | 20430611 | 1 | For pulley 3586365, For engines equipped with an air compressor. |
| 14 | Fan hub | 22173824 | 1 | |
| 15 | Bracket | 3886350 | 1 | |
| 16 | Flange screw | 984754 | 4 | |
| 17 | Flange screw | 984757 | 4 | |
| 18 | Sensor | 21315240 | 1 | For Visco fan and all other fans |
| 19 | Flange screw | 984733 | 3 | |
| 20 | Bracket | 21303458 | 1 | |
| 21 | Bracket | 21188949 | 1 | |
| 22 | Cable tie | 948211 | 1 | |
| 23 | Air filter | 22036546 | 2 |
| Item | Part Name | Part No. |
| 13 | Fan belt 3594804 | 3594804 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE |
| Application | Belt System Cooling System without Fan Radiator and Fan D=890mm. Suction Radiator and Fan. Pusher Visco Fan Visco Fan and Fan Ring Visco Fan. Pusher |
| Specification | |
| Descriptions | For pulley 3828043 Ratio 0.84:1, L=1890mm |
