Fuel filter housing 8194541

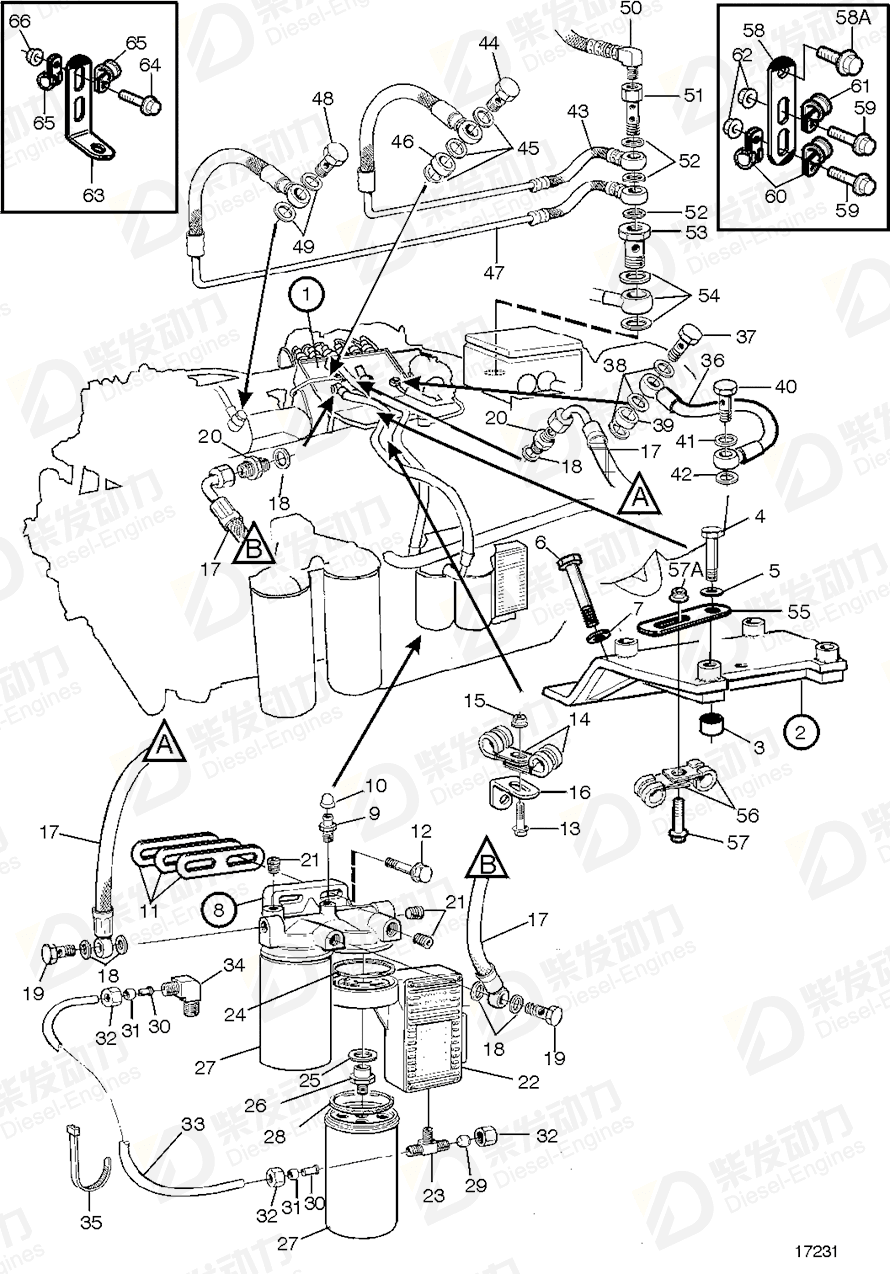

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 425758 | 1 | |
| 1 | Injection pump | 3803676 | 1 | |
| 3 | Guide sleeve | 423161 | 1 | |
| 3 | Spacer sleeve | 823575 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 4 | Hexagon screw | 425519 | 2 | Prepared with locking fluid., 3/8x32 |
| 4 | Hexagon screw | 955566 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 4 | Hexagon screw | 955567 | 2 | For governor 225-1200. |
| 5 | Spring washer | 940280 | 4 | |
| 6 | Hexagon screw | 955542 | 4 | |
| 7 | Washer | 190509 | 4 | |
| 8 | Fuel filter housing | 8194541 | 1 | |
| 9 | Faucet | 20548012 | 1 | |
| 11 | Bracket | 965538 | 3 | |
| 12 | Flange screw | 948217 | 2 | |
| 13 | Flange screw | 945444 | 1 | |
| 14 | Clamp | 942810 | 2 | |
| 15 | Flange nut | 945408 | 1 | |
| 16 | Bracket | 965552 | 1 | |
| 17 | Hose | 3829230 | 2 | |
| 18 | Gasket | 969011 | 6 | |
| 19 | Hollow screw | 25167 | 2 | |
| 20 | Nipple | 941754 | 2 | |
| 21 | Plug | 968062 | 3 | |
| 22 | Control unit | 889319 | 1 | DH10A-360 |
| 22 | Control unit | 3828682 | 1 | DH10A-285 |
| 22 | Control unit | 3828683 | 1 | DH10A-245 |
| 23 | T-nipple | 946082 | 1 | |
| 24 | Sealing ring | 3825387 | 1 | |
| 25 | Washer | 955904 | 1 | |
| 26 | Nipple | 3835801 | 1 | |
| 27 | Fuel filter | 3825133 | 2 | |
| 29 | Plug | 943006 | 1 | |
| 30 | Support sleeve | 944717 | 2 | |
| 31 | Sleeve | 954364 | 2 | |
| 32 | Fitting nut | 954356 | 3 | |
| 33 | Tube | 980831 | 1 | L=2220mm |
| 34 | Elbow nipple | 954385 | 1 | |
| 35 | Cable tie | 948211 | 1 | |
| 36 | Oil line | 3979103 | 1 | |
| 37 | Hollow screw | 943103 | 1 | When oil supervision is mounted. |
| 38 | Gasket | 947281 | 3 | |
| 39 | Spacer sleeve | 1586847 | 1 | |
| 40 | Hollow screw | 942007 | 1 | (954394) |
| 41 | Gasket | 942703 | 1 | |
| 42 | Gasket | 11998 | 1 | |
| 43 | Oil line | 3979101 | 1 | |
| 44 | Hollow screw | 943103 | 1 | When oil supervision is mounted. |
| 45 | Gasket | 947281 | 3 | |
| 46 | Spacer sleeve | 1586847 | 1 | |
| 47 | Oil line | 3979183 | 1 | |
| 48 | Hollow screw | 969299 | 1 | |
| 49 | Gasket | 11994 | 2 | |
| 51 | Hollow screw | 425566 | 1 | |
| 52 | Gasket | 11994 | 3 | |
| 53 | Hollow screw | 479464 | 1 | |
| 55 | Bracket | 965539 | 1 | |
| 56 | Clamp | 942810 | 2 | |
| 57 | Flange screw | 945444 | 1 | |
| 58 | Bracket | 965540 | 1 | |
| 59 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 60 | Clamp | 952624 | 2 | |
| 61 | Clamp | 952626 | 1 | |
| 62 | Flange nut | 945407 | 2 | For THD102KB and THD102KD. |
| 63 | Bracket | 965577 | 1 | |
| 64 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 65 | Clamp | 952624 | 2 | |
| 66 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 57A | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 58A | Hexagon screw | 955512 | 1 |
| Item | Part Name | Part No. |
| 8 | Fuel filter housing 8194541 | 8194541 |
| Details | |
| Engine model | DH10A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030V TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TD100G-87 TD1010G, TWD1010G TD1030VE TD1210G TD121G-87 TD121GP-87 TD164KAE TD610G, TWD610G TD610M, TD630ME, TWD630ME TD610V, TWD610V, TD630VE, TWD630VE TD640VE TD710G, TWD710G, TAD730G TD71A, TID71A, TWD710V, TAD730V TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE THD102KD, THD102KB TWD1031VE TWD1210G TWD1210P TWD1210V TWD1211G TWD1211P TWD1211V TWD1230ME TWD1230VE TWD1231VE TWD1620G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1630P TWD1630V TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Fuel Cleaner Fuel Filter Fuel Filter, Components Fuel Filter, Components: 8194541 Fuel Filter: A Fuel Filter: B Fuel Filter: C Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel System Fuel System with Electronic Speed Control Fuel System with Fuel Shut-offValve Fuel System, SN1201090022- Fuel System, Standard Model Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump, Fuel Filter and EDC Control Unit Injection Pump, Fuel Filter and Shut-off Valve Injectors, Pressure Pipes and Leak-off Line |
| Specification | |
| Descriptions | (1676832) |
