Oil separator 20405626

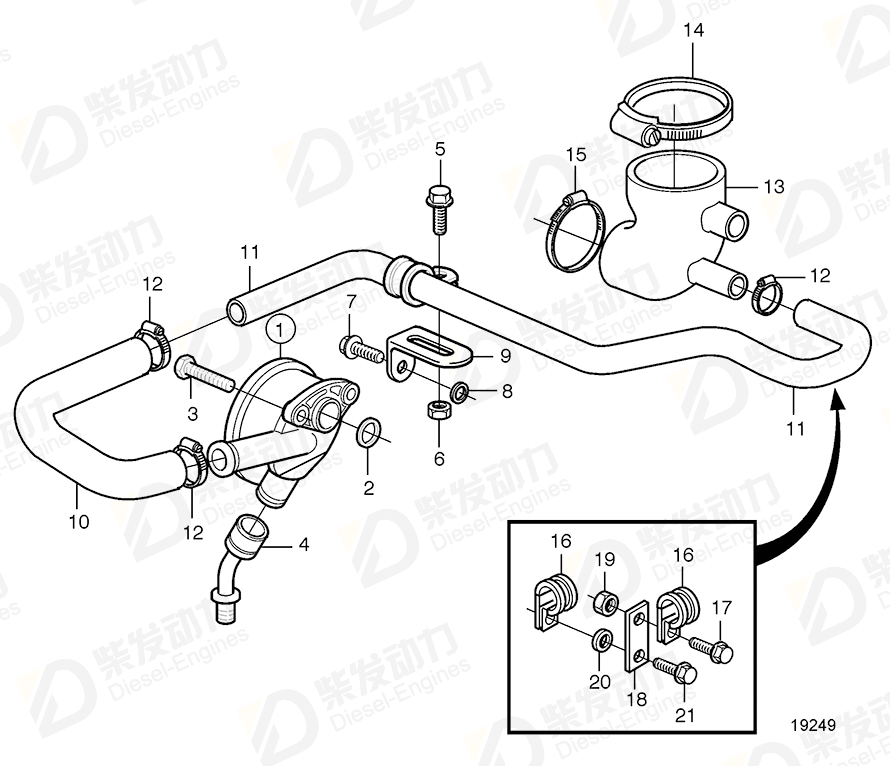

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil separator | 20405626 | 1 | |
| 2 | Gasket | 20405627 | 1 | |
| 3 | Flange screw | 20450728 | 2 | |
| 4 | Conduit coupling | 20405625 | 1 | |
| 5 | Flange screw | 984734 | 2 | |
| 6 | Flange nut | 990940 | 2 | |
| 7 | Flange screw | 20441520 | 1 | |
| 8 | Washer | 20460226 | 1 | |
| 9 | Bracket | 20450726 | 1 | |
| 10 | Hose | 20405629 | 1 | |
| 11 | Breather pipe | 20506111 | 1 | |
| 12 | Hose clamp | 20405755 | 3 | |
| 13 | Manifold | 20476065 | 1 | Without air filter. |
| 14 | Hose clamp | 20412379 | 1 | |
| 15 | Hose clamp | 20412420 | 1 | |
| 16 | Clamp | 20405532 | 2 | |
| 17 | Flange screw | 984734 | 2 | |
| 18 | Housing | 20506112 | 1 | |
| 19 | Flange nut | 990940 | 2 | |
| 20 | Bushing | 20450730 | 1 | |
| 21 | Flange screw | 20459228 | 1 |
| Item | Part Name | Part No. |
| 1 | Oil separator 20405626 | 20405626 |
| Details | |
| Engine model | TAD520GE TAD520VE TAD530GE, TAD531GE TAD530GE, TAD531GE, TAD532GE TAD620VE TD420VE, TAD420VE TD520GE TD520VE |
| Application | Crankcase Ventilation. High Mounted Turbo Crankcase Ventilation. High Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. High Mounted Turbo. Stage 1, Tier 1 Crankcase Ventilation. High Mounted Turbo. Stage 2, Tier 2 Crankcase Ventilation. Low Mounted Turbo Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 1, Tier 1 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2 Crankcase Ventilation. Low Mounted Turbo. Stage 1&2 and Tier 1&2 |
| Specification | |
| Descriptions | (20459252) |
