Connecting pipe 3825224

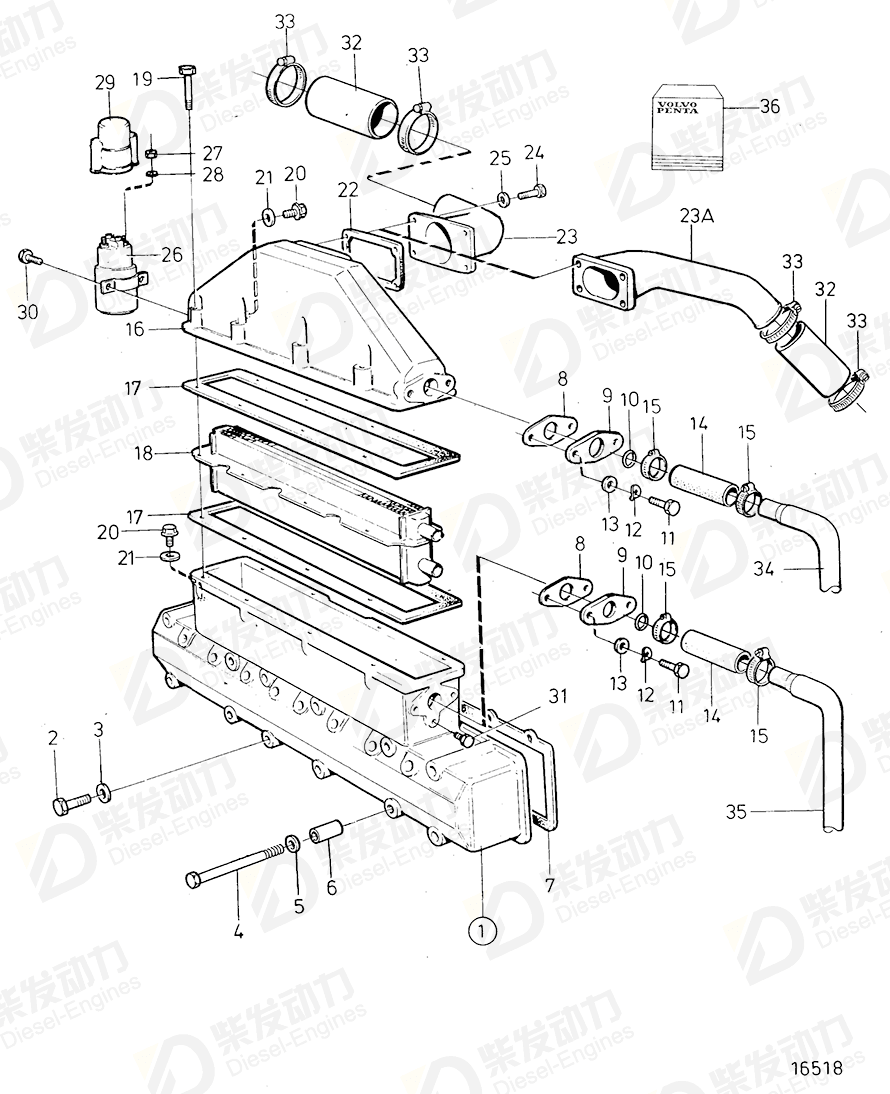

| No. | Part Name | Part Number | Qty | Description |
| 2 | Flange screw | 965183 | 18 | |
| 3 | Spring washer | 941907 | 18 | |
| 4 | Hexagon screw | 955310 | 2 | L=130mm |
| 5 | Washer | 976944 | 2 | |
| 6 | Spacer sleeve | 848229 | 2 | L=31mm |
| 7 | Gasket | 424612 | 2 | (421071) |
| 8 | Gasket | 862619 | 2 | |
| 9 | Flange | 846896 | 2 | |
| 10 | O-ring | 925057 | 2 | |
| 11 | Flange screw | 946934 | 4 | |
| 12 | Spring washer | 949607 | 4 | |
| 13 | Washer | 976943 | 4 | |
| 14 | Hose | 952969 | 2 | (943368) L=600mm |
| 15 | Hose clamp | 943473 | 4 | |
| 16 | Cap | 849429 | 1 | |
| 17 | Gasket | 845515 | 2 | |
| 18 | Charge air cooler | 863489 | 1 | (845660) |
| 19 | Flange screw | 965181 | 8 | |
| 20 | Hexagon screw | 940199 | 1 | |
| 20 | Flange screw | 947107 | 1 | |
| 21 | Gasket | 957171 | 2 | |
| 22 | Gasket | 862620 | 1 | Included in gasket kit. |
| 23 | Connecting pipe | 865746 | 1 | |
| 24 | Hexagon screw | 955272 | 4 | |
| 25 | Spring washer | 941906 | 4 | |
| 26 | Relay | 872242 | 1 | 12V, alt |
| 26 | Relay | 873962 | 1 | |
| 27 | Hexagon nut | 17624 | 2 | |
| 27 | Hexagon nut | 955780 | 2 | |
| 28 | Washer | 955894 | 2 | |
| 29 | Casing | 1581123 | 1 | |
| 30 | Hexagon screw | 955244 | 2 | |
| 31 | Plug | 479979 | 1 | |
| 32 | Hose | 865747 | 1 | |
| 33 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 36 | Intake gasket kit | 876325 | 1 | See group 99 |
| 23A | Connecting pipe | 3825224 | 1 | For low-mounted turbo., TWD731ME |
| Item | Part Name | Part No. |
| 23A | Connecting pipe 3825224 | 3825224 |
| Details | |
| Engine model | TWD730ME, TWD731ME TWD731VE |
| Application | Inlet Manifold Inlet Manifold: B |
| Specification | |
| Descriptions | For low-mounted turbo For low-mounted turbo., TWD731ME |
