Turbocharger 3802075

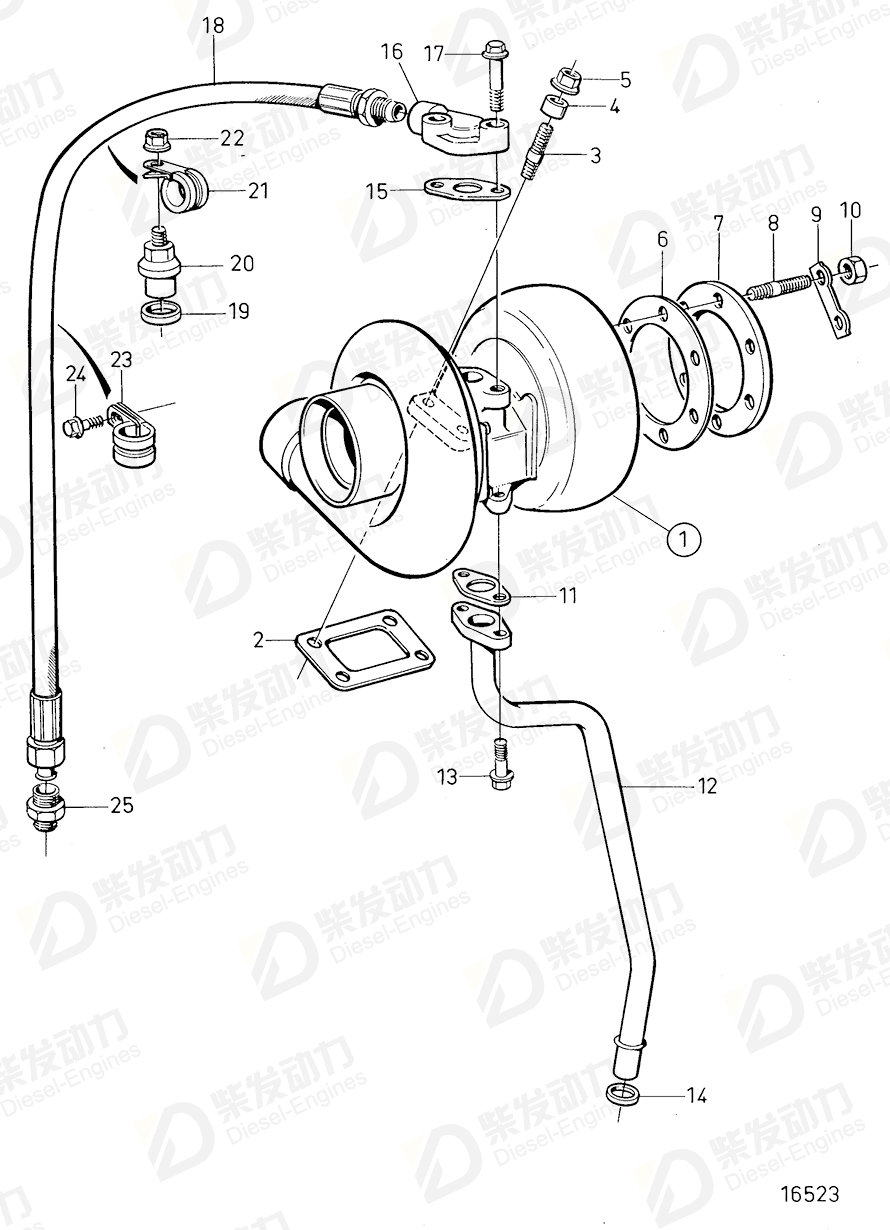

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802075 | 1 | (3825928) |
| 2 | Gasket | 420618 | 1 | (466392) |
| 3 | Stud | 977298 | 4 | |
| 4 | Spacer sleeve | 470467 | 4 | |
| 5 | Flange lock nut | 471622 | 4 | |
| 6 | Gasket | 424628 | 1 | Included in gasket kit. |
| 7 | Flange | 844935 | 1 | |
| 8 | Stud | 924064 | 6 | |
| 9 | Tab washer | 947071 | 3 | TD60B PP |
| 10 | Hexagon nut | 946330 | 6 | |
| 11 | Plane gasket | 420643 | 1 | |
| 12 | Oil return pipe | 3825558 | 1 | |
| 13 | Flange screw | 945444 | 2 | |
| 14 | Rubber moulding | 471626 | 1 | |
| 15 | Plane gasket | 420641 | 1 | |
| 16 | Flange | 8192268 | 1 | |
| 17 | Flange screw | 947760 | 2 | M8x40mm |
| 18 | Pressure hose | 20714372 | 1 | |
| 19 | Sealing ring | 471856 | 1 | |
| 20 | Cap nut | 477971 | 1 | For low-mounted turbo. |
| 21 | Clamp | 949746 | 1 | |
| 22 | Flange nut | 945408 | 1 | |
| 23 | Clamp | 949746 | 1 | |
| 24 | Flange screw | 947107 | 1 | |
| 25 | Nipple | 963948 | 1 | For DH10A and THD102KD. |
| Item | Part Name | Part No. |
| 1 | Turbocharger 3802075 | 3802075 |
| Details | |
| Engine model | TD730ME TD730VE TD730VE, TWD731VE |
| Application | Turbocharger, Components: 3825928 Turbocharger, Low Mounted Turbocharger: A Turbocharger: C |
| Specification | |
| Descriptions | (3825928) TD730VE |
