Valve cover 20545675
Valve cover 20545675
- Brandsvolvo penta
- Part No.: 20545675
- Availability: 联系我们

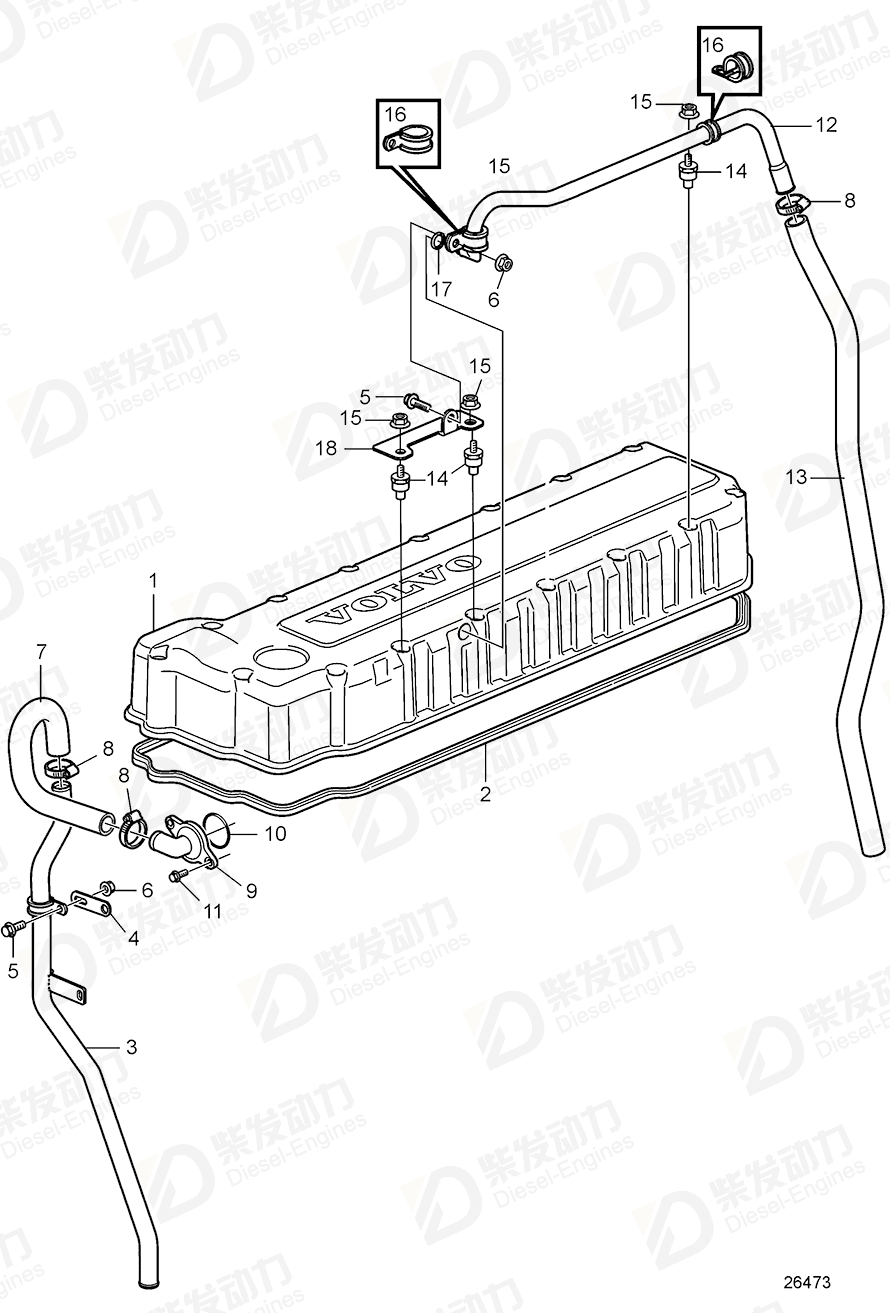

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Valve cover |
20545675 |
1 |
|
| 2 |
Sealing strip |
21070576 |
1 |
|
| 3 |
Breather pipe |
21146235 |
1 |
|
| 4 |
Bracket |
965539 |
1 |
|
| 5 |
Flange screw |
946440 |
2 |
|
| 6 |
Flange lock nut |
948645 |
1 |
|
| 7 |
Hose |
3834045 |
1 |
|
| 8 |
Hose clamp |
994561 |
3 |
|
| 9 |
Hose connection |
3827462 |
1 |
|
| 10 |
Sealing ring |
3165097 |
1 |
|
| 11 |
Flange screw |
945444 |
2 |
|
| 12 |
Connecting pipe |
3836084 |
1 |
|
| 13 |
Hose |
942707 |
1 |
L=700mm |
| 14 |
Anchorage |
8148489 |
3 |
When Medium Duty aircleaner is mounted, quantity=2 |
| 15 |
Flange nut |
945408 |
3 |
|
| 16 |
Clamp |
947827 |
2 |
25,4mm |
| 17 |
Sealing ring |
20381152 |
1 |
|
| 18 |
Bracket |
21623954 |
1 |
|
| Item |
Part Name |
Part No. |
| 1 |
Valve cover 20545675 |
20545675 |
| Details |
| Engine model |
TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE |
| Application |
Crankcase Ventilation for Engine Inclination |
