Sealing ring 1543577

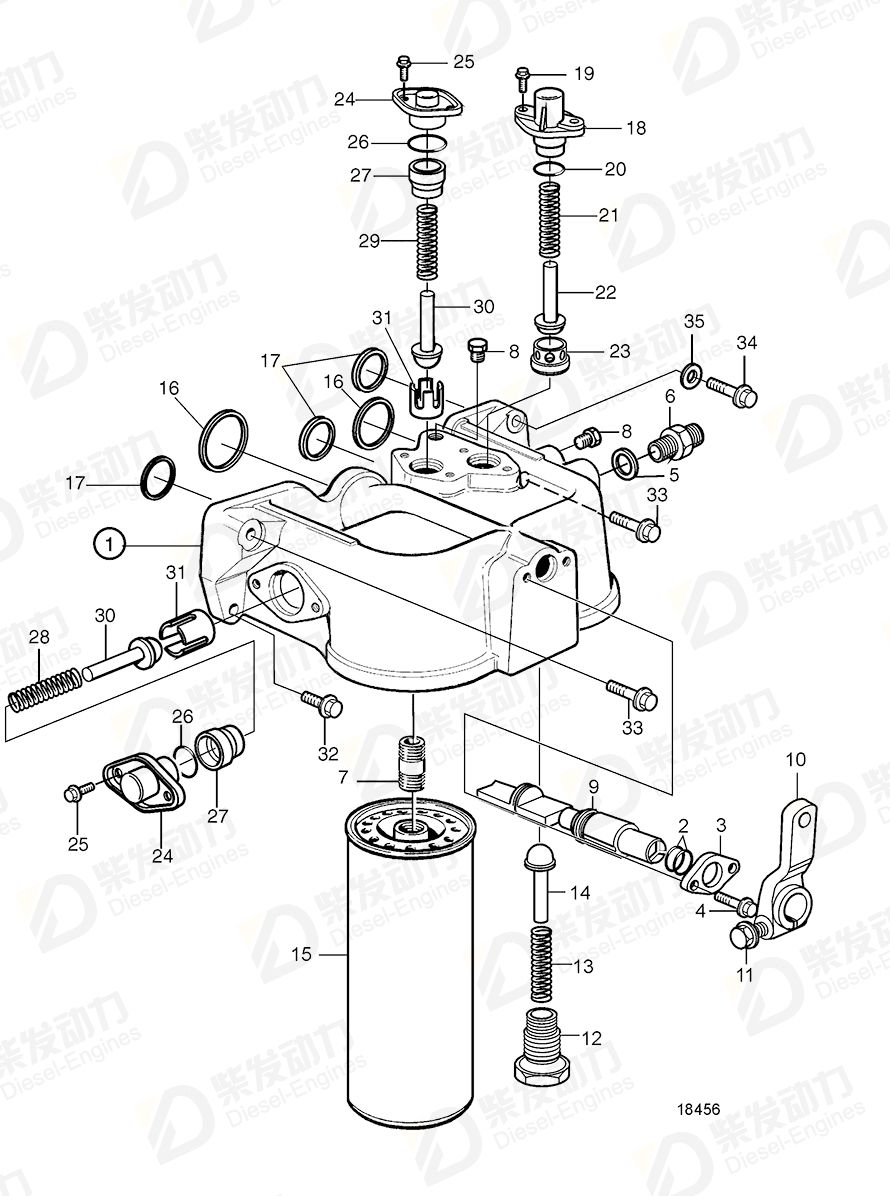

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 3826150 | 1 | |
| 2 | O-ring | 949657 | 2 | (925060) |
| 3 | Flange | 842912 | 1 | |
| 4 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 5 | Gasket | 947624 | 1 | |
| 6 | Nipple | 941330 | 1 | |
| 7 | Nipple | 466623 | 2 | |
| 8 | Plug | 479979 | 2 | |
| 9 | Selector valve | 3826152 | 1 | |
| 10 | Intermediate lever | 964408 | 1 | |
| 11 | Flange screw | 946752 | 1 | |
| 12 | Plug | 471598 | 1 | |
| 13 | Compression spring | 466653 | 1 | |
| 14 | Valve cone | 471085 | 1 | |
| 15 | Oil filter | 478736 | 2 | |
| 16 | Sealing ring | 8192187 | 2 | |
| 17 | Sealing ring | 8192189 | 3 | |
| 18 | Housing | 1543608 | 1 | |
| 19 | Flange screw | 946671 | 2 | |
| 20 | Sealing ring | 1543577 | 1 | |
| 21 | Compression spring | 1543611 | 1 | |
| 22 | Peg | 1543610 | 1 | |
| 23 | Seat | 1543964 | 1 | |
| 24 | Cover | 1542267 | 2 | |
| 25 | Flange screw | 945414 | 4 | |
| 26 | Sealing ring | 1543577 | 2 | |
| 27 | Sleeve | 1542266 | 2 | |
| 28 | Compression spring | 466653 | 1 | |
| 29 | Compression spring | 466653 | 1 | |
| 30 | Valve cone | 471085 | 2 | |
| 31 | Valve seat | 1542265 | 2 | |
| 32 | Flange screw | 945444 | 1 | |
| 33 | Flange screw | 947760 | 2 | M8x40mm |
| 34 | Flange screw | 948217 | 1 |
| Item | Part Name | Part No. |
| 20 | Sealing ring 1543577 | 1543577 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1630P TAD1630P, TWD1630P TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TD164KAE TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G TWD1620G, TWD1630G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1630P TWD1630V |
| Application | Collecting Pipe: EARLIER PRODUCTION Collecting Pipe: TIDIGARE UTFÖRANDE Oil Cooler Oil Filter Oil Filter Housing Oil Filter Housing and Oil Filter Oil Filter Housing and Oil Filter SN-2160030014 Oil Filter Housing and Oil Filter SN2160030015-: 3826150 Oil Filter Housing and Oil Filter SN2160030015-: 3826373 Oil Filter Housing and Oil Filter: 3826150 Oil Filter Housing and Oil Filter: 3826373 Repair Kits Water Pump and Thermostat Water Pump and Thermostat Housing, SN-XXXXXXXXXX/6060 Water Pump and Thermostat Housing, SNXXXXXXXXXX/6061- |
