Gasket 18813

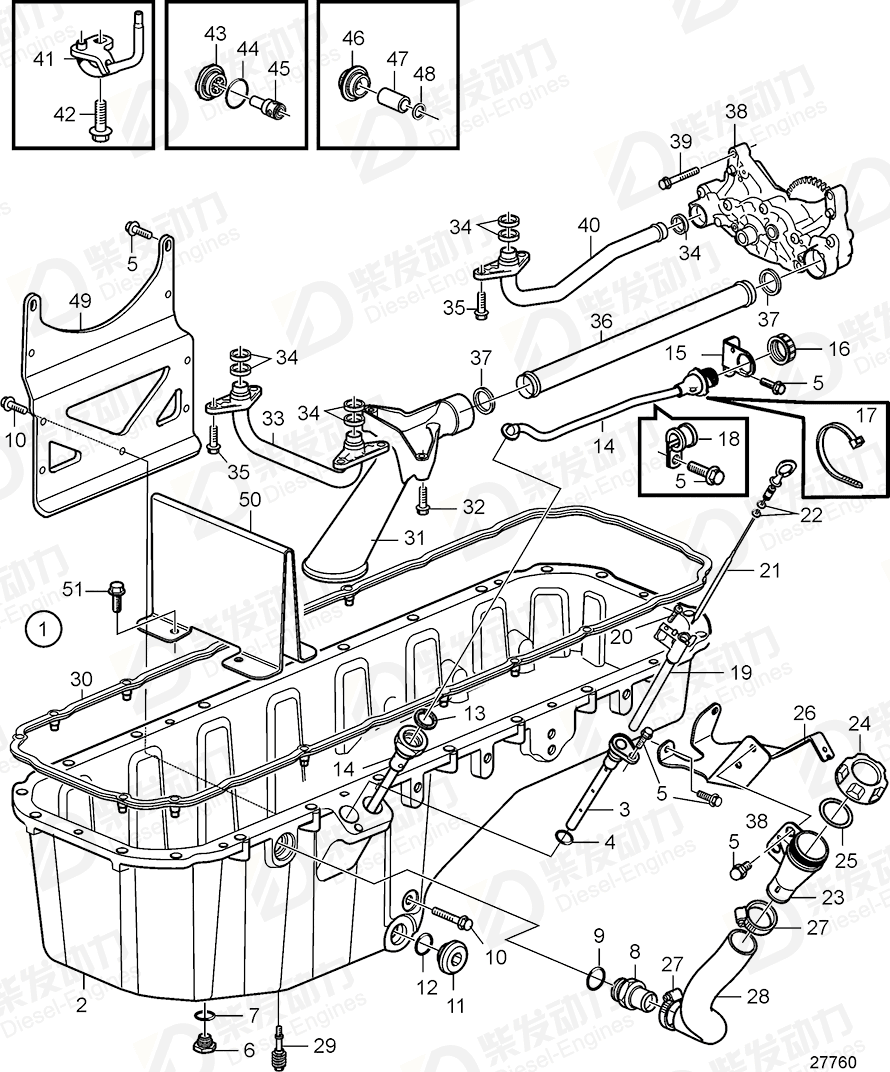

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pan | 21668618 | 1 | |
| 3 | Pipe | 21523327 | 1 | |
| 4 | O-ring | 949656 | 1 | |
| 5 | Flange screw | 984733 | 11 | |
| 6 | Magnetic plug | 20571854 | 1 | |
| 7 | Sealing ring | 20579690 | 1 | |
| 8 | Nipple | 11162582 | 1 | |
| 9 | Gasket | 982509 | 1 | |
| 10 | Flange screw | 965221 | 2 | |
| 11 | Magnetic plug | 11127354 | 1 | |
| 12 | O-ring | 948610 | 1 | |
| 13 | Gasket | 18813 | 1 | |
| 14 | Oil level sensor | 11423761 | 1 | |
| 15 | Bracket | 3988328 | 1 | |
| 16 | Ring | 3963413 | 1 | |
| 17 | Cable tie | 948211 | 1 | |
| 18 | Clamp | 949746 | 2 | |
| 19 | Pipe | 3883614 | 1 | Std |
| 20 | Six point socket scr | 975371 | 1 | |
| 21 | Dipstick | 21839727 | 1 | Std |
| 22 | O-ring | 949187 | 2 | |
| 23 | Oil filler pipe | 20808091 | 1 | |
| 24 | Oil filler cap | 20807510 | 1 | |
| 25 | Rubber washer | 20365079 | 1 | |
| 26 | Bracket | 21549291 | 1 | |
| 27 | Hose clamp | 961670 | 2 | |
| 28 | Hose | 21549296 | 1 | |
| 29 | Flange screw | 20739547 | 16 | |
| 30 | Sealing strip | 21293367 | 1 | |
| 31 | Oil strainer | 15032706 | 1 | |
| 32 | Flange screw | 977275 | 3 | |
| 33 | Pressure pipe | 20498189 | 1 | |
| 34 | Sealing ring | 21092243 | 7 | |
| 35 | Flange screw | 946472 | 6 | |
| 36 | Suction pipe | 20509415 | 1 | |
| 37 | Sealing ring | 20451487 | 2 | |
| 38 | Oil pump | 20824906 | 1 | |
| 39 | Flange screw | 984740 | 4 | |
| 40 | Pressure pipe | 21524766 | 1 | |
| 41 | Piston cooling jet | 3155151 | 6 | |
| 42 | Flange screw | 966378 | 6 | |
| 43 | Cover | 1547934 | 1 | |
| 44 | O-ring | 948610 | 1 | |
| 45 | Reduction valve | 471707 | 1 | |
| 48 | Sealing ring | 469846 | 1 | |
| 49 | Bracket | 21540770 | 1 | |
| 50 | Splash bulkhead | 21305840 | 1 | |
| 51 | Flange screw | 966378 | 4 |
| Item | Part Name | Part No. |
| 13 | Gasket 18813 | 18813 |
| Details | |
| Engine model | DH10A TAD1030G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030GE, TAD1031GE, TAD1032GE, TAD1031G TAD1030P TAD1030V TAD1031GE TAD1032GE TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1230G TAD1230G, TD1210G, TWD1210G, TWD1211G TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1230V TAD1231GE, TAD1232GE TAD1240GE TAD1240GE, TAD1241GE, TAD1242GE TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1630G, TAD1630GE TAD1630P TAD1630P, TWD1630P TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TAD1640GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1641VE, TAD1642VE, TAD1643VE TAD1643VE-B TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1670VE, TAD1671VE, TAD1672VE TAD540-42VE, TAD550-51VE, TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE TAD730G TAD730P TAD730V TAD740GE TAD741GE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE, TAD850-52VE, TAD840-43VE TAD870VE, TAD871VE, TAD872VE, TAD873VE TAD940GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TAD941GE TAD950VE, TAD951VE, TAD952VE TD100G-87 TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD100G-87, TID100K-87 TD100GG-87 TD100HP-87 TD100HPB-87 TD1010G, TWD1010G TD1030ME TD1030VE, TWD1031VE TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP, TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TD120HPP TD1210G TD121G-87 TD121G-87, TD121GG-87, TD121GGP-87, TD121GPB-87 TD121G-87, TD121GG-87, TD121GGP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121G-87, TID121K-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121G-87, TWD1230VE, TWD1231VE TD121GP-87 TD164KAE TD610G TD610G, TWD610G TD610M TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD610V, TWD630VE TD61A TD61A, TD61AW TD61A, TD61AW, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TID61AG, TD71A, TD71AW, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TID71A, TID71AG, TID71AGP, TID71AP, TID71APB, TID61AGP TD61ACE TD61AG TD61AP TD61AW TD630ME TD630VE TD640VE TD710G TD710G, TWD710G, TAD730G TD71A TD71A, TD71AW, TID71A TD71A, TID71A, TD730VE, TWD731VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD71ACE TD730ME TD730ME, TWD730ME, TWD731ME TD730VE TID100K-87 TID100KG-87 TID100KGP-87 TID100KP-87 TID100KPB-87 TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TID162AG, TID162AGP, TID162AP, TID162APB TID61AG TID71A TWD1031VE TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1210V, TWD1211V, TAD1230V TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD1240VE, TAD1241VE, TAD1242VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1620G TWD1620G, TWD1630G, TAD1630G, TAD1630GE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1630P TWD1630V TWD1643GE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE TWD610G TWD610P TWD610V TWD630ME TWD630VE TWD710G TWD710P TWD710P, TAD730P TWD710V TWD730ME, TWD731ME TWD731VE TWD740GE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Aluminium Oil Sump Gear Box 254602, 254603: 254602 Gear Box 254602, 254603: 254603 Gearbox with Connecting Parts Lubricating System Lubricating System with Deep Oil Sump Lubricating System with Low Oil Sump Lubricating System, 10° Inclination, Low Sump Lubricating System, 10° Inclination, Low Sump: A Lubricating System, 10° Inclination, Low Sump: B Lubricating System, 10° Inclination, Low Sump: C Lubricating System, 40° Inclination Lubricating System, 40° Inclination, Low Sump Lubricating System, 40° Inclination, Low Sump: A Lubricating System, 40° Inclination, Low Sump: B Lubricating System, 40° Inclination, Low Sump: C Lubricating System, 40° Inclination: A Lubricating System, 40° Inclination: B Lubricating System, 40° Inclination: C Lubricating System, 40°, Low Sump Lubricating System, Angle of Inclination 40° Lubricating System, Earlier Production Lubricating System, Later Production Lubricating System, Later Production: A Lubricating System, Later Production: B Lubricating System, Low Noise Sump Lubricating System, Low Noise Sump: A Lubricating System, Low Noise Sump: B Lubricating System, Low Noise Sump: C Lubricating System, Low Noise Sump: TD630VE SN-2061139522 Lubricating System, Low Noise Sump: TD630VE SN2061139523- Lubricating System, Oil Sump Aluminium Lubricating System, SN-2012427926 Lubricating System, Standard Lubricating System, Standard Model Lubricating System, Standard Model &Early&prod. Lubricating System, Standard Model &Late&prod Lubricating System, Standard: A Lubricating System, Standard: B Lubricating System, Standard: C Lubricating System, Standard: SN-2061139522 Lubricating System, Standard: SN2061139523- Lubricating System, Standard: TD100GGP-87 Lubricating System, Tilted Oil Sump Lubricating System,10° Lubricating System,40%Z9 Lubricating System,standard Model Lubricating System,standard Model &Early&prod. Lubricating System,standard Model: A Lubricating System,standard Model: B Lubricating System,standard Model: C Lubricating System: A Lubricating System: B LUBRICATING SYSTEM: TID121FP Lubrication System, 40° Inclination, Earlier Production Oil Bilge Pump and Installation Components Oil Bilge Pump with Installation Parts, Earlier Prod: A Oil Bilge Pump, Manual Oil Drain Pump Oil Drain Pump and Installation Parts Oil Drain Pump and Installation Parts, Engine Mounted Oil Drain Pump and Installation Parts, Engine Mounted for Aluminum Sump Oil Drain Pump and Installation Parts, Engine Mounted for Plastic Sump Oil Drain Pump and Installation Parts, Frame Mounted: A Oil Drain Pump and Installation Parts. For aluminium sump Oil Drain Pump and Installation Parts. For plastic sump Oil Sump Pump and Inst. Comps. Later Production Oil Sump Pump and Install. Comps. Earlier Production OIL SUMP PUMP AND INSTALLATION COMPONENTS Oil Sump With Oil Filling. Aluminum Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C |
| Specification | |
| Descriptions | (18677) (M24) Alt, (M24) For 966821 Included in oil pan 11162235 Late type SN 8003/XXXXXX-, (M24) SN 8003/XXXXXX-XXXXXXXXXX/30628., (M24) SN-2160023125 SN2160023126- TAD1631G, TAD1631GE |
