Hexagon nut 20405733

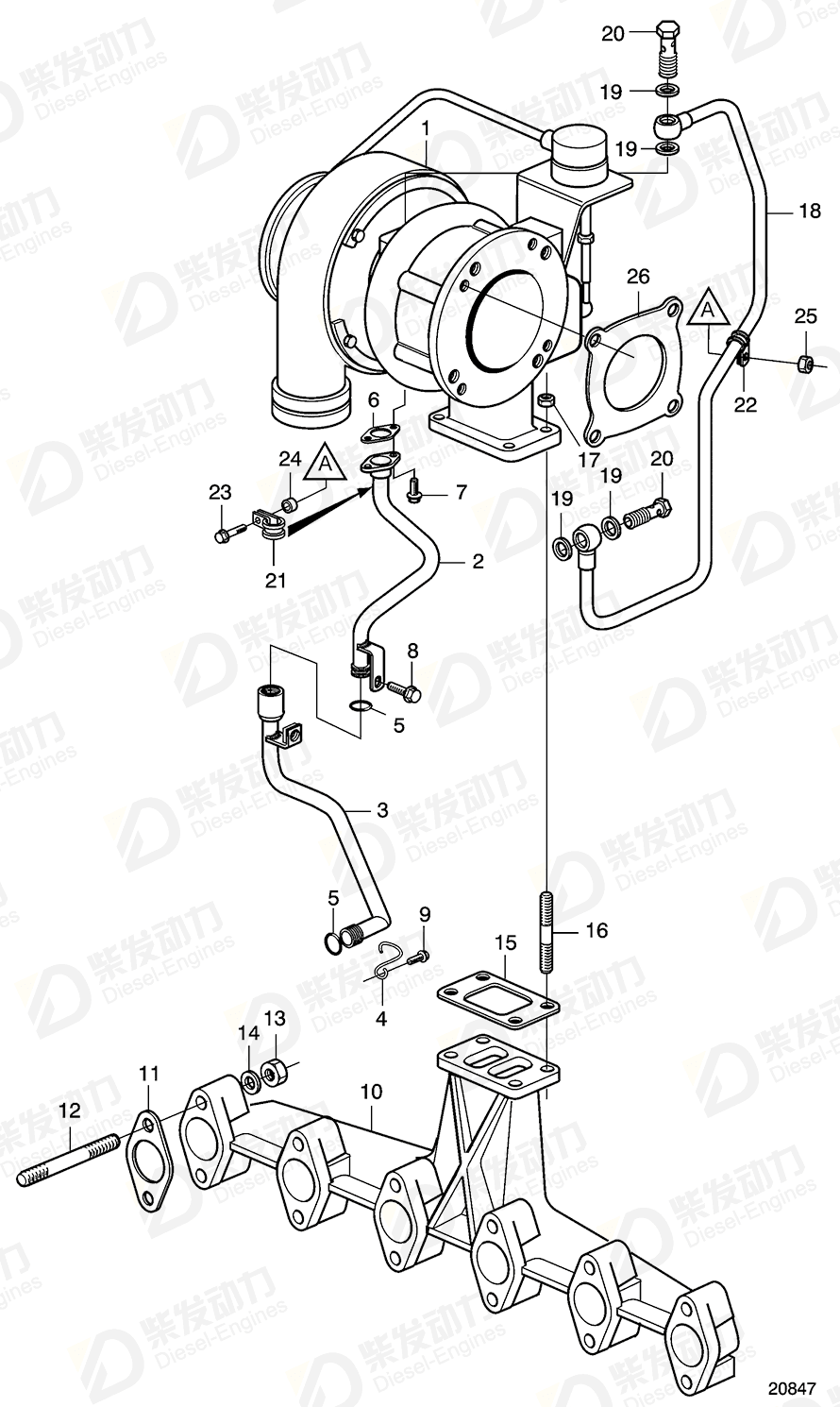

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802190 | 1 | TAD722VE, module: 1501 0 2509, With wastegate. |
| 1 | Turbocharger | 20571676 | 1 | TAD722VE, module: 1501 0 2509, With wastegate. |
| 2 | Return line | 20712653 | 1 | |
| 3 | Return line | 20712669 | 1 | |
| 4 | Retainer | 20405789 | 1 | |
| 5 | O-ring | 20405822 | 2 | |
| 6 | Plane gasket | 20405790 | 1 | |
| 7 | Flange screw | 984734 | 2 | |
| 8 | Flange screw | 20405898 | 1 | |
| 9 | Flange screw | 20405792 | 1 | |
| 10 | Exhaust pipe | 20712736 | 1 | |
| 11 | Gasket | 20557208 | 6 | |
| 12 | Stud | 20405587 | 12 | |
| 13 | Hexagon nut | 20405593 | 12 | |
| 14 | Washer | 20799731 | 12 | |
| 15 | Gasket | 20405970 | 1 | |
| 16 | Stud | 20412314 | 4 | |
| 17 | Hexagon nut | 20412308 | 4 | |
| 18 | Oil line | 20712838 | 1 | |
| 19 | Gasket | 969011 | 4 | |
| 20 | Hollow screw | 25167 | 2 | |
| 21 | Clamp | 20405532 | 1 | |
| 22 | Clamp | 20450987 | 1 | |
| 23 | Flange screw | 20405504 | 1 | |
| 24 | Bushing | 20450730 | 1 | |
| 25 | Hexagon nut | 20405733 | 1 | |
| 26 | Gasket | 20792408 | 1 |
| Item | Part Name | Part No. |
| 25 | Hexagon nut 20405733 | 20405733 |
| Details | |
| Engine model | TAD720VE, TAD721VE, TAD722VE TAD722VE |
| Application | Air Compressor PTO A 600cm³ (1)&(2) with Semi-rotary Pump Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2 |
