V-ribbed belt 20397597

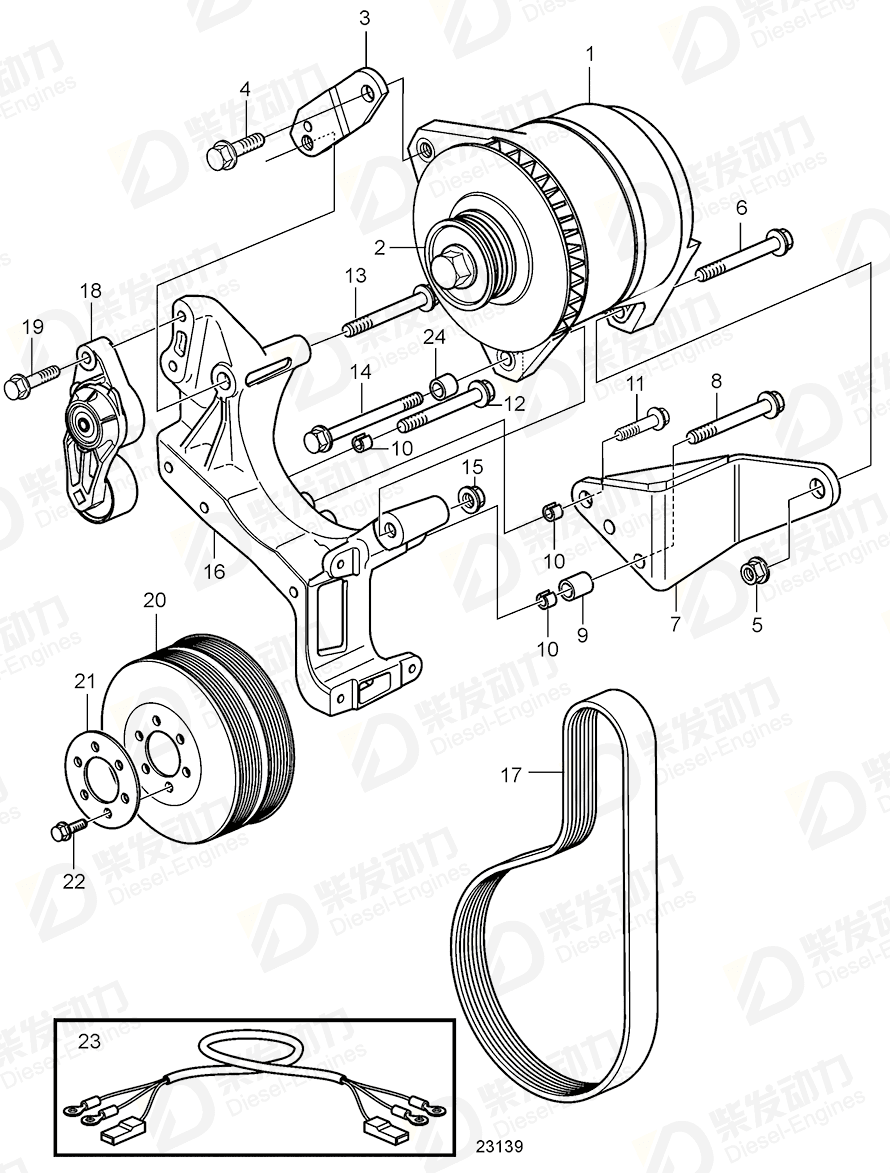

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator, exch | 3803397 | 1 | E.U=3803397, 140A |
| 1 | Alternator | 9520621 | 1 | E.U=3803397, 140A |
| 2 | Pulley | 3837121 | 1 | |
| 3 | Stay | 3842365 | 1 | |
| 4 | Hexagon screw | 984712 | 1 | M12x25mm |
| 5 | Flange lock nut | 971099 | 1 | |
| 6 | Flange screw | 965193 | 1 | |
| 7 | Bracket | 889204 | 1 | |
| 8 | Flange screw | 965190 | 2 | |
| 9 | Spacer sleeve | 948007 | 1 | |
| 10 | Sliding sleeve | 1676487 | 3 | |
| 11 | Flange screw | 947790 | 2 | |
| 12 | Flange screw | 946329 | 2 | |
| 13 | Flange screw | 965229 | 1 | |
| 14 | Flange screw | 965189 | 1 | |
| 15 | Flange lock nut | 971098 | 1 | |
| 16 | Bracket | 20713793 | 1 | |
| 17 | V-ribbed belt | 977825 | 1 | Engines without ac compr. |
| 17 | V-ribbed belt | 20397597 | 1 | Engines with ac compr. |
| 18 | Belt tensioner | 20762060 | 1 | |
| 19 | Flange screw | 965220 | 2 | |
| 20 | Pulley | 3841069 | 1 | (3827415) |
| 21 | Washer | 3979500 | 1 | |
| 22 | Flange screw | 945444 | 6 | |
| 24 | Sleeve | 3837242 | 1 |
| Item | Part Name | Part No. |
| 17 | V-ribbed belt 20397597 | 20397597 |
| Details | |
| Engine model | TWD1240VE TWD1240VE, TAD1241VE, TAD1242VE |
| Application | AC-Compressor Alternator, 140A |
| Specification | |
| Descriptions | Engines with ac compr. For alternator 140A. |
Tags: V-ribbed belt, Volvo Penta, 20397597
