Selector bar 384480

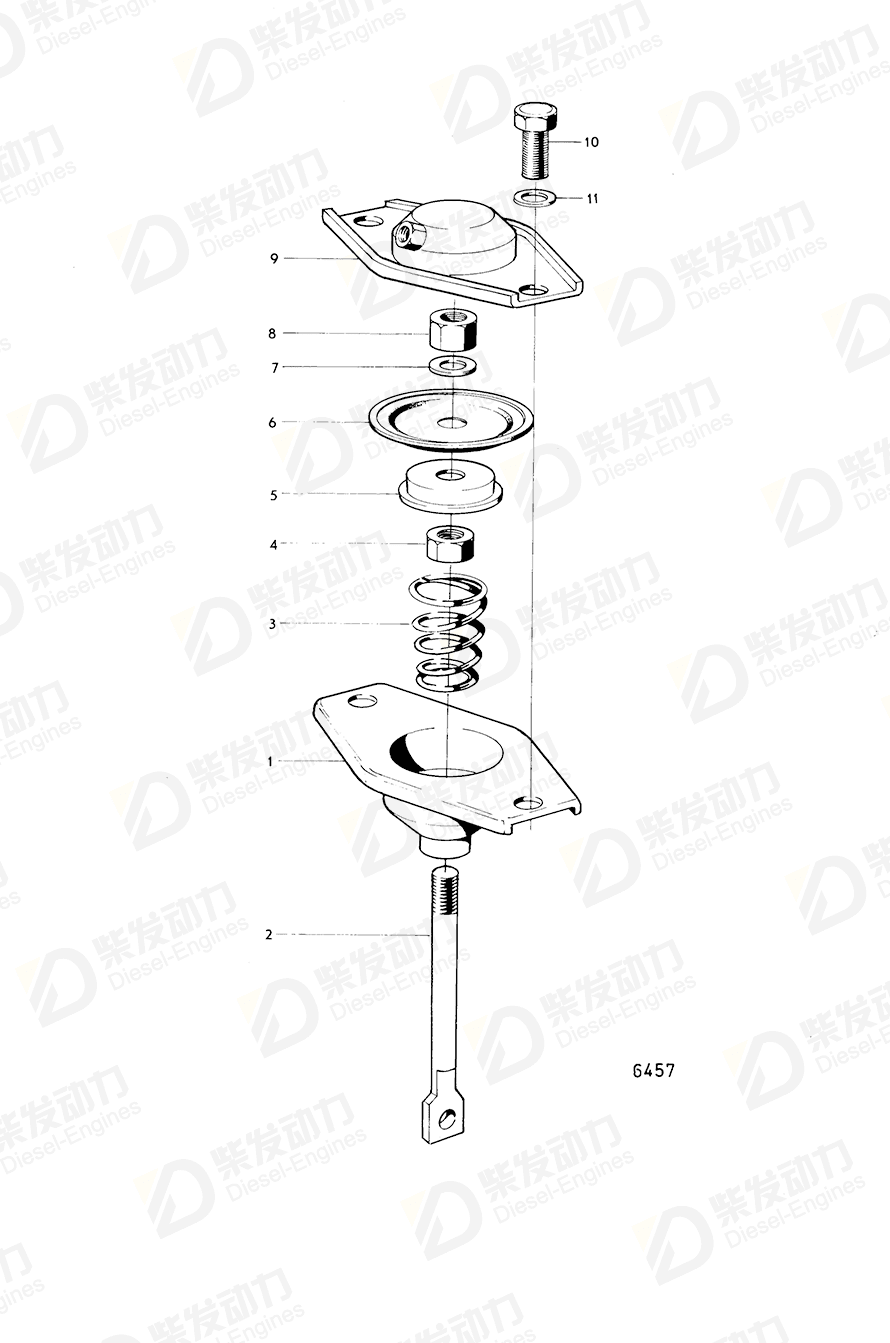

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder | 384618 | 1 | |
| 2 | Selector bar | 384123 | 1 | L=124mm |
| 2 | Selector bar | 384480 | 1 | L=129mm |
| 3 | Spring | 384622 | 1 | |
| 4 | Hexagon nut | 955835 | 2 | |
| 5 | Washer | 384133 | 1 | |
| 6 | Diaphragm | 384621 | 1 | |
| 7 | Washer | 960142 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 8 | Hexagon nut | 150177 | 1 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| 9 | Cylinder | 384619 | 1 | |
| 10 | Hexagon screw | 955534 | 2 | |
| 11 | Spring washer | 942336 | 2 |
| Item | Part Name | Part No. |
| 2 | Selector bar 384480 | 384480 |
| Details | |
| Application | Control Valve for Differential Lock&sen &Utf Control Valve for Differential Lock&tid &Utf |
| Specification | |
| Descriptions | L=129mm |
