Cross shaft 272910

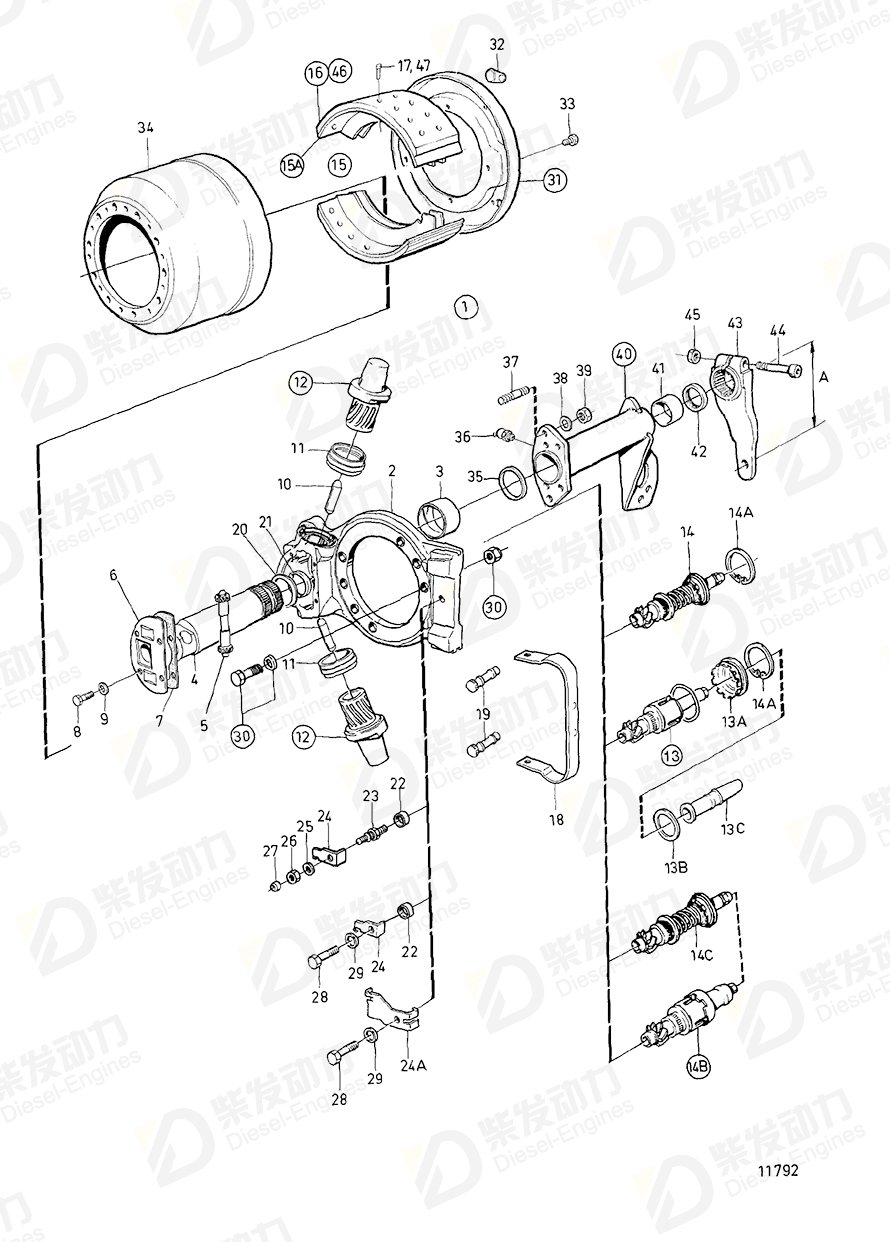

| No. | Part Name | Part Number | Qty | Description |
| 1 | Brake, left | 854613 | 1 | |
| 1 | Brake, right | 854614 | 1 | |
| 1 | Wheel brake, left | 1081104 | 1 | |
| 1 | Wheel brake, right | 1081105 | 1 | |
| 2 | Brake anchorage | 1698730 | 1 | V, SN29286- |
| 2 | Brake anchorage | 1698731 | 1 | H, SN29286- |
| 3 | Bushing | 1088812 | 1 | |
| 4 | Brake cam, marked 1403 | 1696642 | 1 | |
| 4 | Brake cam, marked 1404 | 1696643 | 1 | |
| 5 | Cross shaft | 272910 | 1 | |
| 6 | Cover plate | 1696449 | 1 | |
| 7 | Gasket | 1696450 | 1 | Included in seal kit 272905 |
| 8 | Hexagon screw | 955271 | 4 | |
| 9 | Washer | 955892 | 4 | |
| 10 | Thrust pin | 1696446 | 2 | |
| 11 | Dust cover | 3090954 | 2 | (1696448) |
| 12 | Repair kit | 3097099 | 1 | Left hand thread and left hand helix., (272909), Replaced by next part number |
| 12 | Repair kit | 3097100 | 1 | Right Hand THREAD and right Hand HELIX., (272908) |
| 12 | Repair kit | 8550978 | 1 | Left hand thread and left hand helix. |
| 14 | Adjusting device | 3090998 | 1 | Manually adjustable., H, SN29286- |
| 15 | Brake shoe kit | 872630 | 1 | With asbestosfree brake linings. |
| 16 | Brake lining kit | 275996 | 1 | *with asbestosfree brake linings marked Volvo 15GF., Std D, TID UTF |
| 16 | Brake lining kit | 3091458 | 1 | *with asbestosfree brake linings marked Volvo 43., Std D, SEN UTF |
| 17 | Rivet | 1620004 | 1 | |
| 18 | Return spring | 3097092 | 1 | |
| 19 | Pin | 3097299 | 2 | |
| 20 | Spacer washer | 1697408 | 1 | |
| 21 | Seal | 1697234 | 1 | |
| 22 | Spacer washer | 1697237 | 1 | |
| 24 | Spring | 1697238 | 1 | Left |
| 24 | Spring | 1697239 | 1 | Right |
| 24 | Retainer | 8150790 | 1 | H, märkt/marked 37 |
| 28 | Hexagon screw | 970947 | 1 | M10X25 |
| 29 | Washer | 192495 | 1 | |
| 30 | Screw, brake anchor | 876239 | 12 | |
| 31 | Backing plate | 1610903 | 1 | |
| 32 | Inspection cover | 1573342 | 4 | |
| 33 | Flange screw | 945358 | 10 | Alt |
| 33 | Hexagon screw | 955268 | 10 | |
| 34 | Brake drum | 1075309 | 1 | *the old and the new brake drums should not be fitted on the same axle.*if both brake drums will be changed use 1075309. *brake drum 1075309 was introduced in july 1995. |
| 34 | Brake drum | 1599011 | 1 | *the old and the new brake drums should not be fitted on the same axle.*if both brake drums will be changed use 1075309. *brake drum 1075309 was introduced in july 1995. |
| 35 | O-ring | 967852 | 1 | |
| 36 | Lubricating nipple | 914169 | 1 | |
| 37 | Stud | 130403 | 4 | |
| 38 | Washer | 120196 | 4 | Repl early production marked: 5-4-3-2-1-A-B.If other marking is stamped 4PCS 829308 have to be used. |
| 39 | Lock nut | 971085 | 4 | |
| 40 | Bracket | 1081166 | 1 | V, SN29286- |
| 40 | Bracket | 1081167 | 1 | H, SN29286- |
| 41 | Bushing | 1088812 | 1 | |
| 42 | Sealing ring | 958861 | 1 | |
| 43 | Brake lever | 1607826 | 1 | A=155mm |
| 43 | Brake lever | 1607827 | 1 | A=170mm |
| 45 | Hexagon nut | 971072 | 1 | Alt |
| 45 | Lock nut | 971084 | 1 | Alt |
| 46 | Brake lining kit | 854255 | 1 | *with asbestosfree brake linings marked Volvo 22EE. *with asbestosfree brake linings marked Volvo 22EE., Std D |
| 46 | Brake lining kit | 3091459 | 1 | *with asbestosfree brake linings marked Volvo 43., ÖD 1,5mm |
| 47 | Rivet | 1620004 | 1 | |
| 14C | Adjusting device | 3090997 | 1 | Manually adjustable., V, SN29286- |
| 15A | Brake shoe kit | 3090076 | 1 | |
| 24A | Spring | 8150789 | 1 | V, märkt/marked 36 |
| Item | Part Name | Part No. |
| 5 | Cross shaft 272910 | 272910 |
| Details | |
| Application | Wheel Brake ( Z-CAM) Rear Axle Direction: A Wheel Brake ( Z-CAM) Rear Axle Direction: B |
