Flat key 909350

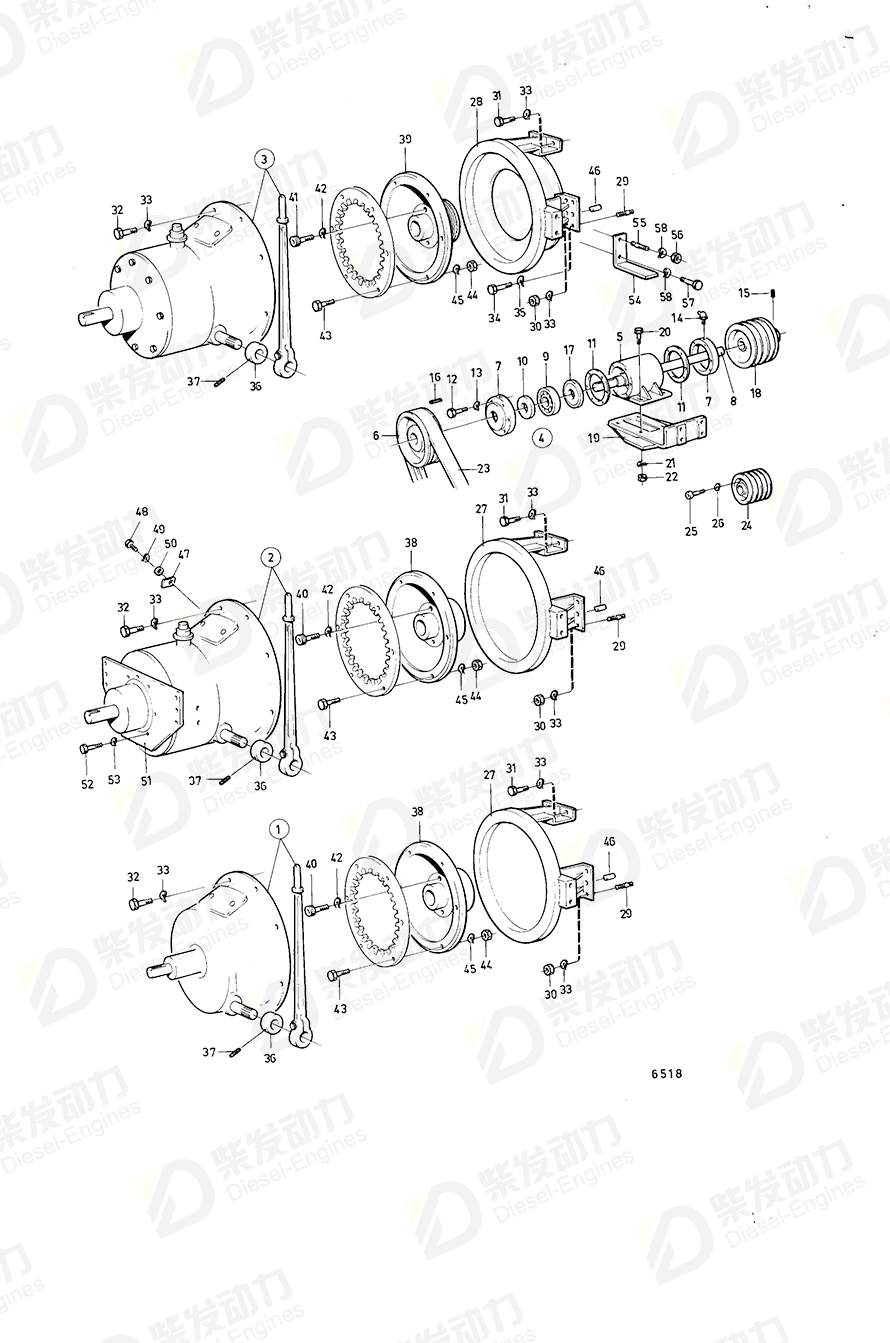

| No. | Part Name | Part Number | Qty | Description |
| 1 | Clutch | 815263 | 1 | PTA 4860 |
| 1 | Power take-off | 820802 | 1 | Rockford BW 10'' |
| 2 | Reduction gear | 815261 | 1 | Rockford BW 8'' |
| 2 | Friction clutch | 820803 | 1 | Rockford BW 10'' |
| 3 | Clutch | 845705 | 1 | Twin Disc SP-211-HP3 |
| 4 | Drive outlet | 837463 | 1 | |
| 5 | Bearing housing | 837438 | 1 | |
| 6 | Pulley | 837467 | 1 | |
| 7 | Cover | 837439 | 2 | |
| 8 | Shaft | 837465 | 1 | |
| 9 | Roller bearing | 183719 | 2 | |
| 10 | Sealing ring | 958876 | 2 | |
| 11 | Gasket | 837440 | 2 | |
| 12 | Hexagon screw | 955513 | 12 | |
| 13 | Spring washer | 941906 | 12 | |
| 14 | Lubricating nipple | 914169 | 2 | |
| 15 | Set screw | 961206 | 1 | |
| 16 | Flat key | 909350 | 1 | L=140mm |
| 16 | Key | 963372 | 1 | L=180mm |
| 17 | Sealing ring | 946769 | 2 | |
| 19 | Bracket | 837470 | 1 | See group 2A |
| 20 | Hexagon screw | 100319 | 4 | |
| 21 | Washer | 955896 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 22 | Hexagon nut | 940157 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 23 | V-belt | 837466 | 1 | |
| 24 | Pulley | 837476 | 1 | Whendrive take off not is mounted with clutch 837494 |
| 25 | Hex. socket screw | 959188 | 12 | Whendrive take off not is mounted with clutch 837494 |
| 27 | Bell housing | 823121 | 1 | For 8'', 10'' |
| 28 | Power take-off | 837468 | 1 | For 11,5'' |
| 29 | Stud | 953282 | 6 | |
| 30 | Hexagon nut | 955827 | 6 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 31 | Hexagon screw | 955535 | 2 | |
| 32 | Hexagon screw | 940115 | 12 | |
| 33 | Spring washer | 942336 | 20 | |
| 34 | Hexagon screw | 940115 | 4 | |
| 35 | Spring washer | 942336 | 4 | |
| 36 | Stop ring | 803612 | 2 | |
| 37 | Set screw | 915590 | 4 | |
| 38 | Companion flange | 823079 | 1 | For 820803 |
| 38 | Companion flange | 823080 | 1 | For 820802. |
| 38 | Companion flange | 823081 | 1 | For 815263, 815261, 815257 |
| 39 | Companion flange | 842038 | 1 | |
| 40 | Hexagon screw | 955555 | 12 | L=83mm |
| 40 | Hex. socket screw | 956610 | 12 | For 820802., For 820803 |
| 41 | Hex. socket screw | 959188 | 12 | Whendrive take off not is mounted with clutch 837494 |
| 42 | Spring washer | 941907 | 12 | |
| 43 | Screw | 803672 | 6 | For 815263, 815261, 815257 |
| 43 | Hexagon screw | 955536 | 8 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 44 | Hexagon nut | 955827 | 6 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 45 | Spring washer | 942336 | 8 | |
| 45 | Toothed washer | 955950 | 6 | |
| 46 | Pin | 941510 | 2 | For Aquamatic drive unit and Duoprop drive unit. |
| 47 | Cover | 814927 | 1 | For 815261 |
| 48 | Cross recessed screw | 950021 | 1 | |
| 49 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 50 | Washer | 940090 | 1 | |
| 51 | Attaching plate | 815454 | 1 | For 815261 |
| 51 | Bracket | 820682 | 1 | For 820803 |
| 52 | Hexagon screw | 940135 | 8 | |
| 52 | Hexagon screw | 955525 | 8 | |
| 53 | Spring washer | 941907 | 8 | |
| 54 | Bracket | 837464 | 2 | |
| 55 | Stud | 953257 | 2 | L = 35 MM |
| 56 | Hexagon nut | 955835 | 2 | |
| 57 | Hexagon screw | 940114 | 2 | |
| 58 | Spring washer | 942336 | 4 |
| Item | Part Name | Part No. |
| 16 | Flat key 909350 | 909350 |
| Details | |
| Engine model | TAD120CHC TD100CHC TD100CRC TD120BHC TD120BRC |
| Application | Clutch with Installation Components Clutch with Installation Components: A Clutch with Installation Components: B |
| Specification | |
| Descriptions | L=140mm |
