Air inlet 849025

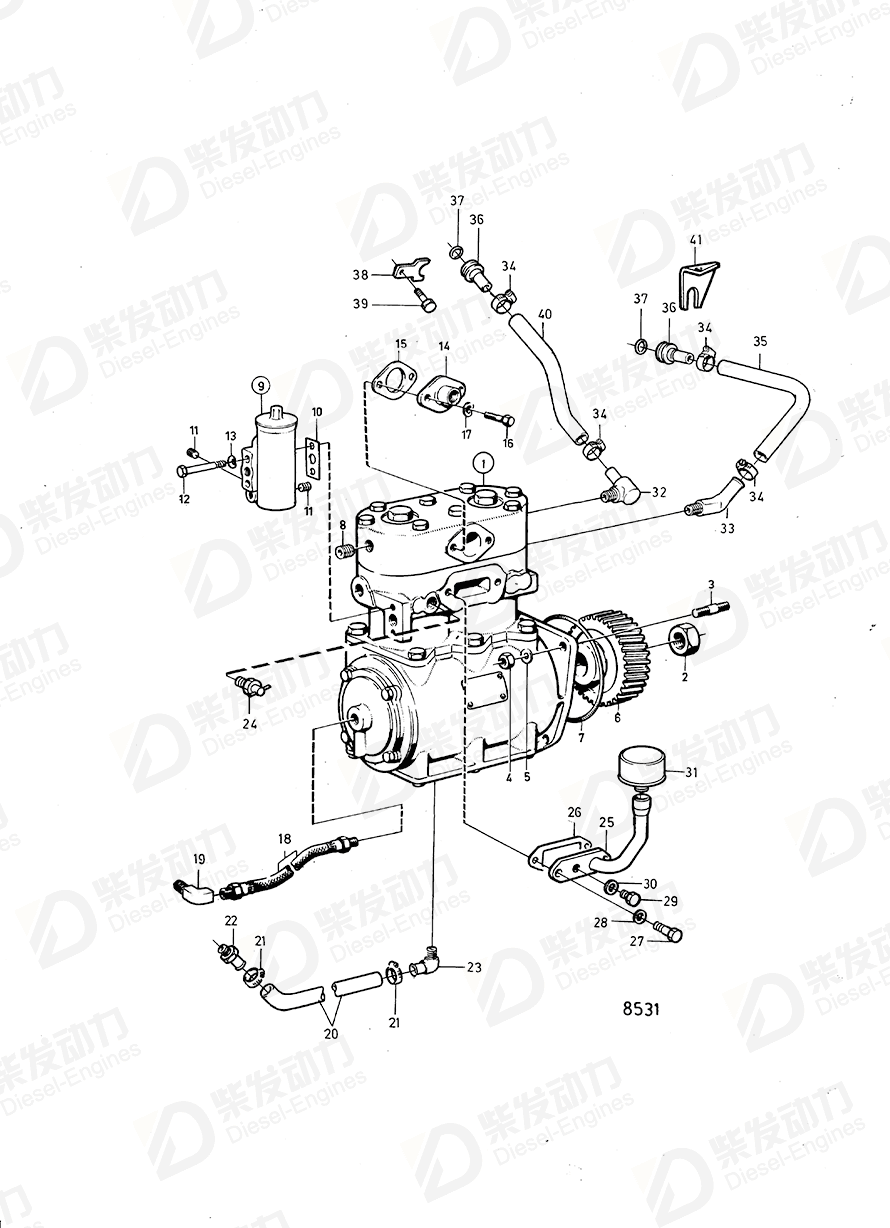

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1611815 | 1 | Also available as an exchange part. |
| 1 | Compressor, exch | 3803662 | 1 | Also available as an exchange part. |
| 2 | Nut | 346918 | 1 | |
| 3 | Stud | 967951 | 3 | |
| 4 | Hexagon nut | 971073 | 3 | |
| 5 | Spring washer | 941911 | 3 | |
| 7 | O-ring | 975610 | 1 | For engines without air compressor. |
| 8 | Plug | 479977 | 1 | |
| 9 | Governor | 1503492 | 1 | |
| 10 | Gasket | 324042 | 1 | |
| 11 | Plug | 191026 | 5 | |
| 12 | Hexagon screw | 955528 | 2 | |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Flange | 330634 | 1 | |
| 15 | Gasket | 1619957 | 1 | |
| 16 | Hexagon screw | 940135 | 2 | |
| 17 | Spring washer | 941907 | 2 | |
| 18 | Hose assembly | 1507501 | 1 | |
| 19 | Nipple | 180009 | 1 | |
| 20 | Hose | 941522 | 1 | (13799) L=45mm |
| 21 | Hose clamp | 943472 | 2 | |
| 22 | Hose nipple | 961653 | 1 | |
| 23 | Hose nipple | 961604 | 1 | MOXXXXX/31956- |
| 24 | Shut-off cock | 947894 | 1 | |
| 25 | Air inlet | 849025 | 1 | |
| 26 | Gasket | 324117 | 1 | |
| 27 | Hexagon screw | 955523 | 2 | |
| 28 | Spring washer | 941907 | 2 | |
| 29 | Plug | 960628 | 1 | |
| 30 | Gasket | 957173 | 1 | |
| 31 | Filter | 8152009 | 1 | (1082111) |
| 32 | Elbow nipple | 942240 | 1 | |
| 33 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 34 | Hose clamp | 943472 | 4 | |
| 35 | Hose | 941522 | 1 | (13799) L=45mm |
| 36 | Hose coupling | 849227 | 2 | |
| 37 | Rubber moulding | 471626 | 2 | |
| 38 | Brace | 849110 | 1 | |
| 39 | Flange screw | 965175 | 1 | |
| 40 | Hose | 941522 | 1 | (13799) L=45mm |
| 41 | Bracket | 849397 | 1 |
| Item | Part Name | Part No. |
| 25 | Air inlet 849025 | 849025 |
| Details | |
| Engine model | TD61A, TD61AW TD71A, TD71AW TID71A |
| Application | Air Compressor &TUFLO 500 and Installation Components |
