Compressor wheel 467414

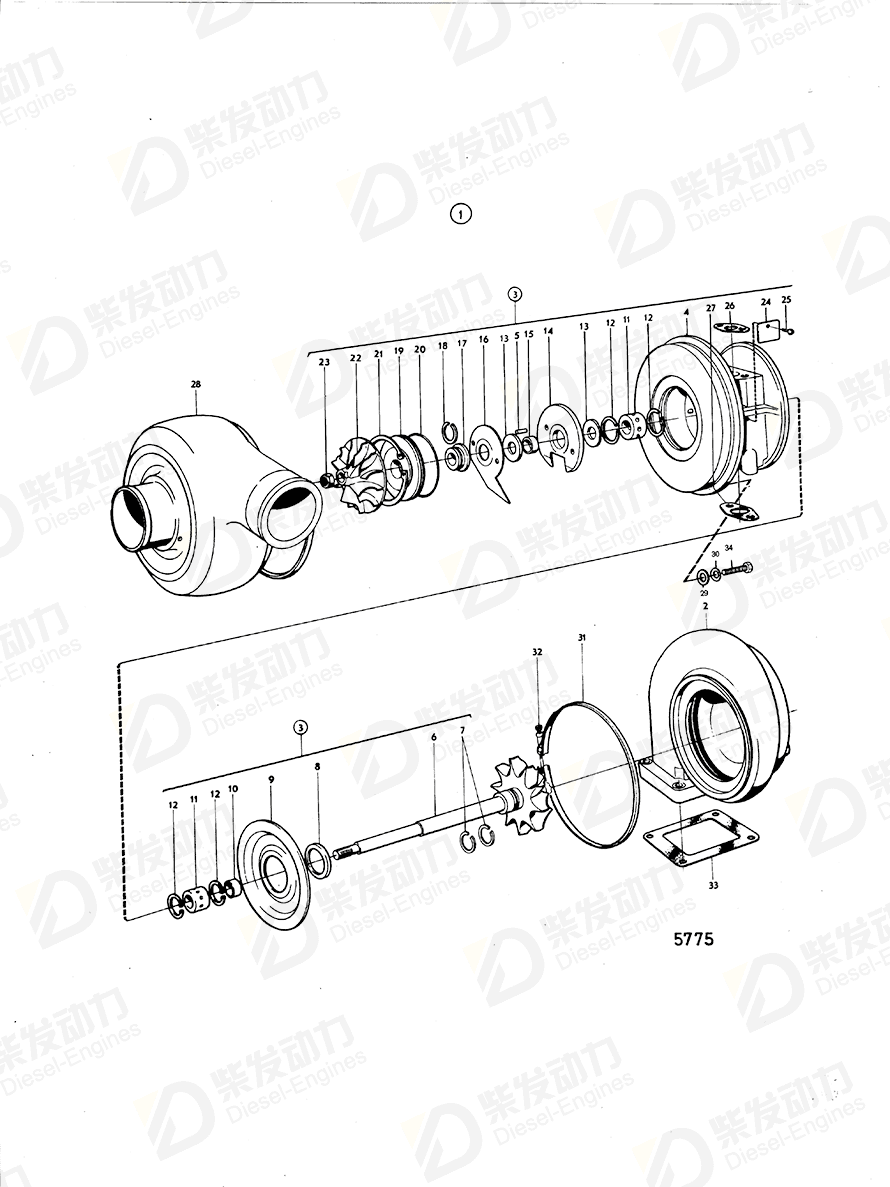

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 844450 | 1 | ALT CLASS |
| 3 | Rotor unit | 467412 | 1 | |
| 6 | Turbine rotor | 422659 | 1 | |
| 8 | Lock ring | 422360 | 1 | |
| 12 | Lock ring | 417727 | 4 | |
| 15 | Spacer sleeve | 422660 | 1 | |
| 16 | Splash plate | 422662 | 1 | |
| 17 | Ring retainer | 422661 | 1 | |
| 19 | Cover | 420466 | 1 | |
| 21 | Lock ring | 420467 | 1 | |
| 22 | Compressor wheel | 467414 | 1 | |
| 23 | Nut | 1518784 | 1 | (422669) |
| 26 | Gasket | 417378 | 1 | |
| 27 | Gasket | 417381 | 1 | |
| 29 | Washer | 420469 | 10 | |
| 30 | Spring washer | 411809 | 10 | |
| 31 | Clamp | 422667 | 1 | |
| 32 | Nut | 420473 | 1 | |
| 33 | Gasket | 417382 | 1 | |
| 34 | Repair kit | 273179 | 1 | |
| 34 | Screw | 420470 | 10 |
| Item | Part Name | Part No. |
| 22 | Compressor wheel 467414 | 467414 |
| Details | |
| Application | Turbo: 467369 Turbo: 837455 TURBO: 844450 Turbo: 845117 |
