Control sleeve 3825008

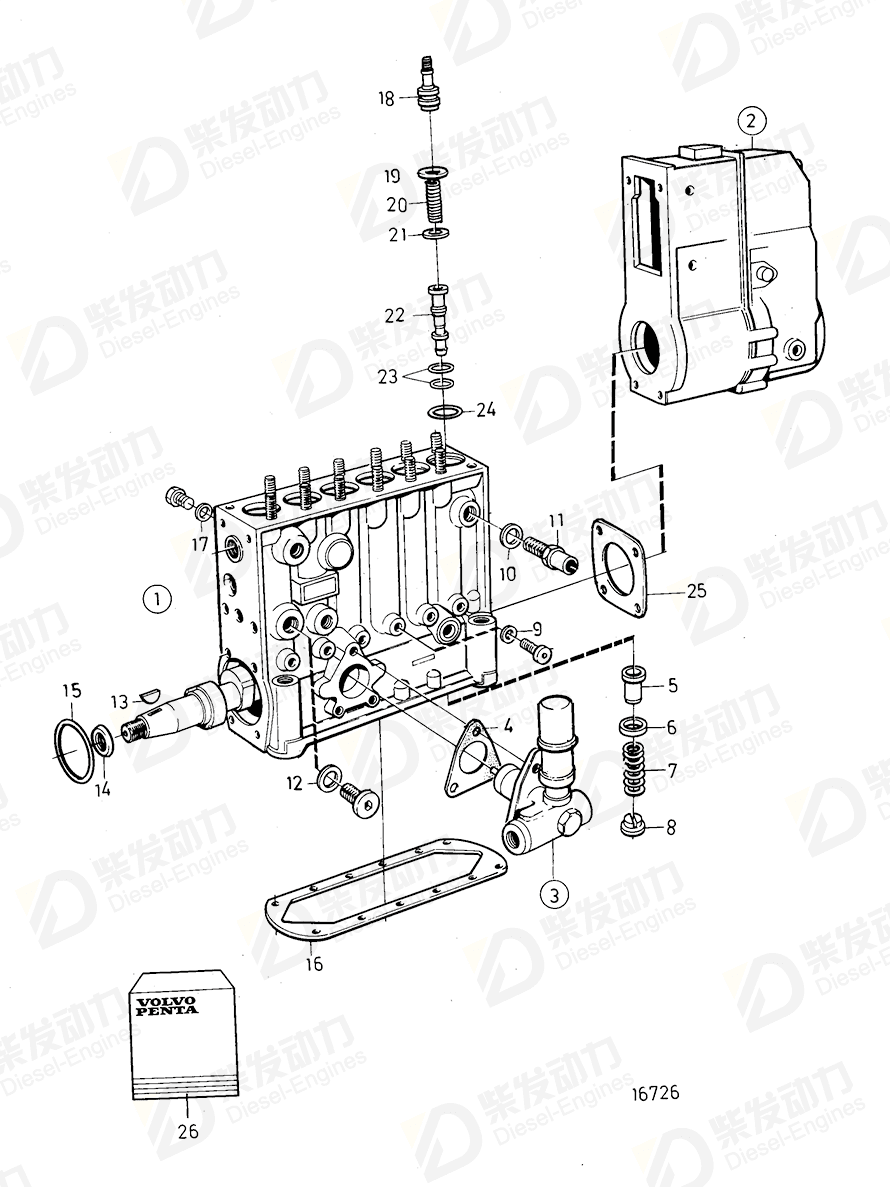

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 865559 | 1 | |
| 1 | Injection pump | 3803716 | 1 | For electric speed control., Std |
| 2 | Actuator | 3825454 | 1 | (866167) |
| 3 | Feed pump | 244825 | 1 | |
| 4 | Gasket | 863370 | 1 | |
| 5 | Control sleeve | 3825008 | 6 | |
| 6 | Spring disc | 239984 | 6 | |
| 7 | Compression spring | 244731 | 6 | (847277) |
| 8 | Spring disc | 244685 | 6 | (6211952) |
| 9 | Gasket | 18836 | 6 | |
| 10 | Gasket | 969011 | 1 | |
| 11 | Overflow valve | 3825154 | 1 | |
| 12 | Gasket | 240017 | 1 | Spec.867473 alt |
| 13 | Key | 35168 | 1 | |
| 14 | Camshaft seal | 864299 | 1 | |
| 15 | O-ring | 243299 | 1 | |
| 16 | Gasket | 1699581 | 1 | |
| 17 | Gasket | 969011 | 2 | |
| 18 | Retainer | 243742 | 6 | |
| 19 | O-ring | 240001 | 6 | |
| 20 | Compression spring | 862397 | 6 | |
| 21 | Sealing washer | 239993 | 6 | |
| 22 | Pump element | 3825003 | 6 | |
| 23 | O-ring | 240422 | 12 | |
| 25 | Gasket | 1698168 | 1 | (240037) |
| 26 | Repair kit | 845240 | 1 | See group 10A |
| Item | Part Name | Part No. |
| 5 | Control sleeve 3825008 | 3825008 |
| Details | |
| Application | Fuel Injection Pump, Components Fuel Injection Pump, Components: 3827139 Fuel Injection Pump, Components: 3827212 Fuel Injection Pump, Components: 3832371 |
