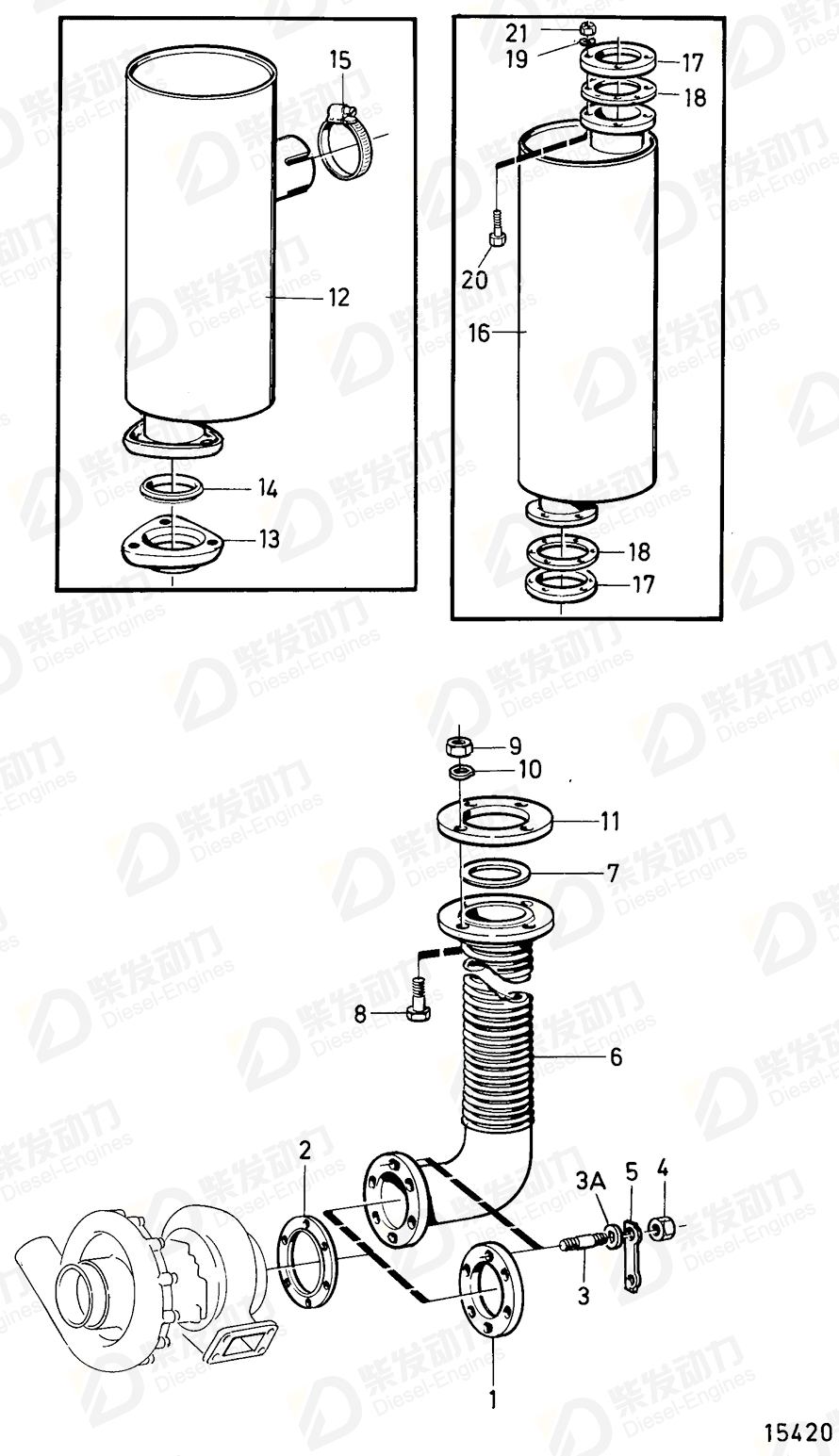

Exhaust hose 3826557
| No. | Part Name | Part Number | Qty | Description |
| 1 | Flange | 330287 | 1 | TD60B spec. 867618, 867648., Used when expansion tank 351579 is mounted, Replaced by 1pc 843088 and 8PCS 955365. |
| 2 | Gasket | 424627 | 1 | (924077) |
| 3 | Stud | 479971 | 6 | |
| 4 | Hexagon nut | 943927 | 6 | |
| 5 | Tab washer | 15193 | 3 | |
| 6 | Exhaust hose | 3826557 | 1 | 5'' |
| 7 | Gasket | 862594 | 1 | (807578) |
| 8 | Hexagon screw | 955368 | 4 | |
| 9 | Hexagon nut | 955785 | 4 | |
| 10 | Spring washer | 941912 | 4 | |
| 11 | Flange | 807625 | 1 | |
| 12 | Silencer | 475961 | 1 | Alt |
| 13 | Flange | 364724 | 1 | |
| 14 | Sealing ring | 364726 | 1 | |
| 15 | Clamp | 967960 | 1 | |
| 16 | Silencer | 836257 | 1 | |
| 17 | Weld flange | 846414 | 2 | |
| 18 | Gasket | 862977 | 2 | |
| 19 | Spring washer | 941912 | 16 | |
| 21 | Hexagon nut | 955785 | 16 | |
| 3A | Washer | 976945 | 6 |
| Item | Part Name | Part No. |
| 6 | Exhaust hose 3826557 | 3826557 |
| Details | |
| Engine model | TAD1230G, TAD1231GE, TAD1232GE TD1210G, TWD1210G TD121G-87, TWD1210V TWD1211G TWD1211V, TAD1230V TWD1230VE, TWD1231VE |
| Application | Silencer and Exhaust Pipe: A Silencer and Exhaust Pipe: B Silencer and Exhaust Pipe: C |
| Specification | |
| Descriptions | 5'' L=475mm |
