Fan hub 3829422

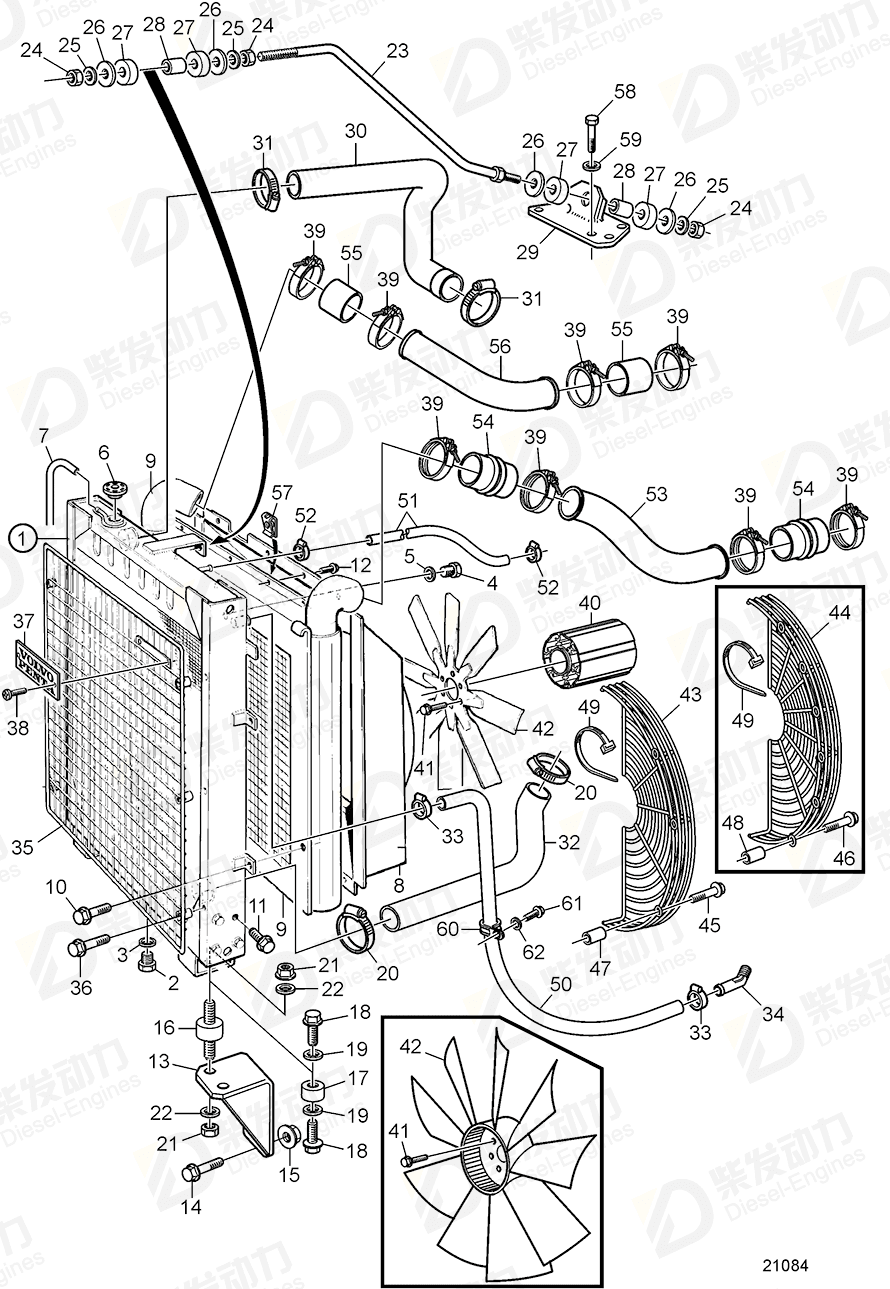

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 866092 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Plug | 947660 | 1 | (836268) |
| 5 | Gasket | 11994 | 1 | |
| 6 | Pressure cap | 866095 | 1 | (350578) |
| 7 | Hose | 192618 | 1 | L=1400mm |
| 8 | Fan shroud | 866094 | 1 | SN-XXXXXXXXXX/277519 |
| 8 | Fan shroud | 3825748 | 1 | SNXXXXXXXXXX/277520- |
| 9 | Charge air cooler | 866093 | 1 | |
| 10 | Flange screw | 946173 | 4 | |
| 11 | Flange screw | 973924 | 8 | |
| 12 | Flange screw | 966862 | 8 | |
| 13 | Radiator bracket | 865785 | 2 | |
| 14 | Flange screw | 946817 | 4 | |
| 15 | Flange nut | 971096 | 4 | |
| 16 | Rubber cushion | 849170 | 2 | |
| 17 | Spacer | 866856 | 2 | When rubber cushions not been used for the radiator. |
| 18 | Flange screw | 946502 | 4 | When rubber cushions not been used for the radiator., L=20mm |
| 19 | Spring washer | 940280 | 4 | |
| 20 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 21 | Hexagon nut | 955850 | 4 | |
| 22 | Spring washer | 940280 | 4 | |
| 23 | Radiator stay | 865181 | 1 | |
| 24 | Hexagon nut | 955793 | 3 | |
| 25 | Spring washer | 941912 | 3 | |
| 26 | Washer | 191940 | 4 | |
| 27 | Rubber bushing | 866857 | 4 | |
| 28 | Spacer sleeve | 252202 | 2 | |
| 29 | Anchorage | 1660904 | 1 | |
| 30 | Hose, therm. housing | 865283 | 1 | |
| 31 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 32 | Hose, cool. water pipe | 865284 | 1 | |
| 33 | Elbow nipple | 942240 | 1 | |
| 33 | Hose clamp | 994560 | 2 | |
| 34 | Elbow nipple | 942649 | 1 | |
| 35 | Radiator protector | 865159 | 1 | |
| 36 | Flange screw | 947760 | 6 | M8x40mm |
| 37 | Emblem | 846118 | 1 | |
| 38 | Screw | 941651 | 2 | |
| 39 | Hose clamp | 865575 | 8 | |
| 40 | Fan hub | 865768 | 1 | |
| 40 | Fan hub | 3829422 | 1 | For plasticfan |
| 41 | Flange screw | 946472 | 6 | |
| 41 | Flange screw | 965187 | 6 | |
| 42 | Fan, pusher type | 865324 | 1 | D=750mm |
| 42 | Fan | 3827492 | 1 | Pusher type. |
| 43 | Fan protector | 865883 | 2 | SN-XXXXXXXXXX/277519 |
| 44 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 45 | Flange screw | 945444 | 4 | |
| 46 | Flange screw | 945444 | 12 | |
| 47 | Spacer sleeve | 842350 | 4 | For bracket 829839 with 8 holes. |
| 48 | Spacer washer | 946048 | 12 | |
| 49 | Cable tie | 948211 | 1 | |
| 50 | Rubber hose | 944386 | 1 | |
| 51 | Rubber hose | 943367 | 1 | L=1700mm |
| 52 | Hose clamp | 994556 | 2 | |
| 53 | Charge air pipe, turbo | 865183 | 1 | |
| 54 | Charge air hose | 865127 | 2 | |
| 55 | Charge air hose | 865128 | 2 | |
| 56 | Charge air pipe, induction manifold | 865184 | 1 | |
| 58 | Hexagon screw | 955523 | 4 | |
| 59 | Spring washer | 941907 | 4 | |
| 60 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 61 | Six point socket scr | 972603 | 1 | |
| 62 | Washer | 960138 | 1 |
| Item | Part Name | Part No. |
| 40 | Fan hub 3829422 | 3829422 |
| Details | |
| Engine model | TAD1030GE TAD1030V TAD1031GE TAD1032GE TD640VE TWD740GE, TAD740GE, TAD741GE |
| Application | Fan Fan SN 2071145378- Radiator and Fan Radiator and Fan: A Radiator and Fan: B |
| Specification | |
| Descriptions | For engines with suction type fan and 0.65sqm cooling system. For plastic fan For plasticfan L=350mm SN2071165481- |
Related Products
Tags: Fan hub, Volvo Penta, 3829422
