Fan hub 3883329

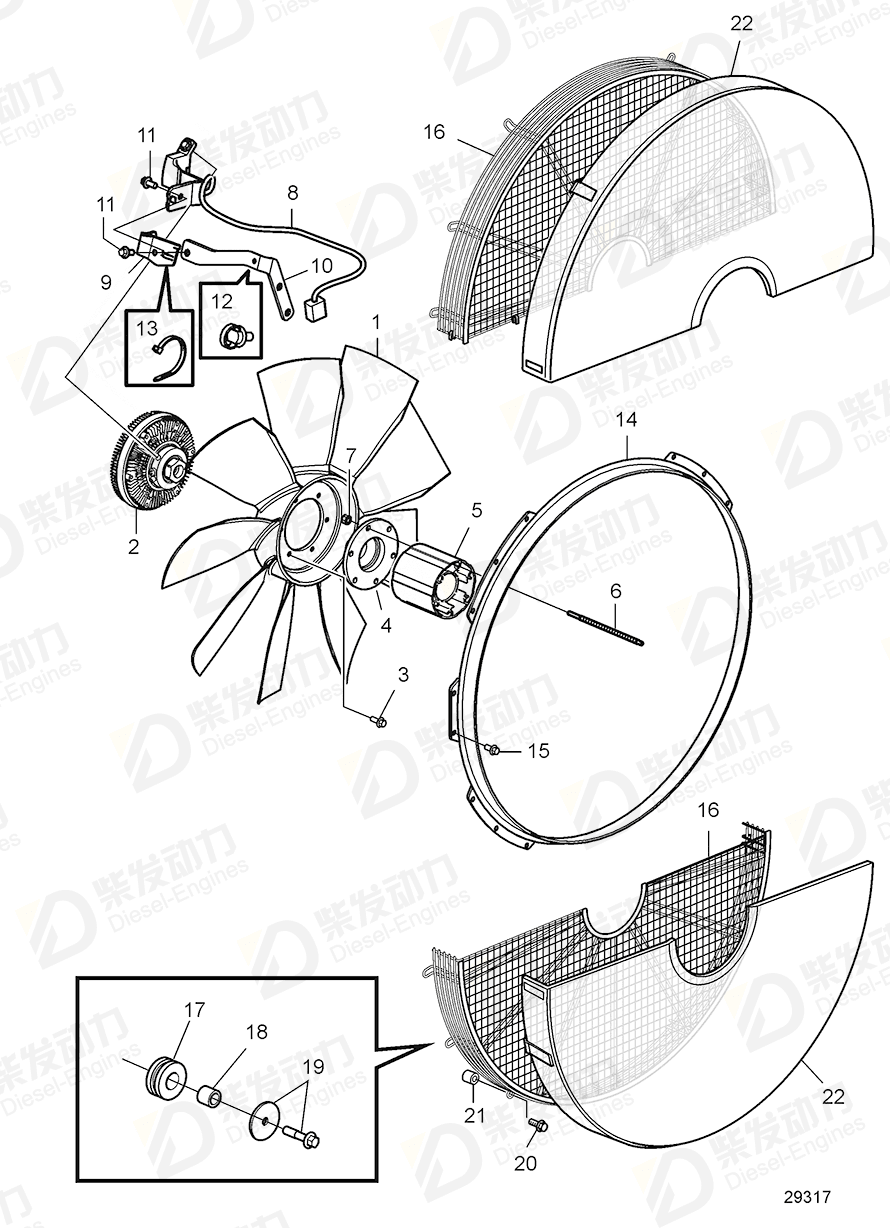

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 3595217 | 1 | Pushing fan |
| 2 | Clutch | 21968941 | 1 | |
| 3 | Six point screw | 21318856 | 6 | |
| 4 | Adapter | 21305942 | 1 | |
| 5 | Fan hub | 3883329 | 1 | L=150mm |
| 6 | Stud | 969199 | 6 | |
| 7 | Flange lock nut | 990951 | 6 | |
| 8 | Sensor | 21315240 | 1 | For Visco fan and all other fans |
| 9 | Bracket | 21303458 | 1 | |
| 10 | Bracket | 21868019 | 1 | |
| 11 | Flange screw | 984733 | 2 | |
| 12 | Cable tie | 980881 | 1 | |
| 13 | Cable tie | 948702 | 3 | |
| 14 | Fan ring | 3827612 | 1 | |
| 14 | Fan ring | 78467816 | 1 | For Fan guard 78467466 |
| 15 | Flange screw | 984733 | 10 | |
| 16 | Fan guard | 22389861 | 2 | Replaced by 78467466 |
| 16 | Fan guard | 78467466 | 1 | |
| 17 | Rubber damper | 21860181 | 12 | |
| 18 | Spacer sleeve | 845988 | 12 | |
| 19 | Flange screw | 22147274 | 12 | |
| 20 | Flange screw | 984734 | 12 | |
| 21 | Washer | 976944 | 12 | |
| 22 | Air filter | 22036546 | 1 | |
| 22 | Filter netting | 78467607 | 1 | For Fan guard 78467466 |
| Item | Part Name | Part No. |
| 5 | Fan hub 3883329 | 3883329 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE |
| Application | Fan and Fan Ring. D=890mm. Pushing. Visco Fan and Fanring |
| Specification | |
| Descriptions | L=150mm |
