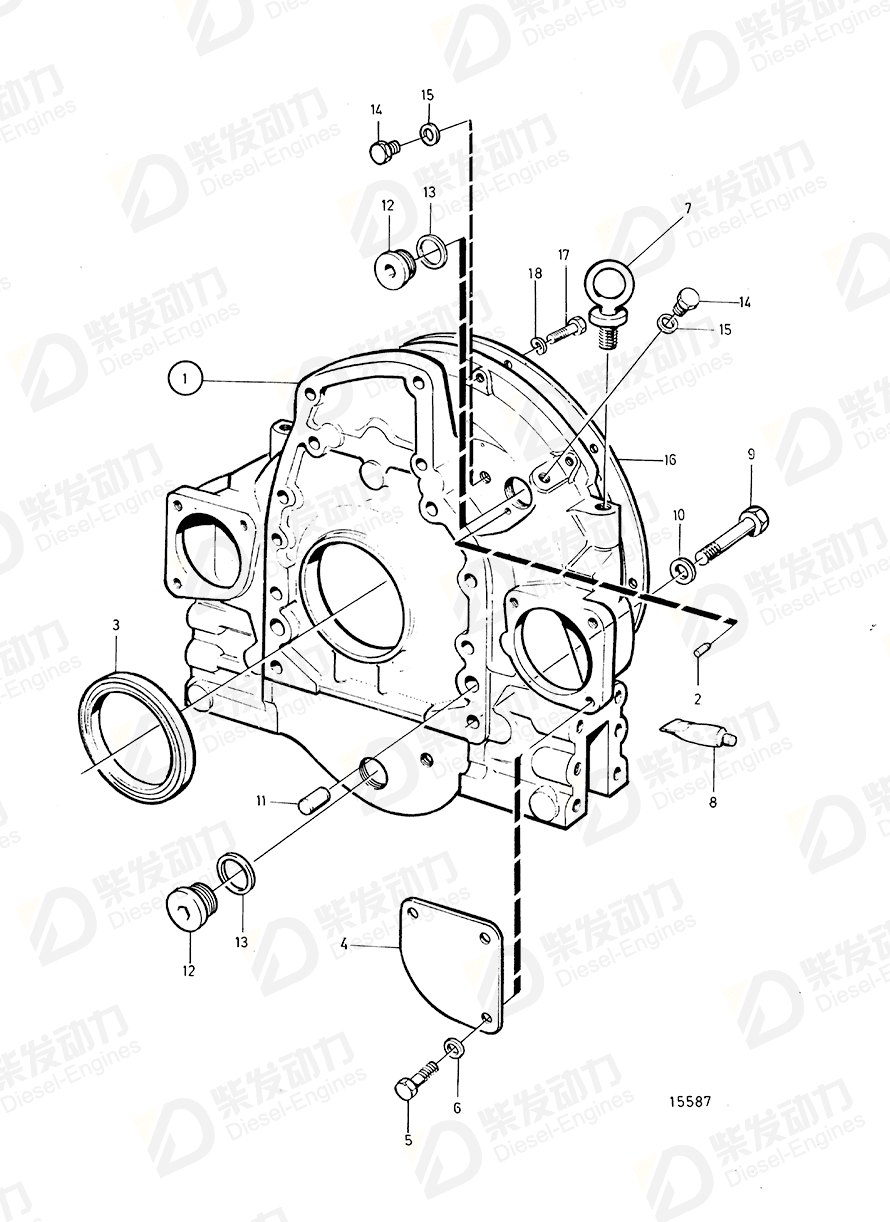

Flywheel housing 848961
| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 848961 | 1 | SAE 1 |
| 3 | Crankshaft seal | 20441697 | 1 | |
| 4 | Cover | 423081 | 1 | |
| 5 | Hexagon screw | 940114 | 3 | |
| 6 | Spring washer | 942336 | 7 | |
| 7 | Lifting eye | 942345 | 2 | |
| 8 | Sealant | 1161231 | 1 | 304ml |
| 8 | Sealant | 1161277 | 1 | 20g |
| 10 | Spring washer | 941911 | 12 | |
| 11 | Pin | 191171 | 2 | |
| 12 | Plug | 467365 | 2 | |
| 13 | Gasket | 469327 | 2 | |
| 14 | Plug | 180761 | 2 | |
| 17 | Hexagon screw | 940160 | 12 | SAE1-2 |
| 17 | Hexagon screw | 955549 | 2 | AQ170B MOXXXX/87713-., L=45mm |
| 17 | Hexagon screw | 955550 | 2 | BB170B MOXXXX/89353-., L=51mm |
| 18 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| Item | Part Name | Part No. |
| 1 | Flywheel housing 848961 | 848961 |
| Details | |
| Engine model | TAD1030G, TD1010G, TWD1010G TAD1030GE, TAD1031GE, TAD1032GE TAD1030V TAD121CHC TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD100CHC TD100CRC TD100G-87 TD1030ME TD1030VE, TWD1031VE TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87, TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TD121CHC TD121CRC TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TID121FG TWD1030ME TWD1230ME |
| Application | Flywheel Housing Flywheel Housing: A Flywheel Housing: B Flywheel Housing: C |
| Specification | |
| Descriptions | Ambac SAE 1 Std |
