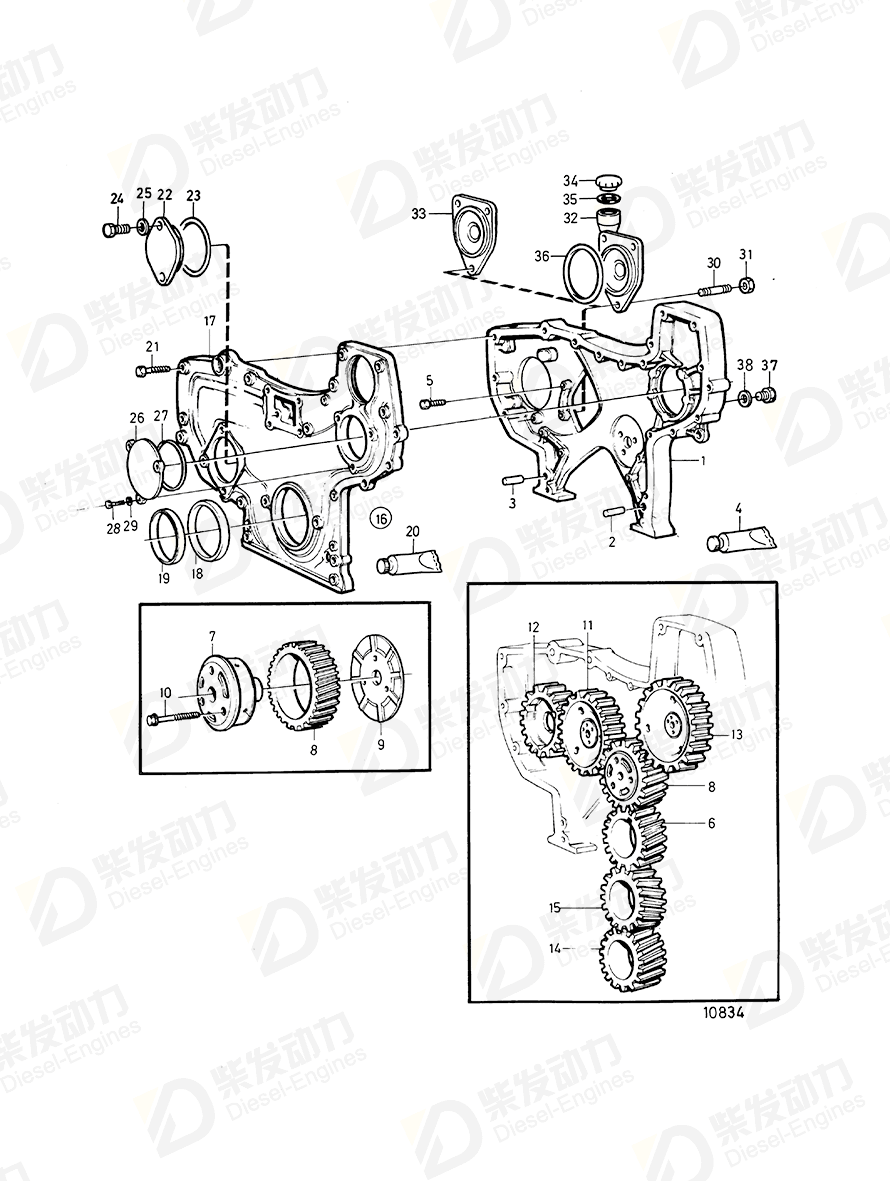

Gear, fuel inj. pump 465870
| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 465797 | 1 | |
| 2 | Pin | 941511 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 3 | Pin | 941510 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 4 | Sealant | 1161231 | 1 | 304ml |
| 5 | Flange screw | 471534 | 2 | |
| 5 | Flange screw | 471535 | 2 | L=58mm |
| 6 | Gear, crankshaft | 471528 | 1 | |
| 7 | Bearing spindle | 422766 | 1 | (467463) |
| 8 | Gear | 8192518 | 1 | (471552) |
| 9 | Thrust washer | 467529 | 1 | MO-608/XXXX. |
| 10 | Flange screw | 471554 | 3 | |
| 12 | Gear | 423087 | 1 | |
| 12 | Gear | 478289 | 1 | |
| 13 | Gear, fuel inj. pump | 465870 | 1 | |
| 14 | Gear, oil pump | 471941 | 1 | |
| 15 | Idler gear, oil pump | 471942 | 1 | |
| 16 | Cover | 8192590 | 1 | (8192052) (471562) |
| 18 | Sealing ring | 477118 | 1 | (471055) |
| 20 | Sealant | 1161231 | 1 | 304ml |
| 21 | Flange screw | 947760 | 7 | M8x40mm |
| 21 | Flange screw | 948217 | 2 | |
| 21 | Flange screw | 965182 | 6 | |
| 21 | Flange screw | 965183 | 1 | |
| 21 | Flange screw | 965216 | 1 | |
| 22 | Cover | 465735 | 1 | (465057) |
| 23 | O-ring | 925094 | 1 | Included in gasket kit 876025 for induction manifold+intercooler. |
| 24 | Flange screw | 946472 | 1 | |
| 24 | Flange screw | 965187 | 1 | |
| 25 | Washer | 955895 | 2 | |
| 26 | Cover | 471559 | 1 | |
| 27 | O-ring | 925257 | 1 | |
| 28 | Flange screw | 945444 | 3 | |
| 29 | Spring washer | 941907 | 3 | |
| 30 | Stud | 967951 | 3 | |
| 31 | Flange nut | 971097 | 3 | |
| 32 | Oil filler pipe | 849197 | 1 | |
| 33 | Cover | 420178 | 1 | |
| 34 | Oil filler cap | 421753 | 1 | |
| 35 | Gasket | 940096 | 1 | |
| 36 | O-ring | 975610 | 1 | For engines without air compressor. |
| 37 | Plug | 960632 | 1 | |
| 38 | Gasket | 947624 | 1 |
| Item | Part Name | Part No. |
| 13 | Gear, fuel inj. pump 465870 | 465870 |
| Details | |
| Engine model | TD610G, TWD610G TD610M TD610M, TD630ME TD610V TD610V, TWD610V, TD630VE TD61A TD61ACE TD61AG TD61AP TD61AW TD630ME TD630VE TID61AG TWD610P TWD610V |
| Application | Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter. Standard Fuel System: C Fuel System: A Fuel System: B Fuel System: C Fuel System: TD61AGP Fuel System: TD61APB Fuel System: TID61AGP Injection Pump, Fuel Filter and Shut-off Valve Timing Gear Casing and Gears Timing Gear Casing and Gears: A |
