Flange screw 946502

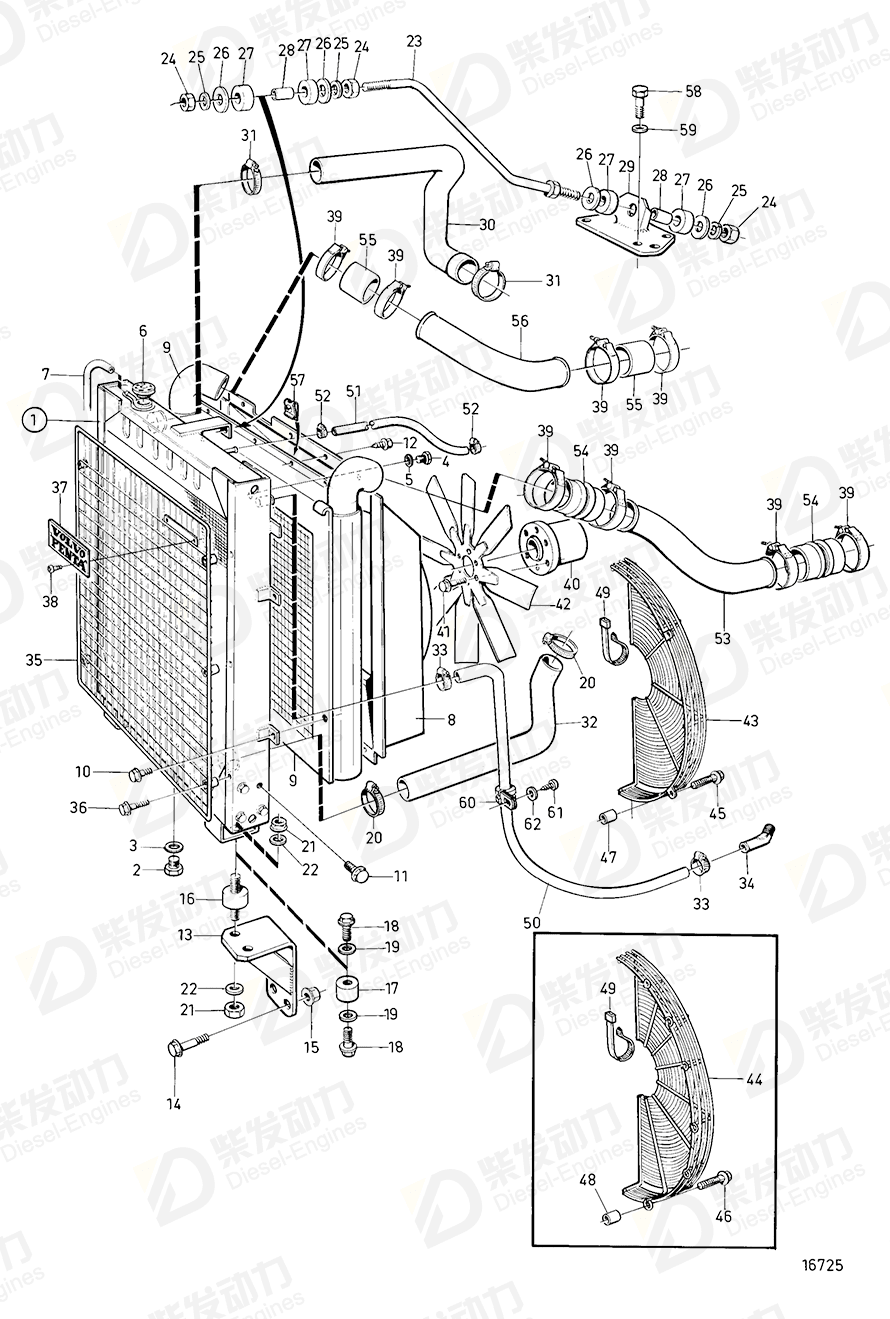

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 866092 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Plug | 947660 | 1 | (836268) |
| 5 | Gasket | 11994 | 1 | |
| 6 | Pressure cap | 866095 | 1 | (350578) |
| 7 | Hose | 192618 | 1 | L=1400mm |
| 8 | Fan shroud | 866094 | 1 | SN-XXXXXXXXXX/277519 |
| 8 | Fan shroud | 3825748 | 1 | SNXXXXXXXXXX/277520- |
| 9 | Charge air cooler | 866093 | 1 | |
| 10 | Flange screw | 946173 | 4 | |
| 11 | Flange screw | 965179 | 8 | |
| 12 | Flange screw | 966862 | 8 | |
| 13 | Radiator bracket | 865785 | 2 | |
| 14 | Flange screw | 946817 | 4 | |
| 15 | Flange nut | 971096 | 4 | |
| 16 | Rubber cushion | 849170 | 2 | |
| 17 | Spacer | 866856 | 2 | When rubber cushions not been used for the radiator. |
| 18 | Flange screw | 946502 | 4 | When rubber cushions not been used for the radiator., L=20mm |
| 19 | Spring washer | 940280 | 4 | |
| 20 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 21 | Hexagon nut | 955850 | 4 | |
| 22 | Spring washer | 940280 | 4 | |
| 23 | Radiator stay | 865181 | 1 | |
| 24 | Hexagon nut | 955793 | 3 | |
| 25 | Spring washer | 941912 | 3 | |
| 26 | Washer | 191940 | 4 | |
| 27 | Rubber bushing | 866857 | 4 | |
| 28 | Spacer sleeve | 252202 | 2 | |
| 29 | Anchorage | 1660904 | 1 | |
| 30 | Hose, therm. housing | 865283 | 1 | |
| 31 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 32 | Hose, cool. water pipe | 865284 | 1 | |
| 33 | Hose clamp | 994560 | 2 | |
| 34 | Elbow nipple | 942649 | 1 | |
| 35 | Radiator protector | 865159 | 1 | |
| 36 | Flange screw | 947760 | 6 | M8x40mm |
| 37 | Emblem | 846118 | 1 | |
| 38 | Screw | 941651 | 2 | |
| 39 | Hose clamp | 865575 | 8 | |
| 40 | Fan hub | 865768 | 1 | |
| 41 | Flange screw | 946472 | 6 | |
| 42 | Fan, pusher type | 865324 | 1 | D=750mm |
| 43 | Fan protector | 865883 | 2 | SN-XXXXXXXXXX/277519 |
| 44 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 45 | Flange screw | 945444 | 4 | |
| 46 | Flange screw | 945444 | 12 | |
| 47 | Spacer sleeve | 842350 | 4 | For bracket 829839 with 8 holes. |
| 48 | Spacer washer | 946048 | 12 | |
| 49 | Cable tie | 948211 | 1 | |
| 50 | Rubber hose | 944386 | 1 | |
| 51 | Rubber hose | 943366 | 1 | L=600mm late type |
| 52 | Hose clamp | 994556 | 2 | |
| 53 | Charge air pipe, turbo | 865183 | 1 | |
| 54 | Charge air hose | 865127 | 2 | |
| 55 | Charge air hose | 865128 | 2 | |
| 56 | Charge air pipe, induction manifold | 865184 | 1 | |
| 58 | Hexagon screw | 955523 | 4 | |
| 59 | Spring washer | 941907 | 4 | |
| 60 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 61 | Six point socket scr | 972603 | 1 | |
| 62 | Washer | 960138 | 1 |
| Item | Part Name | Part No. |
| 18 | Flange screw 946502 | 946502 |
| Details | |
| Engine model | TAD1030G TAD1030GE TAD1030P TAD1030V TAD1031GE TAD1032GE TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TAD1240GE, TAD1241GE, TAD1242GE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE TAD1350VE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1640GE, TAD1641GE, TAD1642GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1640GE, TAD1641GE, TAD1642GE, TWD1643GE TAD1641VE, TAD1642VE, TAD1643VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1641VE, TAD1642VE, TAD1643VE, TAD1660VE, TAD1661VE, TAD1662VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1650GE, TAD1651GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1650VE TAD1650VE, TAD1660VE, TAD1661VE, TAD1662VE TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE TD610V, TWD610V, TWD630VE, TD640VE TD61AP TD71A, TWD710V, TWD731VE, TAD730V TD71AP, TID71AP TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD610P TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TWD710P, TAD730P TWD740VE |
| Application | Air Compressor Vabco 318. 1 Cylinder Air Compressor Wabco 636 Alternator, Single Mounted Belt Guard Belt Guard. SN-2016080035. Engine Heater, Separately Mounted Extra Alternator 24V/150A Flywheel Housing Fuel System SN2016008441- SN2016045622 Heat Shield for Exhaust Manifold and Valve Cover Power Take off Radiator and Fan Radiator and Fan: A Radiator and Fan: B Silencer and Installation Components, &Power &Pack Silencer and Installation Components,&Power&pack: A Silencer and Installation Components,&Power&pack: TD61APB Silencer, Engine Mounted Silencer, Engine Mounted: A Silencer, Engine Mounted: B Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN-2016064436 |
| Specification | |
| Descriptions | L=20mm Only for TWD1643GE When rubber cushions not been used for the radiator. When rubber cushions not been used for the radiator., L=20mm |
