Bracket 848384

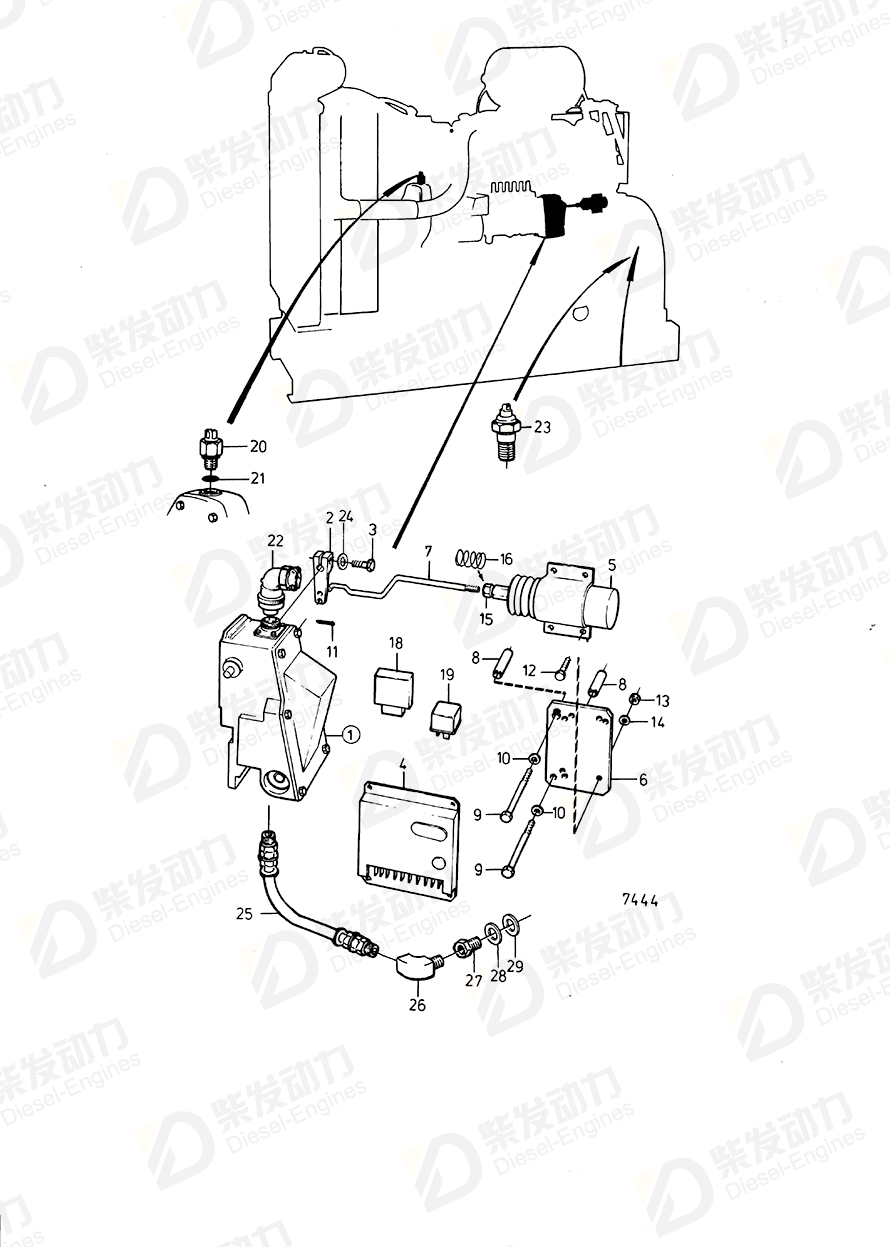

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Actuator |
846377 |
1 |
Replaced by actuator 3825454., Mounting kit 834554 deleted., AGB 250A-3 |
| 2 |
Intermediate lever |
846426 |
1 |
|
| 3 |
Hexagon screw |
955637 |
1 |
|
| 4 |
Control unit |
846378 |
1 |
|
| 5 |
Magnet |
881532 |
1 |
24V later prod |
| 6 |
Bracket |
848384 |
1 |
|
| 7 |
Pull link |
848386 |
1 |
|
| 8 |
Spacer sleeve |
848385 |
2 |
L=80mm |
| 9 |
Hexagon screw |
955572 |
2 |
|
| 10 |
Spring washer |
940280 |
2 |
|
| 11 |
Split pin |
907824 |
1 |
|
| 12 |
Hexagon screw |
955271 |
4 |
|
| 13 |
Lock nut |
946035 |
4 |
|
| 14 |
Spring washer |
941906 |
4 |
|
| 15 |
Hexagon nut |
955857 |
1 |
|
| 16 |
Return spring |
847009 |
1 |
|
| 18 |
Runaway monitor |
843910 |
1 |
|
| 19 |
Relay |
1504951 |
1 |
For instrument panel 841096 and 841097., 24Vlate production. |
| 21 |
O-ring |
925059 |
1 |
AQ115A compression 8,4:1. |
| 22 |
Contact |
846580 |
1 |
|
| 23 |
Sensor |
834551 |
1 |
|
| 24 |
Washer |
955892 |
1 |
|
| 25 |
Hose assembly |
1507501 |
1 |
|
| 26 |
Elbow nipple |
180110 |
1 |
MO 26456-. |
| 27 |
Hollow screw |
942008 |
1 |
|
| 28 |
Gasket |
11998 |
1 |
|
| 29 |
Gasket |
18671 |
1 |
|
| Item |
Part Name |
Part No. |
| 6 |
Bracket 848384 |
848384 |
| Details |
| Engine model |
TD70G-83 |
| Application |
Electronic Speed Control and Stop Solenoid Type ''AMBAC'' |
