Bracket 862848

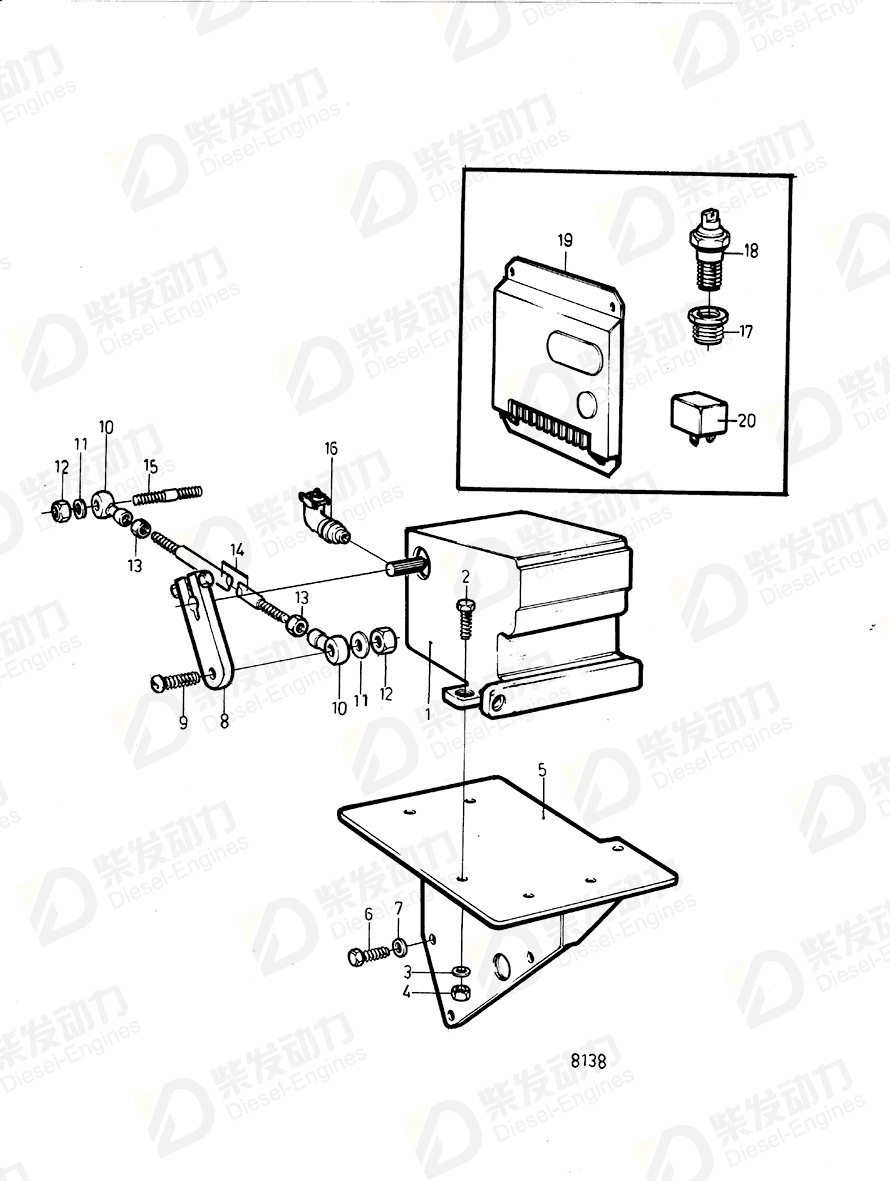

| No. | Part Name | Part Number | Qty | Description |
| 1 | Actuator | 863616 | 1 | |
| 2 | Hexagon screw | 955525 | 2 | |
| 3 | Spring washer | 941907 | 2 | |
| 4 | Hexagon nut | 955826 | 2 | |
| 5 | Bracket | 849117 | 1 | Early type |
| 5 | Bracket | 862848 | 1 | |
| 6 | Hexagon screw | 940114 | 3 | |
| 7 | Spring washer | 942336 | 3 | |
| 8 | Lever | 849654 | 1 | Repl by 866812 |
| 9 | Hexagon screw | 955248 | 1 | |
| 10 | Link end | 834681 | 2 | |
| 11 | Washer | 940090 | 2 | |
| 12 | Lock nut | 963104 | 2 | |
| 13 | Hexagon nut | 955780 | 2 | |
| 14 | Control rod | 942412 | 1 | |
| 15 | Stud | 849727 | 1 | |
| 16 | Contact | 846580 | 1 | |
| 17 | Bushing | 846717 | 1 | |
| 18 | Impulse sensor | 863618 | 1 | |
| 19 | Control unit | 849607 | 1 | (863617) |
| 20 | Transient protector, control unit | 849394 | 1 | |
| 20 | Transient protector, stop solenoid | 849395 | 1 |
| Item | Part Name | Part No. |
| 5 | Bracket 862848 | 862848 |
| Details | |
| Engine model | TID121KG, TID121KGP, TID121LG, TID121LGP TID121LGP-87 TWD1210G, TWD1211G |
| Application | Electronic Speed Control |
| Specification | |
| Descriptions | Late type |
