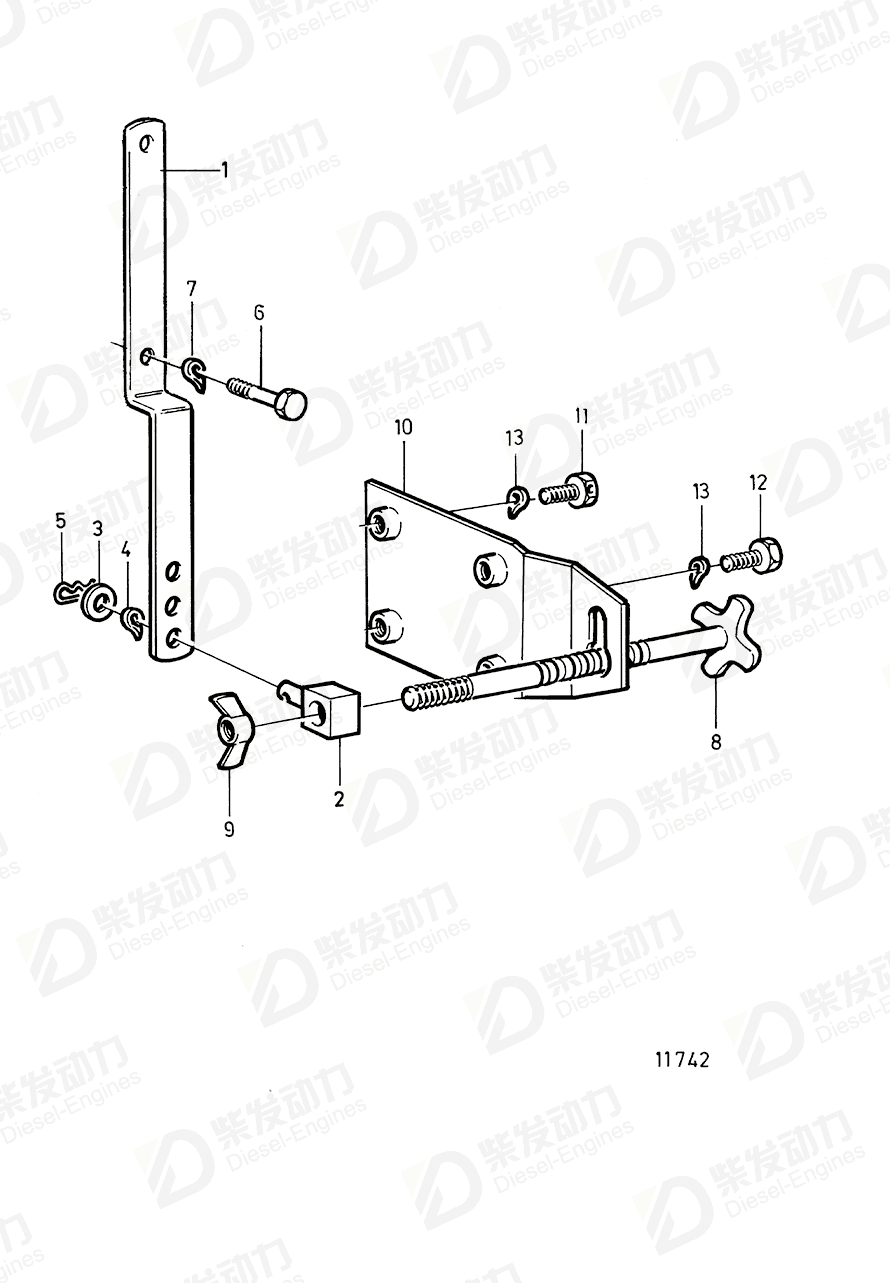

Bracket 863640
| No. | Part Name | Part Number | Qty | Description |
| 1 | Control arm | 823695 | 1 | Early type |
| 2 | Cube | 848236 | 1 | |
| 3 | Washer | 955892 | 1 | |
| 4 | Spring washer | 949607 | 1 | |
| 5 | Split pin | 664822 | 1 | |
| 6 | Hexagon screw | 955272 | 1 | |
| 7 | Spring washer | 949607 | 1 | |
| 8 | Adjusting screw | 848226 | 1 | |
| 9 | Wing nut | 192354 | 1 | |
| 10 | Bracket | 863640 | 1 | |
| 11 | Screw | 844540 | 2 | |
| 12 | Hexagon screw | 955274 | 2 | |
| 13 | Spring washer | 949607 | 4 |
| Item | Part Name | Part No. |
| 10 | Bracket 863640 | 863640 |
| Details | |
| Engine model | TD100G-87 TD1010G TD1210G TD121G-87, TWD1210V, TWD1211V TD121GP-87, TWD1210P, TWD1211P TD610G, TWD610G TD610M, TD630ME, TWD630ME TD610V TD630VE, TWD630VE, TD640VE TD710G, TWD710G TD71A, TID71A TD730VE, TWD731VE TWD610P, TWD710P, TAD730P TWD610V TWD710V, TAD730V |
| Application | Manual Speed Control Manual Speed Control, Later Production Manual Speed Control: A Manual Speed Control: B Manual Speed Control: C Manuel Speed Control |
| Specification | |
| Descriptions | Late production.for stop solenoid with control rod. SN110127403/XXXXXX- |
