Contact 846580

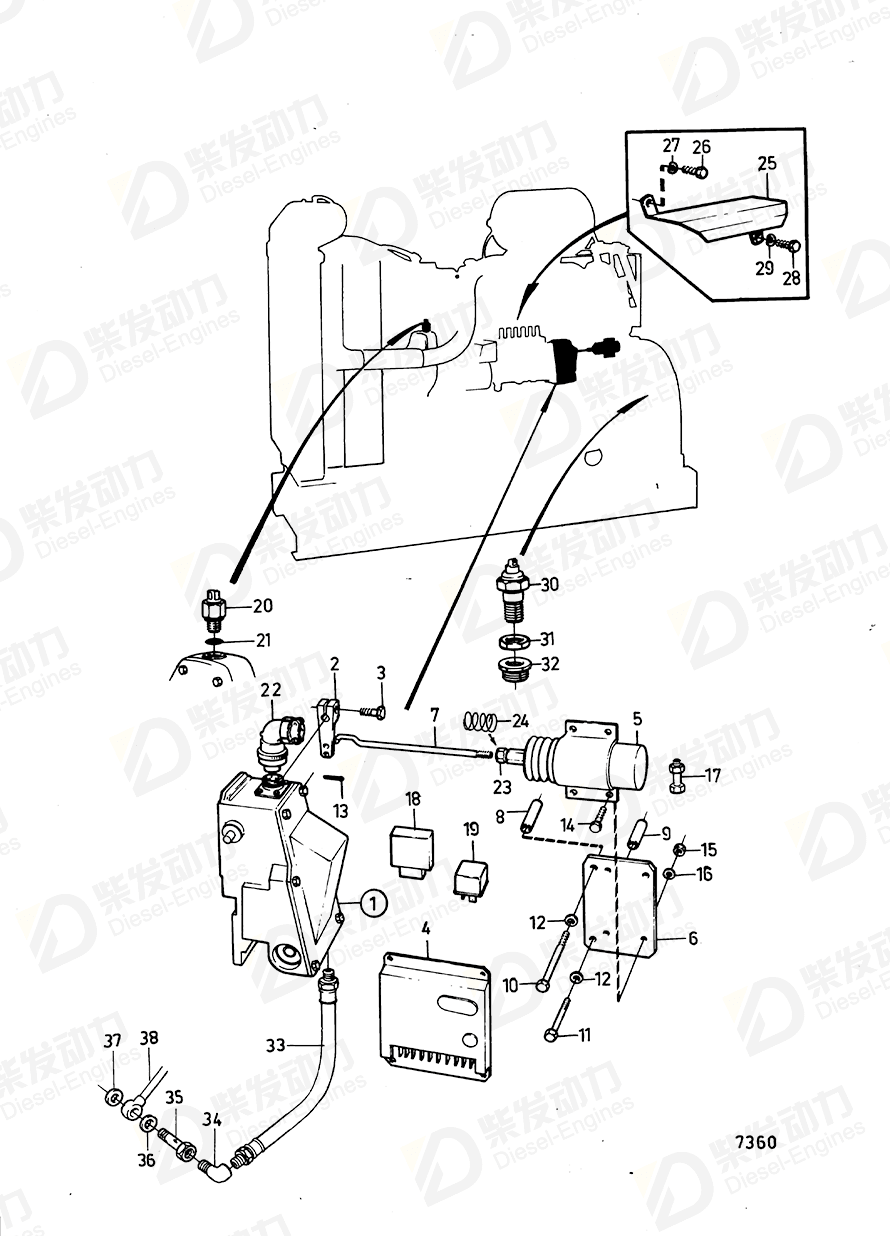

| No. | Part Name | Part Number | Qty | Description |
| 1 | Actuator | 846377 | 1 | Replaced by actuator 3825454., Mounting kit 834554 deleted., AGB 250A-3 |
| 2 | Intermediate lever | 846426 | 1 | |
| 3 | Hexagon screw | 955637 | 1 | |
| 4 | Control unit | 846378 | 1 | |
| 5 | Magnet | 881532 | 1 | 24V later prod |
| 6 | Bracket | 846422 | 1 | |
| 7 | Pull link | 846423 | 1 | |
| 8 | Spacer sleeve | 846424 | 1 | L=64mm |
| 9 | Spacer sleeve | 846425 | 1 | Stop solenoid energized to stop., L=30mm |
| 9 | Spacer sleeve | 847010 | 1 | |
| 10 | Hexagon screw | 955542 | 1 | |
| 11 | Hexagon screw | 942338 | 1 | |
| 11 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 12 | Spring washer | 942336 | 2 | |
| 13 | Split pin | 907824 | 1 | |
| 14 | Hexagon screw | 955270 | 4 | |
| 15 | Hexagon nut | 955781 | 4 | |
| 16 | Spring washer | 941906 | 4 | |
| 17 | Grommet | 881191 | 1 | Early type |
| 18 | Runaway monitor | 843910 | 1 | |
| 19 | Relay | 1504951 | 1 | For instrument panel 841096 and 841097., 24Vlate production. |
| 21 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 22 | Contact | 846580 | 1 | |
| 23 | Hexagon nut | 955857 | 1 | |
| 24 | Return spring | 847009 | 1 | |
| 25 | Heat shield | 847152 | 1 | |
| 26 | Hexagon screw | 940100 | 1 | |
| 27 | Spring washer | 941906 | 1 | |
| 28 | Hexagon screw | 940133 | 1 | |
| 29 | Spring washer | 942336 | 1 | |
| 30 | Sensor | 834551 | 1 | |
| 31 | Nut | 963935 | 1 | LATE TYPE |
| 32 | Bushing | 846717 | 1 | |
| 33 | Hose assembly | 1507501 | 1 | |
| 34 | Elbow nipple | 180110 | 1 | MO 26456-. |
| 35 | Hollow screw | 942008 | 1 | |
| 36 | Gasket | 18671 | 1 | |
| 37 | Gasket | 11998 | 1 |
| Item | Part Name | Part No. |
| 22 | Contact 846580 | 846580 |
| Details | |
| Engine model | TAD1030GE, TAD1031GE, TAD1032GE TAD120BHC TAD120CHC TAD121CHC TAD1230G, TD1210G, TAD1231GE, TAD1232GE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TD121CHC TD121CRC TD121GG, TD121GG-86, TD121GG-87, TD121GGP-87 TD610G, TWD610G TD70G-83 TD710G, TWD710G, TAD730G TD71AG, TID71AG TID120FG TID121FG TID121KG, TID121KGP, TID121LG, TID121LGP TID121LGP-87 TID162AG, TID162AGP TWD1210G, TWD1211G TWD1620G, TWD1630G |
| Application | Electronic Speed Control Electronic Speed Control and Stop Solenoid Electronic Speed Control and Stop Solenoid Type ''AMBAC'' Electronic Speed Control and Stop Solenoid Type AMBAC Electronic Speed Control and Stop Solenoid Type AMBAC: A Electronic Speed Control and Stop Solenoid Type AMBAC: B Electronic Speed Control, Later Production Electronic Speed Control: A Electronic Speed Control: AMBAC Electronic Speed Control: GAC |
| Specification | |
| Descriptions | (3829259) Repl by 3829259 |
Tags: Contact, Volvo Penta, 846580
