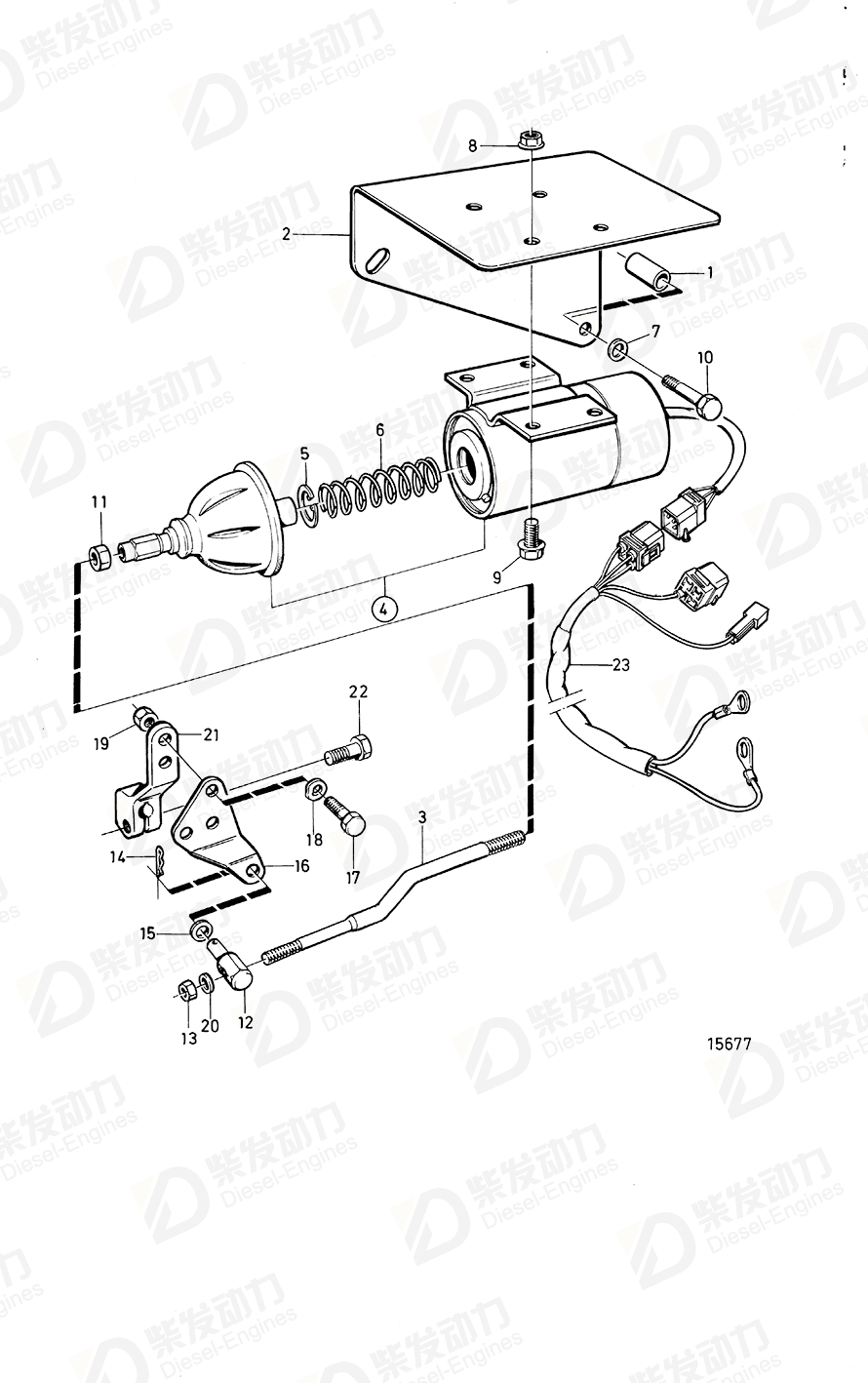

Control rod 863450
| No. | Part Name | Part Number | Qty | Description |
| 1 | Spacer sleeve | 821540 | 2 | Replaced by 1pc 1578938., L=22mm |
| 2 | Bracket | 3825561 | 1 | (849462) |
| 3 | Control rod | 863450 | 1 | |
| 4 | Actuator solenoid | 3826742 | 1 | 24V |
| 5 | Retaining ring | 969294 | 1 | |
| 6 | Return spring | 847333 | 1 | TH=2,0mm |
| 7 | Washer | 940097 | 2 | |
| 8 | Flange nut | 945408 | 4 | |
| 9 | Flange screw | 946440 | 4 | |
| 10 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 11 | Hexagon nut | 955782 | 1 | |
| 12 | Cube | 849653 | 1 | |
| 13 | Hexagon nut | 955781 | 1 | |
| 14 | Split pin | 664822 | 1 | |
| 15 | Spring washer | 69556 | 1 | |
| 16 | Intermediate lever | 847189 | 1 | |
| 16 | Intermediate lever | 3825586 | 1 | (847189) |
| 17 | Hexagon screw | 955271 | 2 | |
| 18 | Spring washer | 949607 | 2 | |
| 19 | Hexagon nut | 955781 | 2 | |
| 20 | Washer | 955892 | 1 | |
| 21 | Lever, fuel inj. pump | 4804923 | 1 | |
| 22 | Hexagon screw | 955244 | 1 | |
| 23 | Wiring harness | 873641 | 1 | For 876789 |
| Item | Part Name | Part No. |
| 3 | Control rod 863450 | 863450 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V, TWD1230VE TD1030VE, TAD1030V, TWD1031VE TID121KGP, TID121LGP-87 TWD1030ME TWD1210G, TWD1211G TWD1230ME TWD1230VE |
| Application | Stop Solenoid 24V, Energized to Run Stop Solenoid 24V, Energized to Run. Earlier Prod Stop Solenoid 24V, Energized to Run. Later Prod. Stop Solenoid 24V,Energized to Run. Time Relay Kit Stop Solenoid and Installation Components |
