Cross recessed screw 956175
Cross recessed screw 956175

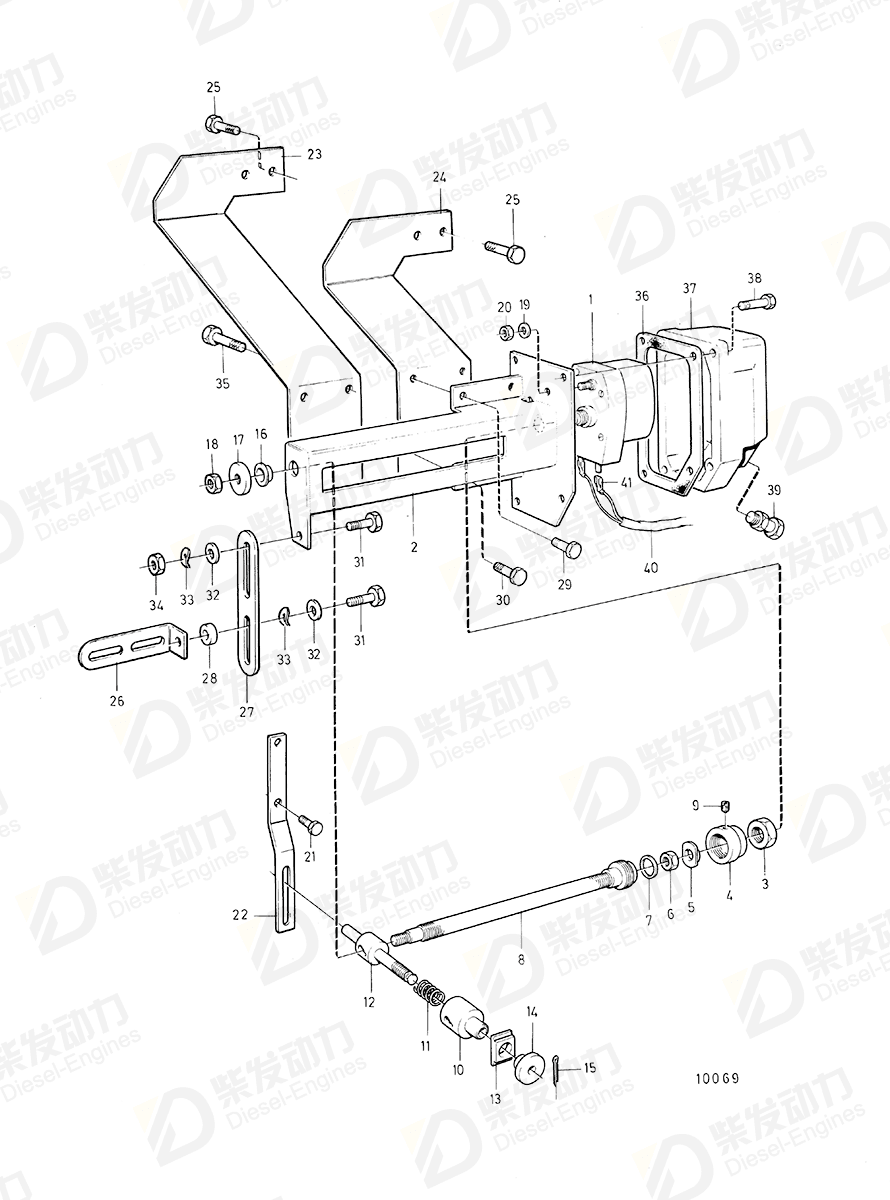

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Engine |
843794 |
1 |
24V |
| 2 |
Retainer |
843795 |
1 |
|
| 3 |
Hexagon nut |
9520607 |
1 |
|
| 4 |
Nut |
843797 |
1 |
|
| 5 |
Dog |
843798 |
1 |
|
| 6 |
Hexagon nut |
955781 |
1 |
|
| 7 |
Spring washer |
949938 |
1 |
(941909) |
| 8 |
Adjusting screw |
843799 |
1 |
|
| 9 |
Set screw |
945647 |
1 |
(116226) |
| 10 |
Sleeve |
843802 |
1 |
|
| 11 |
Spring |
813945 |
1 |
|
| 12 |
Piston |
843803 |
1 |
|
| 13 |
Bushing |
843804 |
1 |
|
| 14 |
Control button |
843805 |
1 |
|
| 15 |
Split pin |
907824 |
1 |
|
| 16 |
Bushing |
843806 |
1 |
|
| 17 |
Control button |
843805 |
1 |
|
| 18 |
Hexagon nut |
955781 |
1 |
|
| 19 |
Washer |
940090 |
1 |
|
| 20 |
Hexagon nut |
955780 |
1 |
|
| 21 |
Flange screw |
967949 |
2 |
|
| 22 |
Intermediate lever |
864247 |
1 |
|
| 23 |
Adjusting washer |
862429 |
1 |
|
| 25 |
Cross recessed screw |
956175 |
4 |
|
| 26 |
Bracket |
1130611 |
1 |
|
| 27 |
Bracket |
965534 |
1 |
|
| 28 |
Spacer sleeve |
807183 |
1 |
Used on crankshaft 829999. |
| 29 |
Flange screw |
967949 |
2 |
|
| 30 |
Flange screw |
946544 |
2 |
For THD102KB and THD102KD. |
| 31 |
Hexagon screw |
955513 |
2 |
|
| 32 |
Washer |
960140 |
2 |
3-6mm², yellow |
| 33 |
Spring washer |
949607 |
2 |
|
| 34 |
Hexagon nut |
955825 |
1 |
Late type |
| 35 |
Flange screw |
947107 |
1 |
|
| 36 |
Gasket |
843890 |
1 |
|
| 37 |
Cover |
843889 |
1 |
|
| 38 |
Hexagon screw |
955271 |
4 |
|
| 39 |
Grommet |
881191 |
1 |
Early type |
| Item |
Part Name |
Part No. |
| 25 |
Cross recessed screw 956175 |
956175 |
| Details |
| Engine model |
TWD1210G, TWD1211G |
| Application |
Control Motor for Speed Control |
