Cube 848363

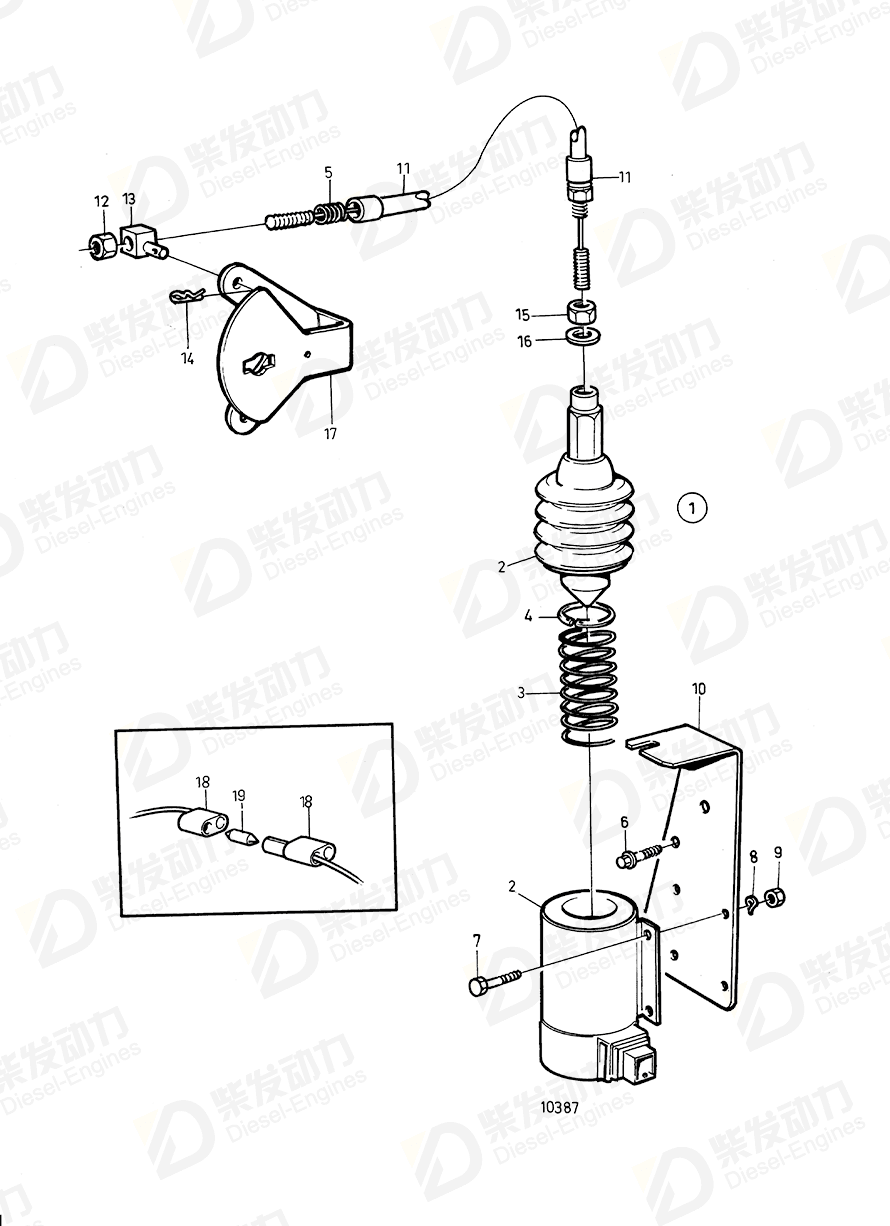

| No. | Part Name | Part Number | Qty | Description |
| 1 | Actuator solenoid | 876191 | 1 | 12V, repl by 876592 |
| 3 | Return spring | 843401 | 1 | Late type |
| 4 | Retaining ring | 969294 | 1 | |
| 5 | Compression spring | 848283 | 1 | |
| 6 | Flange screw | 946472 | 3 | |
| 7 | Hexagon screw | 955294 | 4 | |
| 8 | Spring washer | 941907 | 4 | |
| 9 | Hexagon nut | 955782 | 4 | |
| 10 | Bracket | 848289 | 1 | |
| 11 | Control cable | 849332 | 1 | Replaced by conversion kit 876245 (electric run) or 876257 (electric stop). |
| 12 | Hexagon nut | 944456 | 1 | |
| 13 | Cube | 848363 | 1 | |
| 14 | Split pin | 664822 | 1 | |
| 15 | Hexagon nut | 955782 | 1 | |
| 16 | Spring washer | 191150 | 1 | |
| 17 | Lever | 849404 | 1 | (864409) |
| 18 | Fuse holder | 966334 | 1 | |
| 19 | Fuse | 11433 | 1 | Replaced by 1pc alternator 841989 and 1pc PULLby 829312., 8A |
| Item | Part Name | Part No. |
| 13 | Cube 848363 | 848363 |
| Details | |
| Engine model | TD61A, TD71A |
| Application | Stop Solenoid *earlier Production: A Stop Solenoid *earlier Production: B Stop Solenoid,low *earlier Production |
