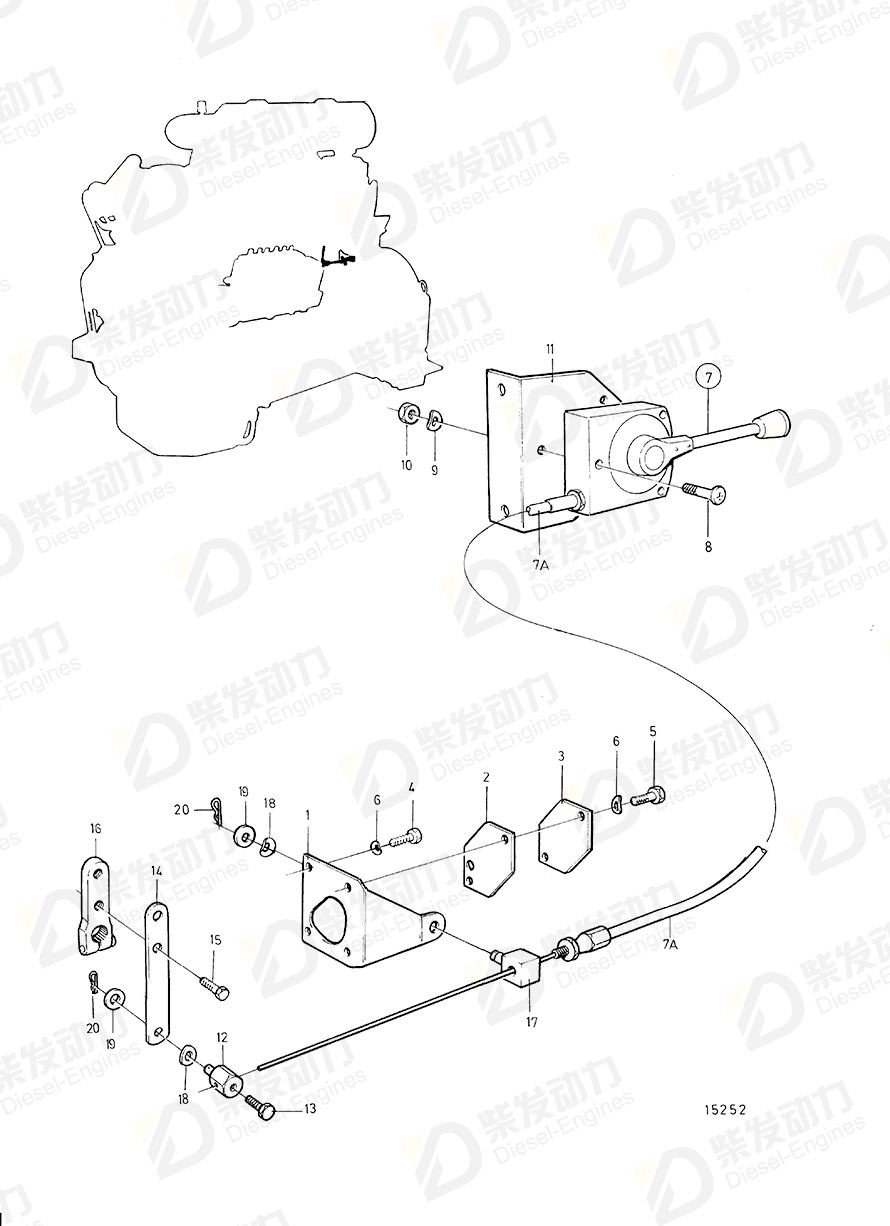

Engine speed control 862194
| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 862190 | 1 | |
| 2 | Gasket | 863636 | 1 | |
| 3 | Cover | 849889 | 1 | |
| 4 | Hexagon screw | 955269 | 2 | For 1570594 |
| 5 | Hexagon screw | 955272 | 2 | |
| 6 | Spring washer | 949607 | 4 | |
| 7 | Engine speed control | 862194 | 1 | |
| 8 | Cross recessed screw | 956169 | 3 | |
| 9 | Spring washer | 941904 | 3 | |
| 10 | Hexagon nut | 955779 | 3 | |
| 11 | Attaching plate | 862245 | 1 | See group 30 |
| 12 | Cube | 862191 | 1 | |
| 13 | Hexagon screw | 955244 | 1 | |
| 14 | Intermediate lever | 863606 | 1 | (865657) |
| 15 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 17 | Cube | 862121 | 1 | |
| 18 | Spring washer | 69556 | 2 | |
| 19 | Washer | 955894 | 2 | |
| 20 | Split pin | 664822 | 2 | |
| 7A | Cable kit | 863969 | 1 |
| Item | Part Name | Part No. |
| 7 | Engine speed control 862194 | 862194 |
| Details | |
| Engine model | TAD1030V TAD1230P TAD1230V, TWD1230VE TD100HP-87, TD100HPB-87, TID100KP-87, TID100KPB-87 TD121GP-87 TID121LP-87 TWD1210G, TWD1211G TWD1210P, TWD1211P TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V |
| Application | Engine Speed Control, Cable Type SN-2120050801 Engine Speed Control, Cable Type SN2120050802- Manual Speed Control Speed Control, Control Cable Type |
