Flange screw 965175

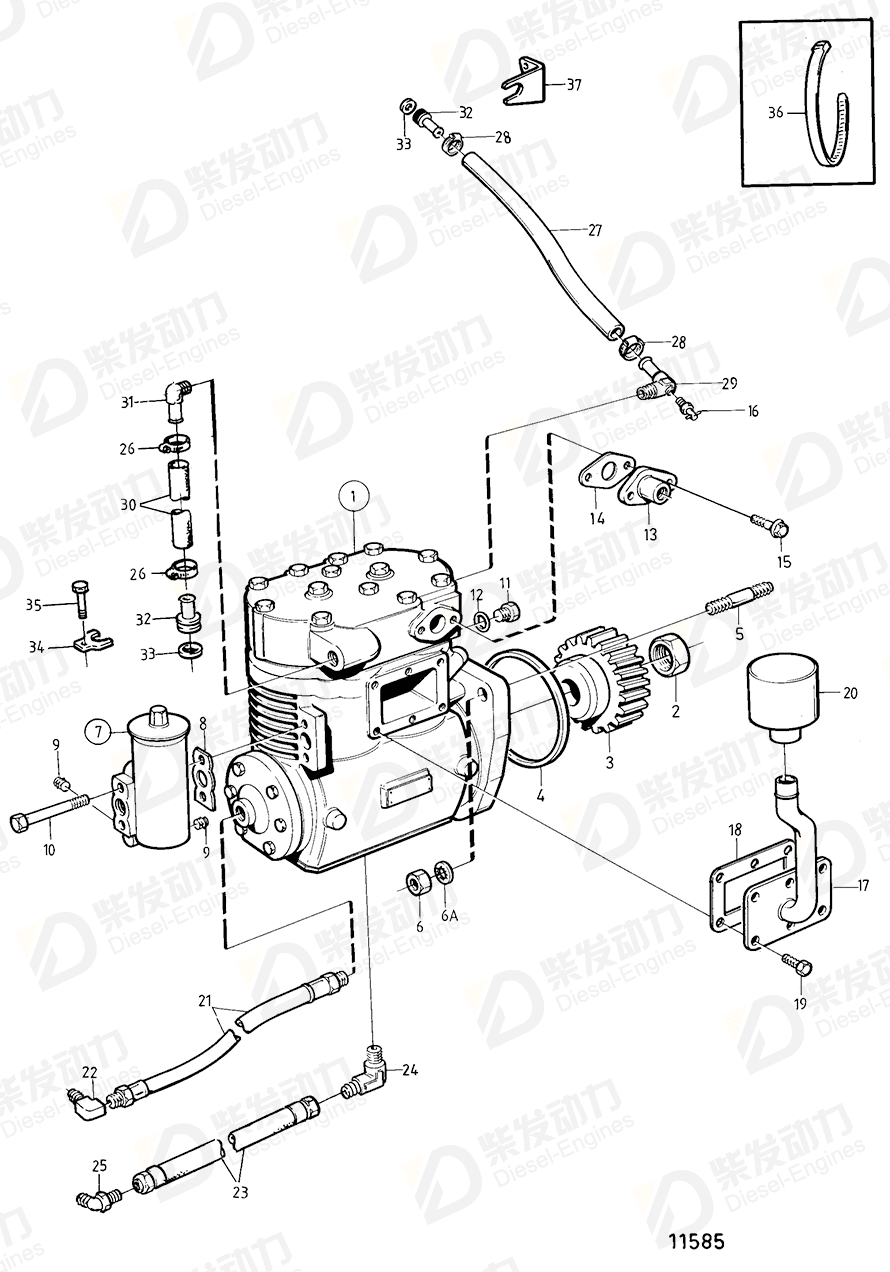

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1080437 | 1 | E.U=3803136 |
| 1 | Compressor | 1590264 | 1 | |
| 1 | Compressor | 1612335 | 1 | Also available as an exchange part., Repl by 1080437 |
| 1 | Repair kit, air compr. | 3090471 | 1 | |
| 1 | Compressor, exch | 3803136 | 1 | E.U=3803136 |
| 2 | Nut | 1518355 | 1 | |
| 4 | O-ring | 975610 | 1 | For engines without air compressor. |
| 5 | Stud | 967951 | 3 | |
| 6 | Hexagon nut | 971073 | 3 | |
| 7 | Governor | 1503492 | 1 | |
| 8 | Gasket | 324042 | 1 | |
| 9 | Plug | 479979 | 5 | |
| 10 | Flange screw | 965218 | 2 | |
| 11 | Plug | 960628 | 1 | |
| 12 | Gasket | 957173 | 1 | |
| 13 | Flange | 330634 | 1 | |
| 14 | Gasket | 1619957 | 1 | |
| 15 | Flange screw | 945444 | 2 | |
| 16 | Shut-off cock | 966871 | 1 | |
| 17 | Air inlet | 864938 | 1 | |
| 18 | Gasket | 3028016 | 1 | |
| 19 | Flange screw | 965175 | 6 | |
| 20 | Filter | 8152009 | 1 | (1082111) |
| 21 | Hose assembly | 1507501 | 1 | |
| 22 | Nipple | 180009 | 1 | |
| 23 | Hose assembly | 966600 | 1 | |
| 23 | Hose assembly | 966601 | 1 | |
| 24 | Elbow nipple | 944276 | 1 | |
| 25 | Elbow nipple | 334596 | 1 | 45° |
| 26 | Hose clamp | 943472 | 1 | |
| 27 | Hose | 941522 | 1 | (13799) L=45mm |
| 28 | Hose clamp | 943472 | 2 | |
| 29 | T-nipple | 192531 | 1 | |
| 30 | Hose | 941522 | 1 | (13799) L=45mm |
| 31 | Hose nipple | 961603 | 1 | |
| 32 | Hose coupling | 849227 | 2 | |
| 33 | Rubber moulding | 471626 | 2 | |
| 34 | Brace | 849110 | 1 | |
| 35 | Flange screw | 965175 | 1 | |
| 36 | Cable tie | 948211 | 1 | |
| 37 | Bracket | 849397 | 1 | |
| 6A | Spring washer | 941911 | 3 |
| Item | Part Name | Part No. |
| 35 | Flange screw 965175 | 965175 |
| Details | |
| Engine model | TAD1030P TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD100G TD100G-85 TD100G-87 TD100G-87, TID100K-87 TD1030ME TD610M TD610V, TD630VE, TD640VE TD61A, TD61AW TD61AG TD61AP TD630ME TD630VE, TWD630VE, TD640VE TD71A, TD71AW TD730ME TID100K TID121KGP, TID121LGP-87 TID121LP-87 TID61AG TID71A TWD1030ME TWD1230ME TWD610P TWD630ME TWD710P TWD710P, TAD730P TWD730ME TWD731ME |
| Application | Air Compressor &Knorr &LP48 &Ess Air Compressor &TUFLO 500 and Installation Components Air Compressor &Wabco &704 Air Compressor 15, 5 W and Installation Components Air Compressor 15, 5W5 and Installation Components: A Air Compressor 15, 5W5 and Installation Components: B Air Compressor 15, 5W5 and Installation Components: C Air Compressor 15, 5W5 and Installation Components: TID100K87 Air Compressor 15,5 and Install. Components. &Early &Prod Air Compressor 15.5 W31 Air Compressor 15.5W31 and Installation Components Air Compressor 15.5W5 and Installation Components Air Compressor Knorr LP48 Air Filter and Installation Components Belt Protection, Earlier Production Belt Protection, Later Production Exhaust Pipe Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Injection Pump, Fuel Filter and Shut-off valve Inlet Manifold and Installation Components Inlet Manifold with Intercooler, High Mounted Turbo Inlet Manifold with Intercooler, low mounted Turbo Manual Speed Control Radiator and Fan Speed Control, Control Cable Type: C Thermostat and Water Pump with Installation Components Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B Water Pump and Thermostat Housing: C |
| Specification | |
| Descriptions | Early type L=12mm M6x12mm SN XXXXXXXXXX/43621- SNXXXXXXXXXX/257936- |
