Pull rod, M8 863957
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Bracket |
849456 |
1 |
(865736) |
| 2 |
Flange screw |
965181 |
2 |
|
| 3 |
Flange screw |
965182 |
1 |
|
| 4 |
Spacer sleeve |
821542 |
3 |
L=51mm |
| 5 |
Flange screw |
946440 |
4 |
|
| 6 |
Lock nut |
946036 |
4 |
|
| 7 |
Actuator solenoid |
888468 |
1 |
|
| 8 |
Retaining ring |
914456 |
1 |
|
| 9 |
Return spring |
847333 |
1 |
TH=2,0mm |
| 10 |
Hexagon nut |
955782 |
1 |
|
| 11 |
Pull rod, M8 |
863957 |
1 |
|
| 12 |
Split pin |
907824 |
1 |
|
| 13 |
Lever, fuel inj. pump |
4804923 |
1 |
|
| 14 |
Wiring harness |
873641 |
1 |
For 876789 |
| 15 |
Fuse holder |
966334 |
1 |
|
| 16 |
Fuse |
11433 |
1 |
Replaced by 1pc alternator 841989 and 1pc PULLby 829312., 8A |
| 17 |
Cable terminal |
881483 |
2 |
6,3x0,8x1,1-2,5mm² |
| 18 |
Cable tie |
948211 |
4 |
|
| Item |
Part Name |
Part No. |
| 11 |
Pull rod, M8 863957 |
863957 |
| Details |
| Engine model |
TD164KAE |
| Application |

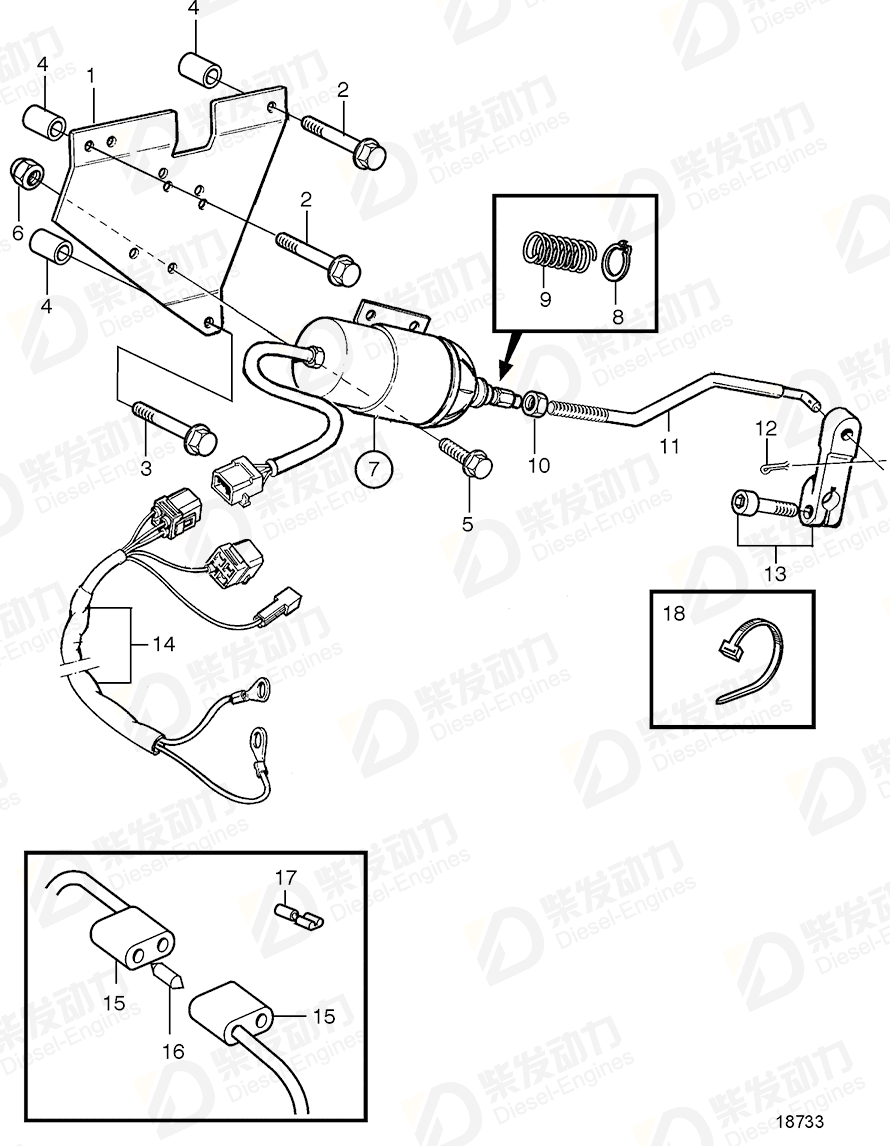

Stop Solenoid and Installation Components |
