Relay 1504951

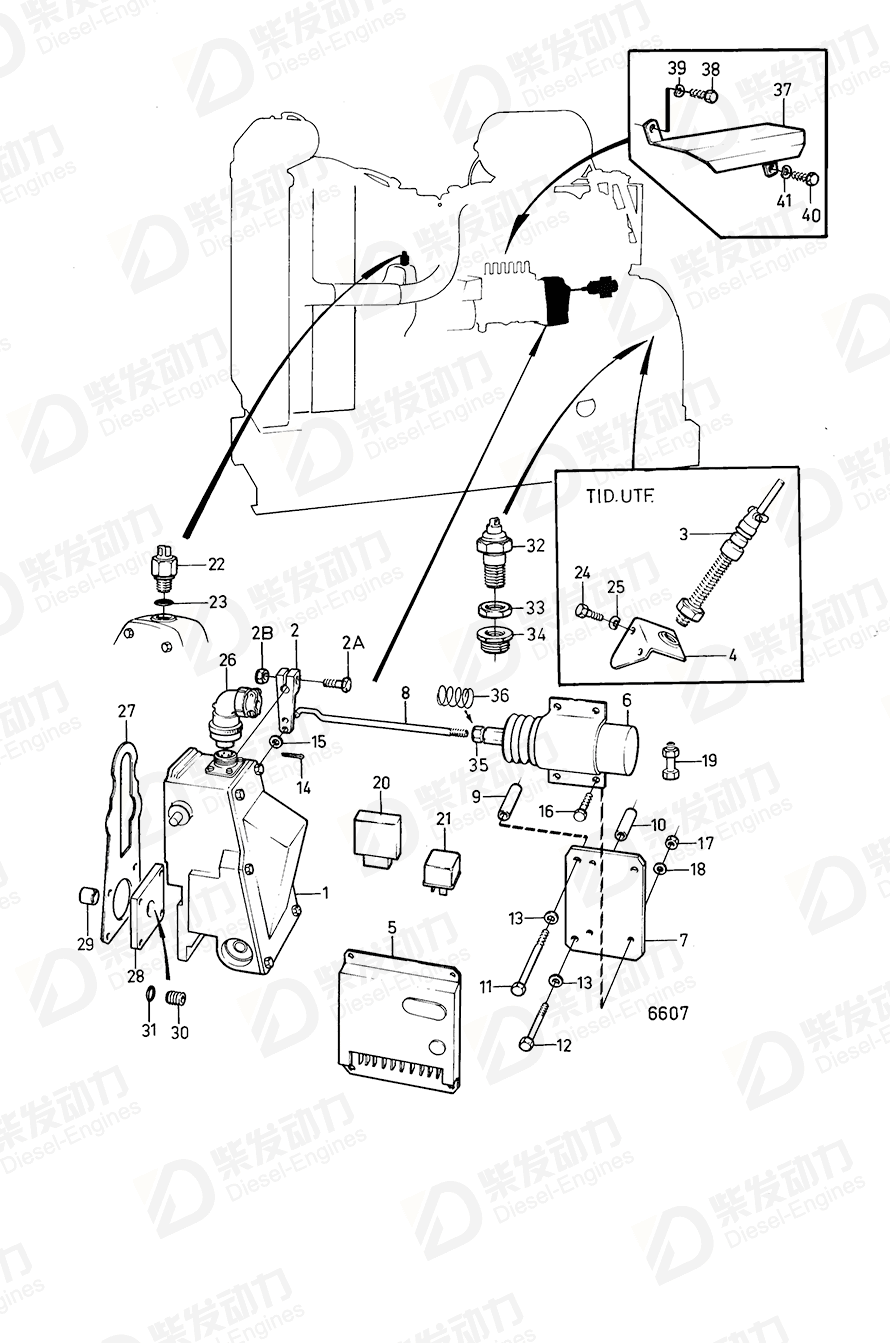

| No. | Part Name | Part Number | Qty | Description |
| 1 | Actuator | 846377 | 1 | Replaced by actuator 3825454., Mounting kit 834554 deleted., AGB 250A-3 |
| 2 | Intermediate lever | 846426 | 1 | |
| 3 | Sensor | 834551 | 1 | |
| 4 | Bracket | 837698 | 1 | TD CO gear |
| 5 | Control unit | 846378 | 1 | |
| 6 | Magnet | 881532 | 1 | 24V later prod |
| 7 | Bracket | 846422 | 1 | |
| 8 | Pull link | 846423 | 1 | |
| 9 | Spacer sleeve | 846424 | 1 | L=64mm |
| 10 | Spacer sleeve | 846425 | 1 | Stop solenoid energized to stop., L=30mm |
| 10 | Spacer sleeve | 847010 | 1 | |
| 11 | Hexagon screw | 955542 | 1 | |
| 12 | Hexagon screw | 942338 | 1 | |
| 12 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 13 | Spring washer | 942336 | 2 | |
| 14 | Split pin | 907824 | 1 | |
| 15 | Washer | 955892 | 1 | |
| 16 | Hexagon screw | 955270 | 4 | |
| 17 | Hexagon nut | 955781 | 4 | |
| 18 | Spring washer | 941906 | 4 | |
| 19 | Grommet | 881191 | 1 | Early type |
| 20 | Runaway monitor | 843910 | 1 | |
| 21 | Relay | 1504951 | 1 | For instrument panel 841096 and 841097., 24Vlate production. |
| 22 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 22 | Tachometer sensor | 846695 | 1 | |
| 23 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 24 | Hexagon screw | 940100 | 2 | |
| 25 | Spring washer | 941906 | 2 | |
| 26 | Contact | 846580 | 1 | |
| 27 | Gasket | 240058 | 1 | |
| 28 | Cover | 846473 | 1 | (240812) |
| 29 | Sleeve | 846475 | 1 | |
| 2A | Hexagon screw | 955637 | 1 | |
| 2B | Hexagon nut | 955857 | 1 | |
| 30 | Plug | 240121 | 1 | |
| 31 | Sealing ring | 240811 | 1 | |
| 32 | Tachometer sensor | 846695 | 1 | |
| 33 | Nut | 963935 | 1 | LATE TYPE |
| 34 | Bushing | 846717 | 1 | |
| 35 | Hexagon nut | 955857 | 1 | |
| 36 | Return spring | 847009 | 1 | |
| 37 | Heat shield | 847152 | 1 | |
| 38 | Hexagon screw | 940100 | 1 | |
| 39 | Spring washer | 941906 | 1 | |
| 40 | Hexagon screw | 940133 | 1 | |
| 41 | Spring washer | 942336 | 1 |
| Item | Part Name | Part No. |
| 21 | Relay 1504951 | 1504951 |
| Details | |
| Engine model | D100B D70CHC, D70CRC, TD70CHC, TD70CRC TAD1030GE, TAD1031GE, TAD1032GE, TAD1031G TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TD100A TD100ARC TD100CHC TD100CRC TD100G-87, TD1030ME, TWD1030ME TD1010G, TWD1010G TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120HP-86, TID121KP, TID121LP TD120HPP TD121CHC TD121CRC TD121G, TD121GG, TD121GG-86, TID121K, TID121KG, TID121LG TD121GG, TD121GG-86, TD121GG-87, TD121GGP-87 TD60A TD60B TD60D TD60D-83 TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD61A, TD61AW, TD61AG, TID61AG, TD71A, TD71AW, TD71AG, TID71A, TID71AG TD61AP, TD71AP, TID71AP TD70G TD70G-83 TD71AG, TID71AG TID120FG TID120FPP TID120HPP TID121FG TID60D TID60DG TID70G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P |
| Application | Connector Box and Fuse Box with Installation Components: B Electrical Box and Installation Components Electrical Box and Installation Components: A Electrical Box and Installation Components: B Electrical Box and Installation Components: C Electrical Box and Installation Components: D ELECTRICAL BOX AND INSTALLATION COMPONENTS: TID121FP ELECTRICAL BOX WITH INSTALLATION COMPONENTS Electrical System and Instrument Electrical System and Instrument: A Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Electrical System and Instruments Excl Spec 867108, 867153: B Electrical System and Instruments Excl Spec 867108, 867153: C Electronic Speed Control Electronic Speed Control and Stop Solenoid Electronic Speed Control and Stop Solenoid Type ''AMBAC'' Electronic Speed Control and Stop Solenoid Type AMBAC Electronic Speed Control, Earlier Production Instrument Box Instrument Panel and Alarm Separator Kit Instrument Panel and Alarm Separator Kit, Earlier Production Instrument Panel and Installation Components, Power Pack |
| Specification | |
| Descriptions | Åkerman spec. 867477., 24V late type 24 V 24V 24V 150A 24V change over 24V växl. Acc. to classification., 24V AQ200D MO 11577-, AQ225D MO 11737-, AQ260A MO 11507-, AQ290A MO12260-., 24V ELECTRICAL BOX CONNECTED FOR ALARM SYSTEM, 24V 150A For instrument panel 841096 and 841097., 24Vlate production. MO 12770/XXXXX-. MO-12769/XXXXX,replaced by 841378., Replaced by 2pcs 845838, 1pc 955129., 24Vlate production. Spec. 867474, TD70GG., 24V Stop solenoid is connected while engine is running STOP SOLENOID IS CONNECTED WHILE ENGINE IS RUNNING, 24V 150A Stop solenoid is connected while engine is stopping. STOP SOLENOID IS CONNECTED WHILE ENGINE IS STOPPING., 24V 150A STOP SOLENOID IS CONNECTED WHILE ENGINE IS STOPPING., 24V 150V Stop solenoid is connected while engine is stopping., Power-Pack |
