Relay 3171420

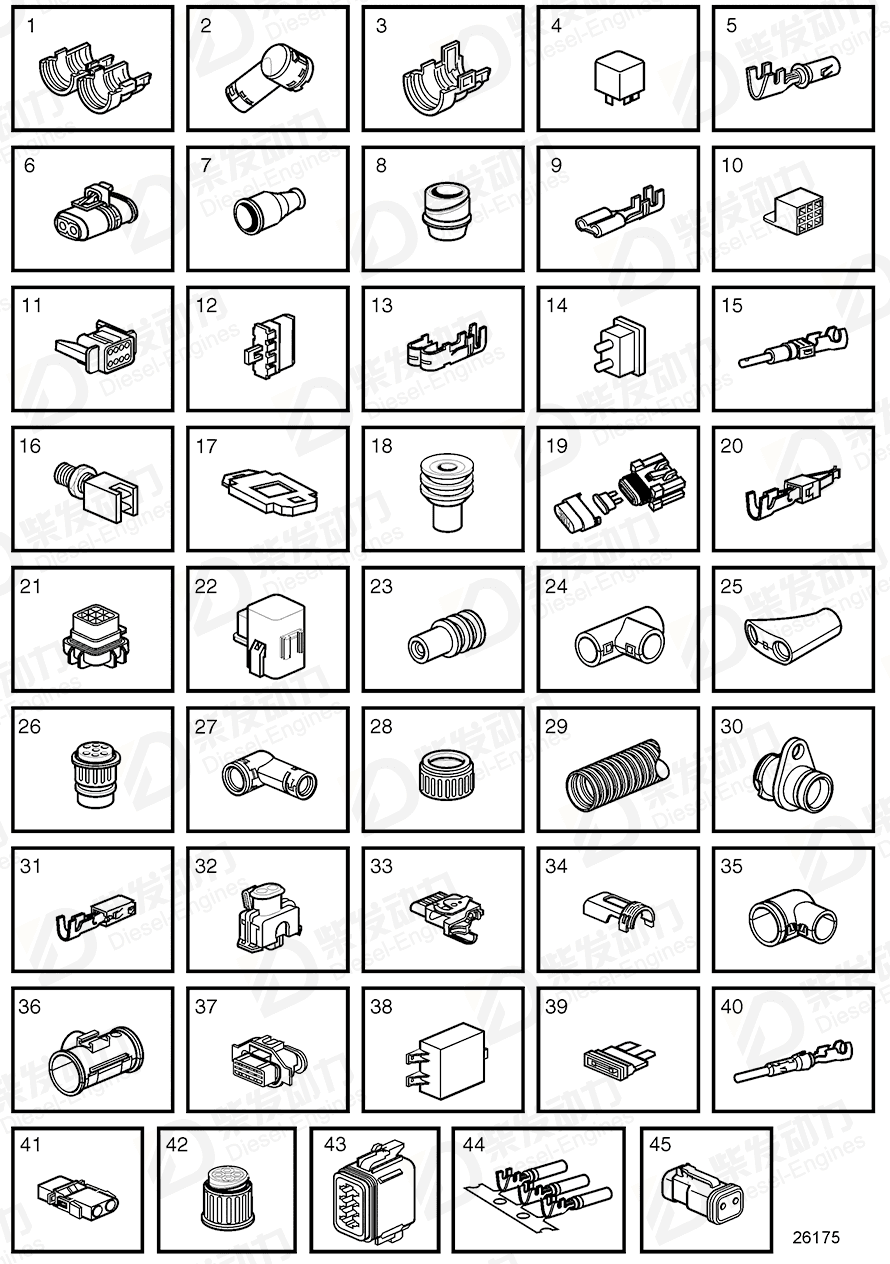

| No. | Part Name | Part Number | Qty | Description |
| 1 | Adapter | 3985597 | 1 | L=32mm |
| 1 | Adapter | 3985620 | 1 | |
| 2 | Adapter | 3987768 | 2 | |
| 3 | Adapter | 3987767 | 2 | |
| 4 | Relay | 3171420 | 1 | |
| 5 | Cable terminal | 881788 | 1 | |
| 5 | Cable terminal | 3963409 | 3 | |
| 5 | Cable terminal | 3986767 | 1 | O.D=0,3mm |
| 5 | Cable terminal | 11039671 | 3 | |
| 5 | Cable terminal | 20375186 | 12 | |
| 6 | Insulator | 20409386 | 6 | |
| 7 | End sleeve | 11039397 | 1 | |
| 8 | Insulator cover | 1079283 | 1 | |
| 9 | Cable terminal | 973122 | 5 | |
| 10 | Cable terminal | 973121 | 1 | |
| 11 | Housing | 874114 | 1 | |
| 12 | Wedge | 874115 | 1 | |
| 13 | Cable terminal | 874220 | 2 | |
| 14 | Pin | 874250 | 2 | For 874114 |
| 15 | Cable terminal | 192396 | 1 | |
| 15 | Cable terminal | 874033 | 6 | |
| 16 | Breaker | 873959 | 1 | Stop |
| 17 | Retainer | 873944 | 1 | |
| 18 | Sealing sleeve | 873854 | 2 | |
| 19 | Fuse holder | 874111 | 1 | 10 amp |
| 20 | Cable terminal | 3587151 | 1 | |
| 20 | Cable terminal | 3587154 | 3 | |
| 21 | Relay socket | 3587172 | 1 | |
| 22 | Relay box | 3587173 | 1 | Replaced by 21494263 |
| 22 | Relay box | 21494263 | 1 | |
| 23 | Cable seal | 970771 | 1 | I.D=3,4mm Y.D=6,0mm |
| 23 | Sealing wire | 3587158 | 1 | |
| 23 | Sealing wire | 3587170 | 3 | |
| 23 | Sealing plug | 3587461 | 1 | |
| 23 | Seal | 8159012 | 1 | I.D=0,1mm Y.D=3,9mm |
| 24 | Coupling piece | 3171511 | 1 | D=10mm |
| 24 | Manifold | 3171768 | 1 | D=13mm |
| 24 | Coupling piece | 7807398 | 1 | |
| 24 | Coupling piece | 7807403 | 1 | |
| 24 | Coupling piece | 9806110 | 2 | |
| 25 | Manifold | 3943200 | 2 | L=68,8mm |
| 25 | Manifold | 3986692 | 1 | |
| 25 | Manifold | 3987598 | 1 | L=48,2mm |
| 25 | Manifold | 3988390 | 1 | L=57,9mm |
| 26 | Housing | 3963412 | 1 | |
| 27 | Adapter | 3985598 | 1 | D=25,8mm |
| 27 | Adapter | 3987766 | 2 | D=24mm |
| 28 | Adapter | 8141886 | 1 | D=22mm |
| 29 | Hose | 874558 | 1 | I.D=8,5mm |
| 29 | Hose | 874559 | 1 | I.D=10mm |
| 29 | Hose | 874560 | 1 | I.D=13mm |
| 29 | Hose | 874561 | 1 | I.D=17mm |
| 29 | Hose | 874562 | 1 | I.D=22mm |
| 29 | Hose | 874563 | 1 | I.D=26mm |
| 30 | Pass-through | 20429993 | 1 | |
| 31 | Cable terminal | 881600 | 1 | |
| 32 | Receptacle housing | 874368 | 1 | |
| 33 | Housing | 20429872 | 1 | |
| 34 | Insulator cover | 20429873 | 1 | |
| 35 | Adapter | 20450150 | 1 | |
| 36 | Manifold | 3943090 | 1 | |
| 37 | Receptacle housing | 874456 | 1 | |
| 38 | Voltage converter | 21959663 | 1 | 12V, D3-D,E,F |
| 39 | Fuse | 969161 | 1 | 10A |
| 40 | Cable terminal | 984945 | 1 | (3963408) |
| 41 | Housing | 948995 | 1 | |
| 42 | Housing | 8159013 | 1 | |
| 43 | Housing | 874091 | 1 | 8-pole |
| 44 | Cable terminal | 874251 | 1 | Teminal socket |
| 45 | Housing | 3888267 | 1 |
| Item | Part Name | Part No. |
| 4 | Relay 3171420 | 3171420 |
| Details | |
| Engine model | DH10A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030GE, TAD1031GE, TAD1032GE, TAD1031G TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1230G, TD1210G, TAD1231GE, TAD1232GE TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1240GE, TAD1241GE, TAD1242GE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1640GE, TAD1641GE, TAD1642GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1641VE, TAD1642VE, TAD1643VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B, TAD1660-62VE, TAD1662VE EU5 TAD1643VE-B TAD1650GE, TAD1651GE TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1670VE, TAD1671VE, TAD1672VE TAD540-42VE, TAD550-51VE, TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD550GE, TAD551GE TAD560VE, TAD561VE TAD570VE, TAD571VE, TAD572VE TAD734GE TAD750GE, TAD751GE TAD752GE, TAD753GE, TAD754GE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE, TAD850-52VE, TAD840-43VE TAD870VE, TAD871VE, TAD872VE, TAD873VE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TAD950VE, TAD951VE, TAD952VE TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD610G, TWD610G TD610G, TWD610G, TD710G, TWD710G, TAD730G TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD710G, TWD710G TD710G, TWD710G, TAD730G TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TWD1210G, TWD1211G TWD1231VE TWD1240VE, TAD1241VE, TAD1242VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1620G, TWD1630G TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1643GE, TWD1652GE, TWD1653GE TWD1644GE, TWD1645GE TWD1663GE TWD1672GE, TWD1673GE TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Control Unit and Cables, Gearbox Electric system, engine wiring harness Electrical Materials Electrical Materials: A Electrical Materials: B Electrical Materials: C Electrical System Electrical System SN-11191563 Electrical System SN10970202-11176249 Electrical System SN11176250- Electrical System SN11191564- Electrical System, ECU Electrical System, ECU and PTO K Electrical System, ECU SN-11270935 Electrical System, ECU SN11270936- Electrical System, for loose ECU Electrical System, SN-2016067764 Electrical System, SN1201090022- Electrical System, SN2016067765- Electronic Speed Control Electronic Speed Control, Later Production Electronic Speed Control: AMBAC Electronic Speed Control: GAC Fuse and Relay Holder Fuse and Relay holder SN-2013618594 Fuse and Relay holder SN2013618595- Instrument Panel and Alarm Separator Kit Instrument Panel and Alarm Separator Kit, Later Production Instrument Panel and Control Instrument Panel with Speed Control and Alarm Separator Kit Stop Solenoid 24V, Energized to Run. Earlier Prod Stop Solenoid Alt. 1 Stop Solenoid Alt. 3 Stop Solenoid for Electronic Speed Control. Type GAC Terminal Box |
| Specification | |
| Descriptions | (9518230) 24V 24V (9518230) D=35mm |
