Wing screw 862775

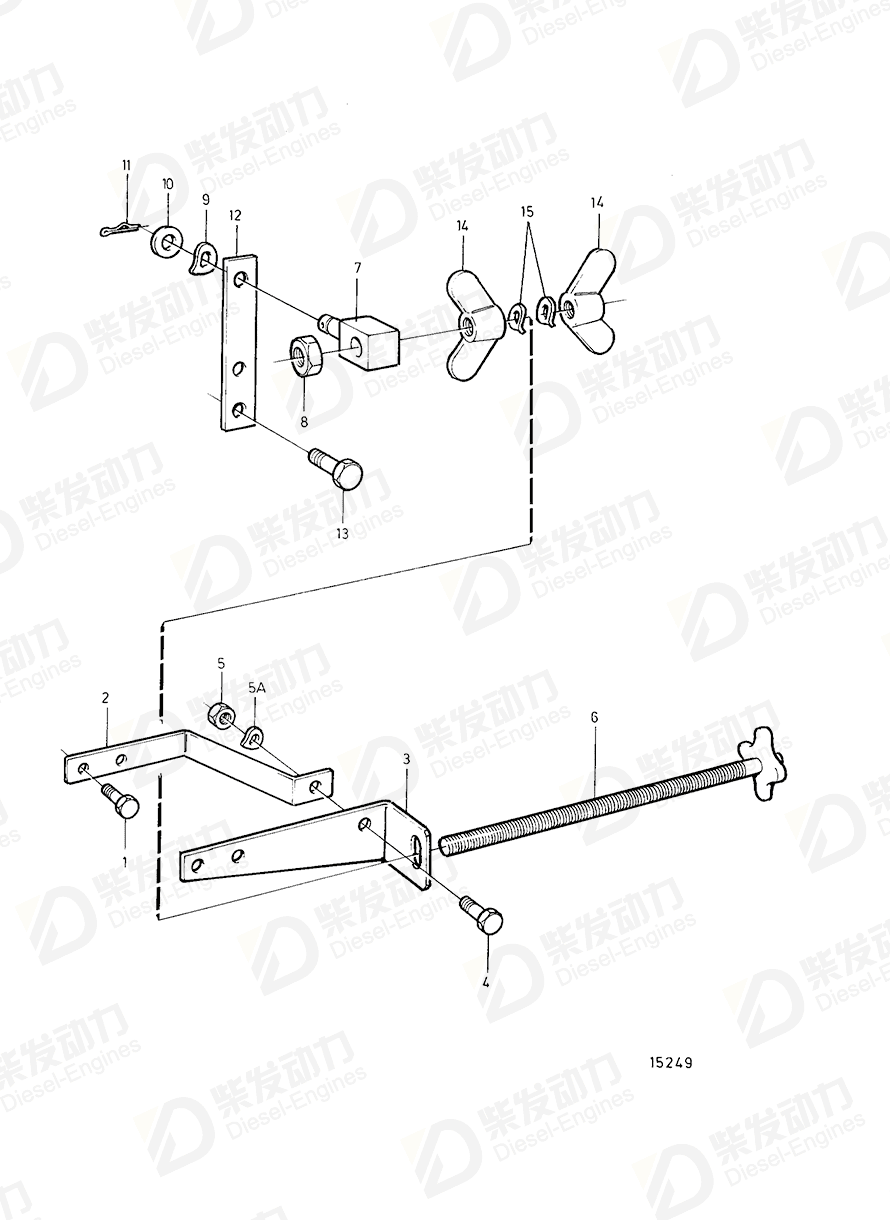

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flange screw | 967949 | 4 | |
| 2 | Support | 849648 | 1 | |
| 3 | Bracket | 865198 | 1 | |
| 4 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 5 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 6 | Wing screw | 862775 | 1 | |
| 7 | Cube | 848236 | 1 | |
| 8 | Flange nut | 945408 | 1 | |
| 9 | Spring washer | 949607 | 1 | |
| 10 | Washer | 955892 | 1 | |
| 11 | Split pin | 664822 | 1 | |
| 12 | Intermediate lever | 862480 | 1 | |
| 13 | Flange screw | 967949 | 2 | |
| 14 | Wing nut | 192354 | 2 | |
| 15 | Spring washer | 941907 | 2 | |
| 5A | Spring washer | 941907 | 1 |
| Item | Part Name | Part No. |
| 6 | Wing screw 862775 | 862775 |
| Details | |
| Engine model | TAD1030V TAD1230P TAD1230V TAD1630P, TWD1630P TAD1630V, TWD1630V TD730ME TID162AG, TID162AGP, TID162AP, TID162APB TWD1010G TWD1031VE TWD1210G, TWD1211G TWD1230ME TWD1230VE TWD1620G, TWD1630G TWD730ME, TWD731ME |
| Application | Manual Speed Control Manual Speed Control SN1101042675/XXXXXX Manual Speed Control, Later Production Manual Speed Control: A Manual Speed Control: B Speed Control, Control Rod Type |
