Air filter 3825778

0 reviews Write a review

Qty

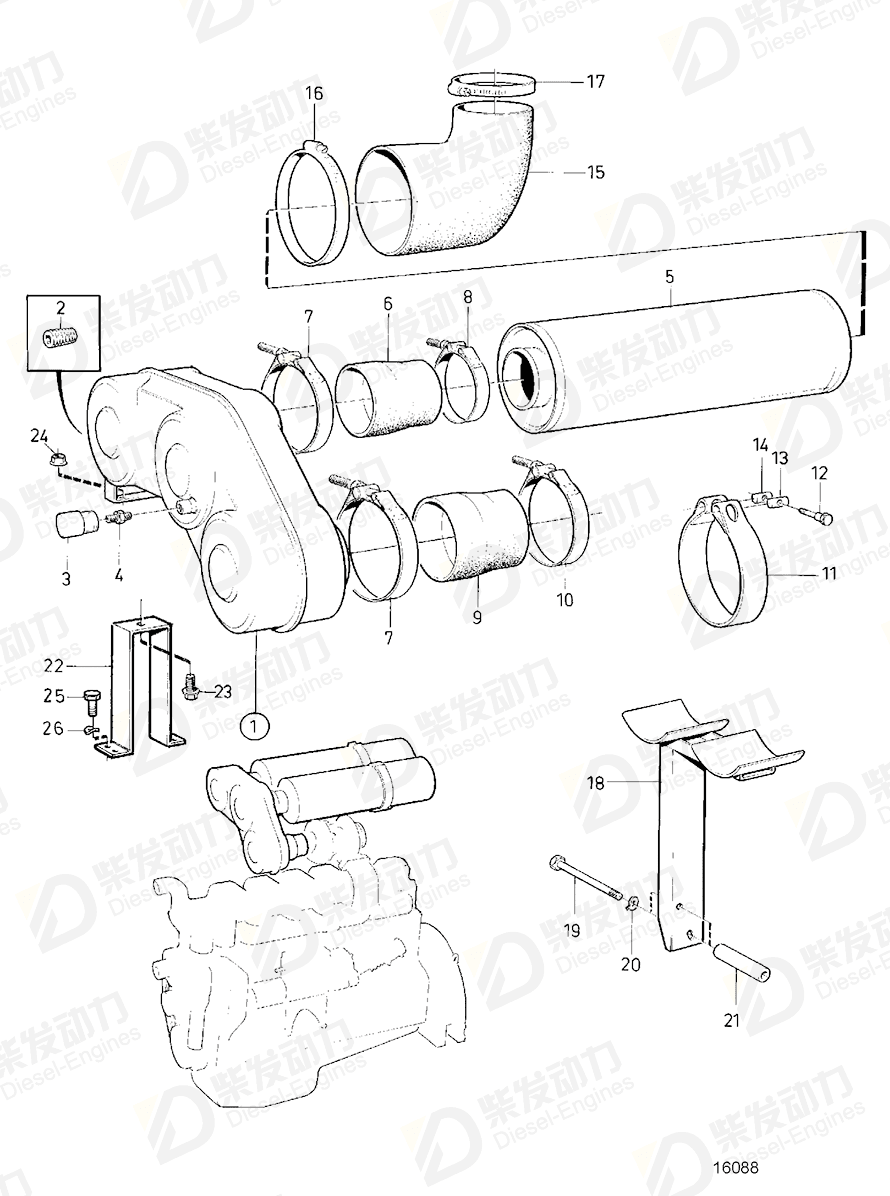

No.	Part Name	Part Number	Qty	Description
1	Connecting pipe	3825971	1
2	Plug	479977	1
3	Pressure drop indica	3828765	1
4	Nipple	191095	1
5	Air filter	3825778	2
6	Rubber fitting	836334	2	For 804961., D=105mm-113mm
7	Hose clamp	1544734	3
8	Hose clamp	1544733	2
9	Rubber fitting	847684	1
10	Hose clamp	1660379	1
11	Tensioning band	821028	2
12	Hexagon screw	31406	2
13	Pin	31405	2
14	Clevis pin, threaded	31404	2
15	Manifold	864291	2	For air intake from outside the engine room.
16	Hose clamp	944307	2	D70B spec. 867221., Alt
17	Hose clamp	961678	2	D70B spec. 867221., Alt
18	Bracket	848308	1
19	Hexagon screw	955529	2
20	Spring washer	941907	2
21	Spacer sleeve	807425	2	L=24mm
22	Bracket	848224	1
23	Flange screw	946173	1
24	Flange lock nut	948645	1
25	Hexagon screw	955523	2
26	Spring washer	941907	2

Item	Part Name	Part No.
5	Air filter 3825778	3825778

Details
Engine model	TAD1231GE TD100G-87 TD100G-87, TD1030ME TD100G-87, TD1030VE TD1010G TD1210G TD121G-87 TD121GP-87, TD1210G TD610G TD610M, TD630ME TD610V, TD630VE, TD640VE TD61A TD61ACE, TD71ACE TD61AG TD61AP TD710G TD71A, TD71AG, TD71AP TD71A, TID71A TID162AG, TID162AGP, TID162AP, TID162APB TID61AG TWD1010G TWD1030ME TWD1031VE TWD1210G, TWD1211G TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V TWD1620G, TWD1630G TWD1630P TWD1630V TWD610G TWD610P TWD610V, TWD630VE TWD630ME TWD710G TWD710P TWD710V
Application	Air Filter Air Filter (Not for low-mounted Turbo) Air Filter and Installation Components Air Filter and Installation Components: A Air Filter and Installation Components: B Air Filter and Installation Components: TD61APB Air Filter, High Location Air Filter, Side Installation Air Filter: A
Specification
Descriptions	(823701)
