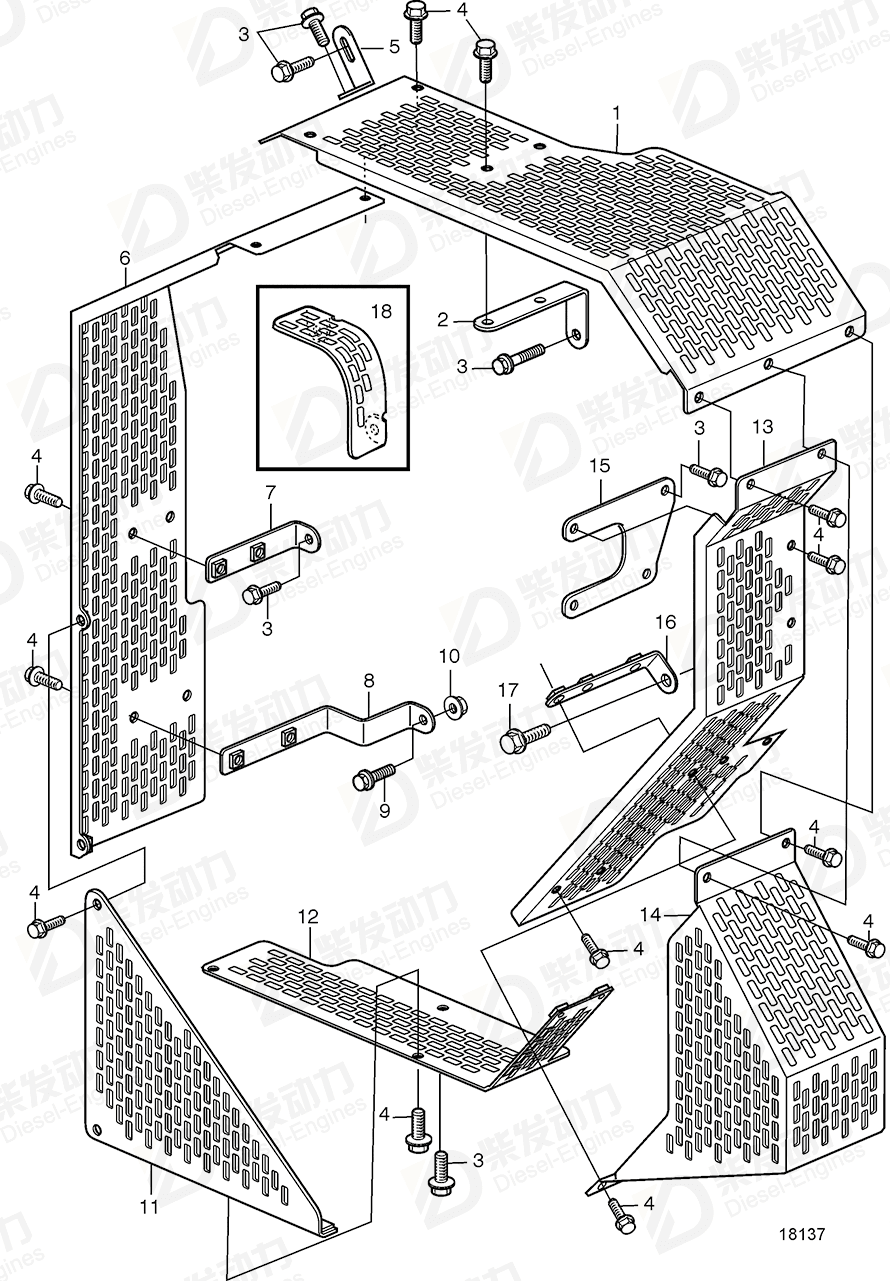

Belt protector 3829415
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Belt protector |
3830766 |
1 |
|
| 2 |
Bracket |
3828852 |
1 |
|
| 3 |
Flange screw |
946440 |
9 |
|
| 4 |
Flange screw |
947107 |
24 |
|
| 5 |
Bracket |
965555 |
1 |
1x9x60 |
| 6 |
Belt protector |
3829415 |
1 |
|
| 7 |
Bracket |
3828856 |
1 |
|
| 8 |
Bracket |
3828851 |
1 |
|
| 9 |
Flange screw |
945444 |
1 |
|
| 10 |
Flange nut |
945408 |
1 |
|
| 11 |
Belt protector |
3828827 |
1 |
|
| 12 |
Belt protector |
3829419 |
1 |
|
| 13 |
Belt protector |
3830765 |
1 |
|
| 14 |
Belt protector |
3830782 |
1 |
|
| 15 |
Bracket |
3830773 |
1 |
|
| 16 |
Bracket |
3828855 |
1 |
|
| 17 |
Flange screw |
946441 |
1 |
|
| 18 |
Fan guard, alternator |
3829660 |
1 |
|
| Item |
Part Name |
Part No. |
| 6 |
Belt protector 3829415 |
3829415 |
| Details |
| Engine model |
TWD1240VE |
| Application |
Belt Guard. High Mounted Water Pump |
Tags:
Belt protector,
Volvo Penta,
3829415
