Bracket 3830866

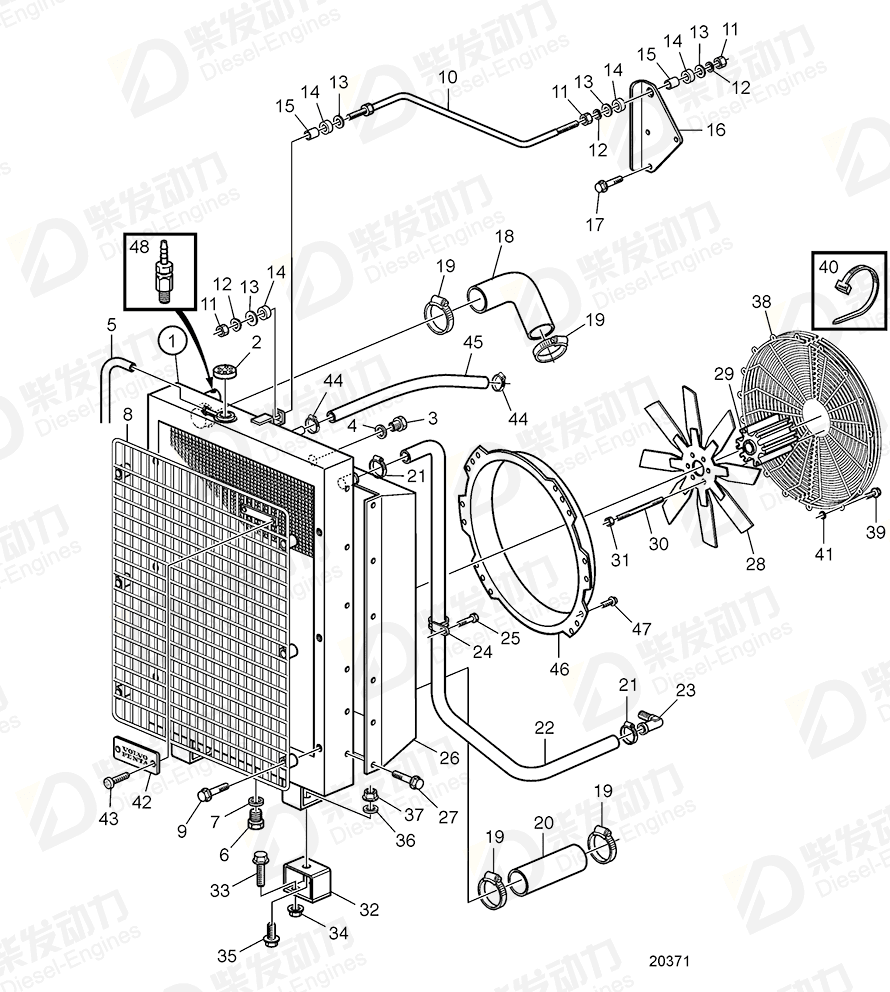

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 3829278 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Plug | 947660 | 1 | (836268) |
| 4 | Gasket | 11994 | 1 | |
| 5 | Hose | 192618 | 1 | L=1400mm |
| 6 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 7 | Gasket | 969011 | 1 | |
| 8 | Radiator protector | 862959 | 1 | |
| 9 | Flange screw | 947760 | 6 | M8x40mm |
| 10 | Radiator stay | 862159 | 1 | |
| 11 | Hexagon nut | 955793 | 3 | |
| 12 | Spring washer | 941912 | 3 | |
| 13 | Washer | 191940 | 4 | |
| 14 | Rubber bushing | 866857 | 4 | |
| 15 | Spacer sleeve | 252202 | 2 | |
| 16 | Bracket | 3830866 | 1 | |
| 17 | Flange screw | 948217 | 3 | |
| 18 | Radiator hose | 862102 | 1 | |
| 19 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 20 | Radiator hose | 849738 | 1 | |
| 21 | Hose clamp | 994560 | 2 | |
| 22 | Rubber hose | 944386 | 1 | |
| 23 | Elbow nipple | 942649 | 1 | |
| 24 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 25 | Hexagon screw | 945970 | 1 | |
| 26 | Fan shroud | 3828012 | 1 | |
| 27 | Flange screw | 966807 | 12 | |
| 28 | Fan | 3828964 | 1 | |
| 29 | Fan hub | 3828710 | 1 | For thrust fan., L=185mm, (3827609) |
| 30 | Stud | 130204 | 6 | |
| 31 | Flange nut | 971095 | 6 | Alt |
| 32 | Bracket | 3826264 | 2 | (865242) |
| 33 | Flange screw | 946329 | 4 | |
| 34 | Flange lock nut | 971098 | 4 | |
| 35 | Flange screw | 965191 | 2 | |
| 36 | Washer | 191940 | 2 | |
| 37 | Flange lock nut | 971099 | 2 | |
| 38 | Fan guard | 3825490 | 2 | |
| 39 | Flange screw | 947760 | 12 | M8x40mm |
| 40 | Cable tie | 948211 | 8 | |
| 41 | Spacer sleeve | 807425 | 12 | L=24mm |
| 42 | Emblem | 846118 | 1 | |
| 43 | Screw | 941651 | 2 | |
| 44 | Hose clamp | 993979 | 2 | |
| 45 | Rubber hose | 943367 | 1 | L=1700mm |
| 46 | Fan ring | 3827612 | 1 | |
| 47 | Flange screw | 946440 | 14 | |
| 48 | Shut-off cock | 949918 | 1 | (82745) |
| Item | Part Name | Part No. |
| 16 | Bracket 3830866 | 3830866 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1631G, TAD1631GE TWD1630G |
| Application | Radiator and Plastic Fan Radiator and Plastic Fan, SN2160048211- |
