Cooling hose 22994873
Cooling hose 22994873
- Brandsvolvo penta
- Part No.: 22994873
- Availability: 联系我们

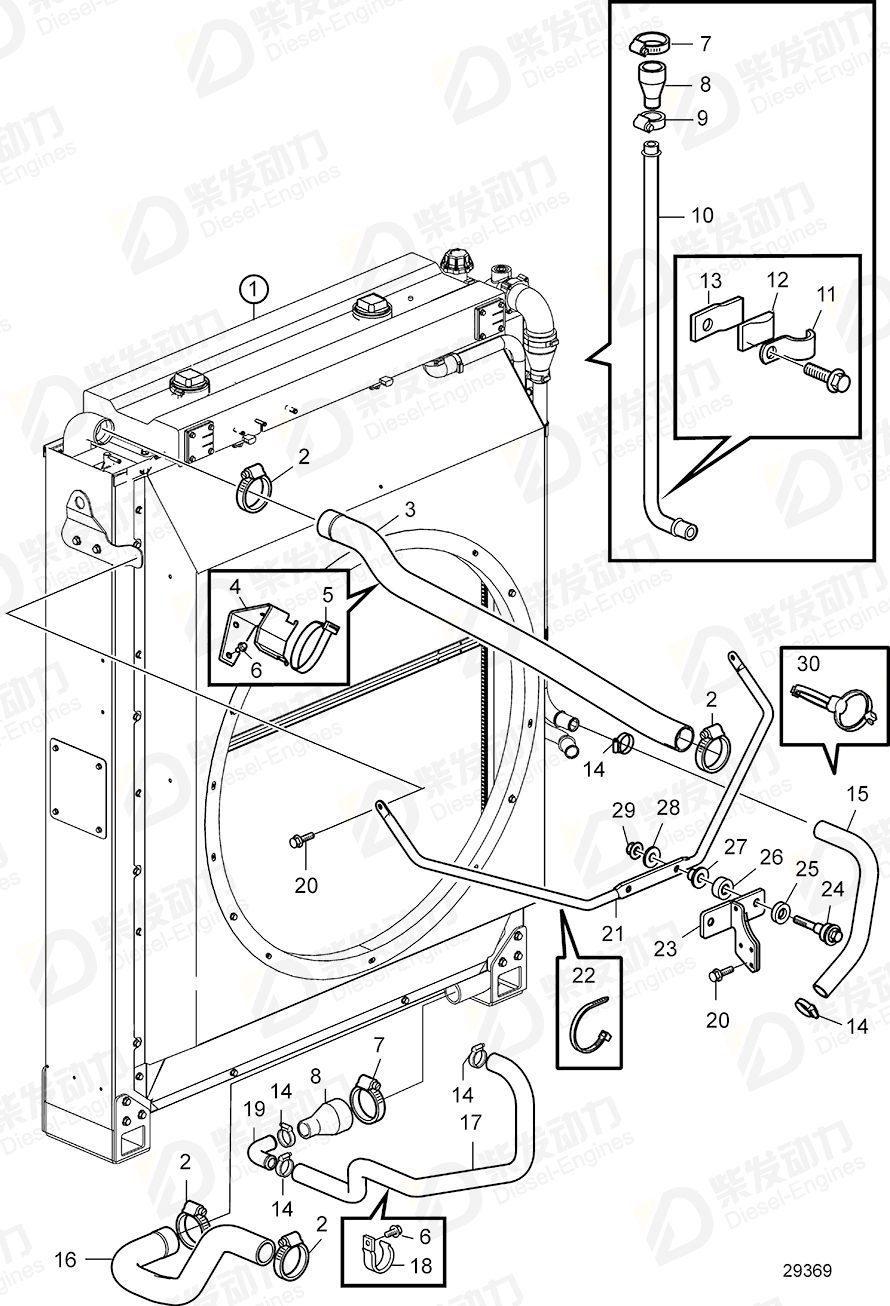

| No. |
Part Name |
Part Number |
Qty |
Description |
| 2 |
Hose clamp |
994565 |
4 |
|
| 3 |
Hose |
22059603 |
1 |
|
| 4 |
Bracket |
22103943 |
1 |
|
| 5 |
Cable tie |
978435 |
1 |
|
| 6 |
Flange screw |
984733 |
3 |
|
| 7 |
Hose clamp |
961673 |
2 |
|
| 8 |
Hose |
22082465 |
2 |
|
| 9 |
Hose clamp |
961669 |
5 |
|
| 10 |
Pipe |
22075301 |
1 |
|
| 11 |
Bracket |
22075206 |
2 |
|
| 13 |
Bracket |
22075205 |
2 |
|
| 14 |
Hose clamp |
994561 |
4 |
|
| 15 |
Hose |
22994145 |
1 |
|
| 16 |
Hose |
22305168 |
1 |
|
| 17 |
Cooling hose |
22994873 |
1 |
|
| 18 |
Hook |
22381815 |
1 |
|
| 19 |
Pipe elbow |
22338245 |
1 |
|
| 20 |
Flange screw |
984753 |
5 |
|
| 21 |
Stay |
22078471 |
1 |
|
| 22 |
Cable tie |
948210 |
4 |
(827353) |
| 23 |
Bracket |
3594409 |
1 |
|
| 24 |
Attaching fitting |
22488137 |
2 |
|
| 25 |
Rubber bushing |
866857 |
2 |
|
| 26 |
Rubber bushing |
866857 |
2 |
|
| 27 |
Spacer sleeve |
22430803 |
2 |
|
| 28 |
Washer |
948556 |
2 |
|
| 29 |
Flange nut |
990942 |
2 |
|
| 30 |
Retainer |
20885496 |
1 |
|
| Item |
Part Name |
Part No. |
| 17 |
Cooling hose 22994873 |
22994873 |
| Details |
| Engine model |
TWD1644GE, TWD1645GE |
| Application |
Radiator and Charge Air Cooler with Connections |
